big capacity load cell, compression force sensor, Hydraulic equipment force sensor, column load cell

Model: MLC406
Category: Compression Load Cell
Load range: 200,300,500,1000ton
Dimension: 259*210mm
Material: alloy steel, stainless steel
Application: big capacity load cell, compression force sensor, Hydraulic equipment force sensor, column load cell

• Capacities: 0-12.5kN up to 0-540kN
• Output: 1.5mV/V nominal
• Environmental Protection: IP66
• Accuracy: <±1.5%/RC typical
• Custom-Sized Versions Available
• Low Height & Compact – To easily fit where space is limited.
• Optimum Performance Guaranteed – Its high-frequency response captures transient measurement fast.
• Long-Life and Low Maintenance – With its rugged stainless steel construction.
• Adapt It For Your Application – With our customisation service.
• Submersible Versions Available – Perfect for marine and offshore applications.

safety limiter load cell, overload load cell, pin load cell

Model: MLC161
Category: Bridge load cell
Load range: 2t,3t,4t
Dimension: Φ55*123mm
Material: alloy steel, stainless steel
Characteristic: safety limiter load cell,overload load cell,pin load cell

big capacity load cell,compression force load cell,tension force load cell,hydraulic equipment force load cell

Model: MLC409
Category: Compression Load Cell
Range: 40t,50t,60t,100t,150t,200t,300t
Dimension: 197*160mm; 240*230/305*326mm; 415*358mm
Material: alloy steel, stainless steel
Characteristic: big capacity load cell,compression force load cell,tension force load cell,hydraulic equipment force load cell

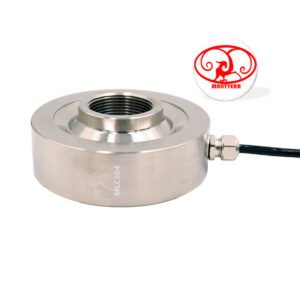

The Model D Donut Shaped Load Cell features a smooth thru-hole design often ideal for applications which require the load structure to pass directly through the cell. Such applications include bolt force measurements, clamping forces, and monitoring overloads. Load ranges as low as 150 grams and as great as 30,000 pounds can be measured within a maximum full scale non-linearity and hysteresis of ±0.5 % F.S., respectively. These models are used in compression applications and are available in multiple hole and frame sizes. For optimum performance, these cells must be mounted between load surfaces which are flat and parallel. The Model D miniature load cell is designed to have a minimum thickness.

Compression force load cell, vehicle scale load cell, railroad scale load cell, hopper scale load cell.

Model: MLC401
Catalogue: Compression load cell
Rated load: 10, 25, 40, 60,100ton
Dimension: 152*184mm
Material: alloy steel, stainless steel
Apply to: compression force load cell, Vehicle scale load cell, railroad scale load cell, hopper scale load cell.
