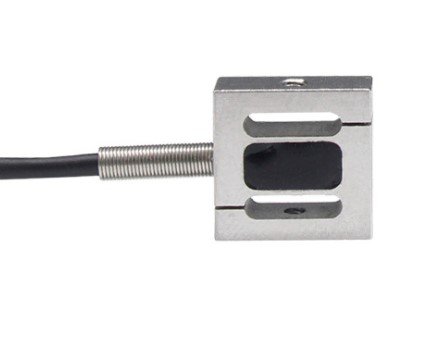

TAS501S mini s type load cell
INTRODUCTION:
HT SENSOR / TAS501S / mini s type load cell
Product Numbers:TAS501S
Product description:
Capacity ：1kg~10kg
Material: stainless steel
Type: Mini S beam load cell for tension and compression measurement.
With safety overload protection
Defend grade: IP66.
Application: . Mainly used for push-pull force meter, button hand sensitivity tester, hot and cold press pressure detection, robot hand grip, automatic lock screw machine, etc.
The PSD-X1 Load Cell is a tailored weighing solution designed for compact, precision-focused applications—ideal for integration into smart shelves, electronic price computing scales, and small-platform electronic scales. Its specialized cantilever-beam structure and lightweight yet durable build make it a reliable choice for retail, logistics, and small-scale industrial scenarios where space efficiency and accurate weight measurement are key.
Tension and compression load cell can bear both tension and pressure, with good output symmetry, high eccentric load resistant, compact structure and complete specifications. Strain gauge load cell can be applied for batching scale, crane scales and other special weighing instruments.
The Model 102 load cells combines both a compact form and high precision to offer a superior tension force transducer. The one-piece S-shaped design achieves a maximum non-linearity of 0.02 % full scale for load ranges from 20 kg to 1000 kg. Additional features include minimal temperature effects on zero and span of 0.002 %/°C and 0.002 %/°C, respectively.
S-type sensor, Aluminum alloy material, Surface anodizing treatment, Silicone rubber seal, Measurement of tensile force, Electronic weighing system
● S-type sensor
● Aluminum alloy material
● Surface anodizing treatment
● Silicone rubber seal
● Measurement of tensile force
● Electronic weighing system
Miniature load cell can bear both tension and compression force, with metal-foil strain gauge, all stainless steel, small size, 1.0±0.2mV/V sensitivity. Miniature tension and compression load cell is used for force tester, riveting machine, laminator and welding machine.
Tension and compression load cell can bear both tension and pressure, with good anti-eccentric load performance, low height, all sealed structure and complete specifications. Miniature load cell with optional capacity 1 kg/ 100kg/ 200 kg/ 300kg/ 500 kg is suited to use in restricted spaces, such as using in vehicle/test instrument/laminator measurement and control.
This type tension load cell is made by stainless steel, high precision, small size. Suitable for force detection equipment such as medical instruments, electronic scales, hopper scales, etc.
High precision, bidirectional bearing, easy to install. It is suitable for measuring and controlling the force value of batching scale, hook scale, electromechanical scale, packaging scale, material mechanics testing machine and other equipment.
The PST-S8 Load Cell is a high-performance weighing component tailored for industrial scenarios—perfect for integration into bench scales, hopper scales, conveyor weighing systems, and force-monitoring setups. Its optimized S-type structure, robust material, and dual-functional design make it a dependable choice for manufacturing, logistics, and processing industries, where accurate weight data directly impacts production quality and operational efficiency.
Compression load cell is special designed for weight measurement, with compact structure, pouring sealant or welding seal, low height, all stainless steel, good anti-eccentric load performance and corrosion-resistant. Load cell can be applied for platform scale, truck scale, rail weighbridge and automated measurement and control areas.
S type micro load cell can bear both tension and pressure, with small size 5*16*19.1mm, good stability, good output symmetry, high accuracy, low temperature drift, compact structure and overload protection. Micro load cell is suited to use in restricted spaces such as manipulator and robot, and specifically used for button tester and force gauge.
Buy affordable tension and compression load cell, threaded inline, support 0-20kN measuring range and repeatability of 0.5% F.S. with 350/700Ω impedance and 10kHz response frequency. The load cells are designed with a stainless steel body for durability, and can withstand an operating voltage of 5-15 V.
