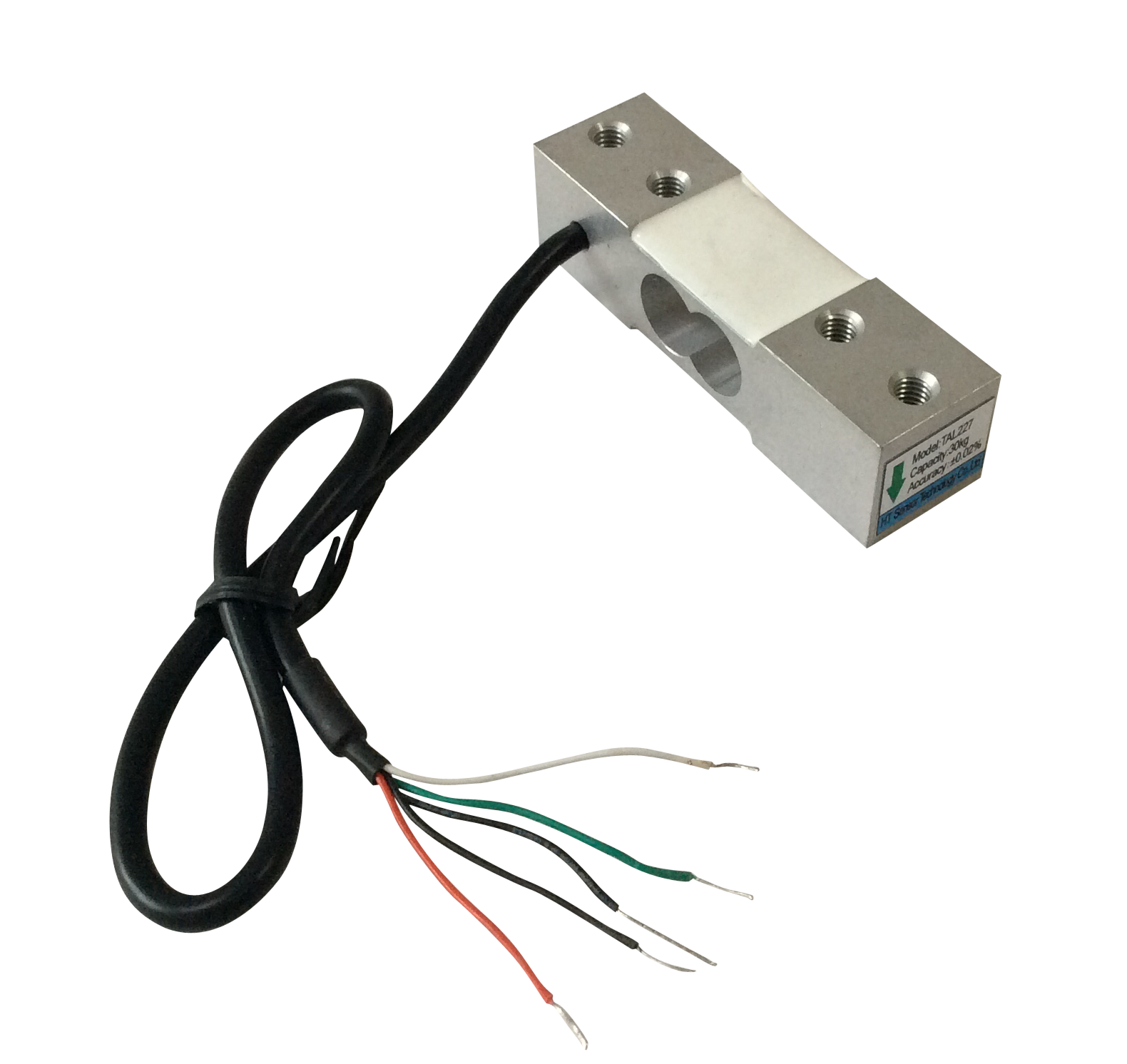

TAL227 Miniature parallel beam load cell
INTRODUCTION:
| Specifications: | ||
| capacity | kg | 5, 8, 10, 15, 20, 30, 35,50 |
| safe overload | %FS | 120 |
| ultimate overload | %FS | 150 |
| rated output | mV/V | 2.0 ± 0.1 |
| excitation voltage | Vdc | 9~ 12 |
| combined error | %FS | ± 0.02 |
| zero balance | %FS | ± 1.0 |
| non-linearity | %FS | ± 0.02 |
| hysteresis | %FS | ± 0.02 |
| repeatability | %FS | ± 0.02 |
| creep | %FS/30min | ± 0.02 |
| input resistance | Ω | 405 ± 10 |
| output resistance | Ω | 350 ± 3 |
| insulation resistance | M Ω | ≥ 5000 @ 100 Vdc |
| operating temperature range | ℃ | -20 ~ +60 |
| compensated temperature range | ℃ | -10 ~ +40 |
| temperature coefficient of SPAN | %FS/10℃ | ± 0.02 |
| temperature coefficient of ZERO | %FS/10℃ | ± 0.03 |

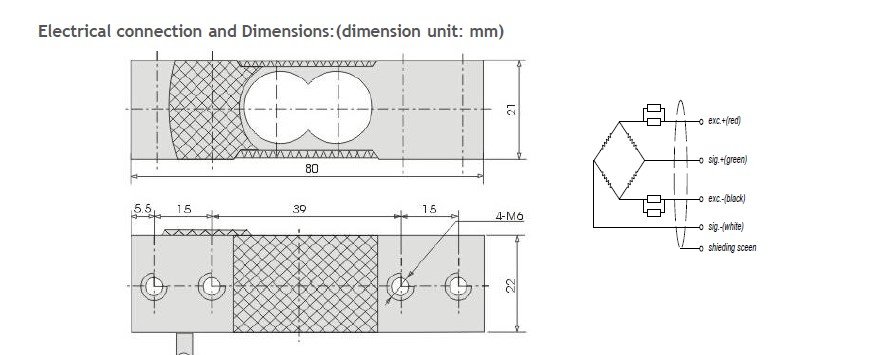

| Electrical connection | cable | 4 core shielded PVC cable, Ø4.5 × 420 mm |
| excitation(+):Red excitation(-):Black signal(+):Green signal(-):White | ||
