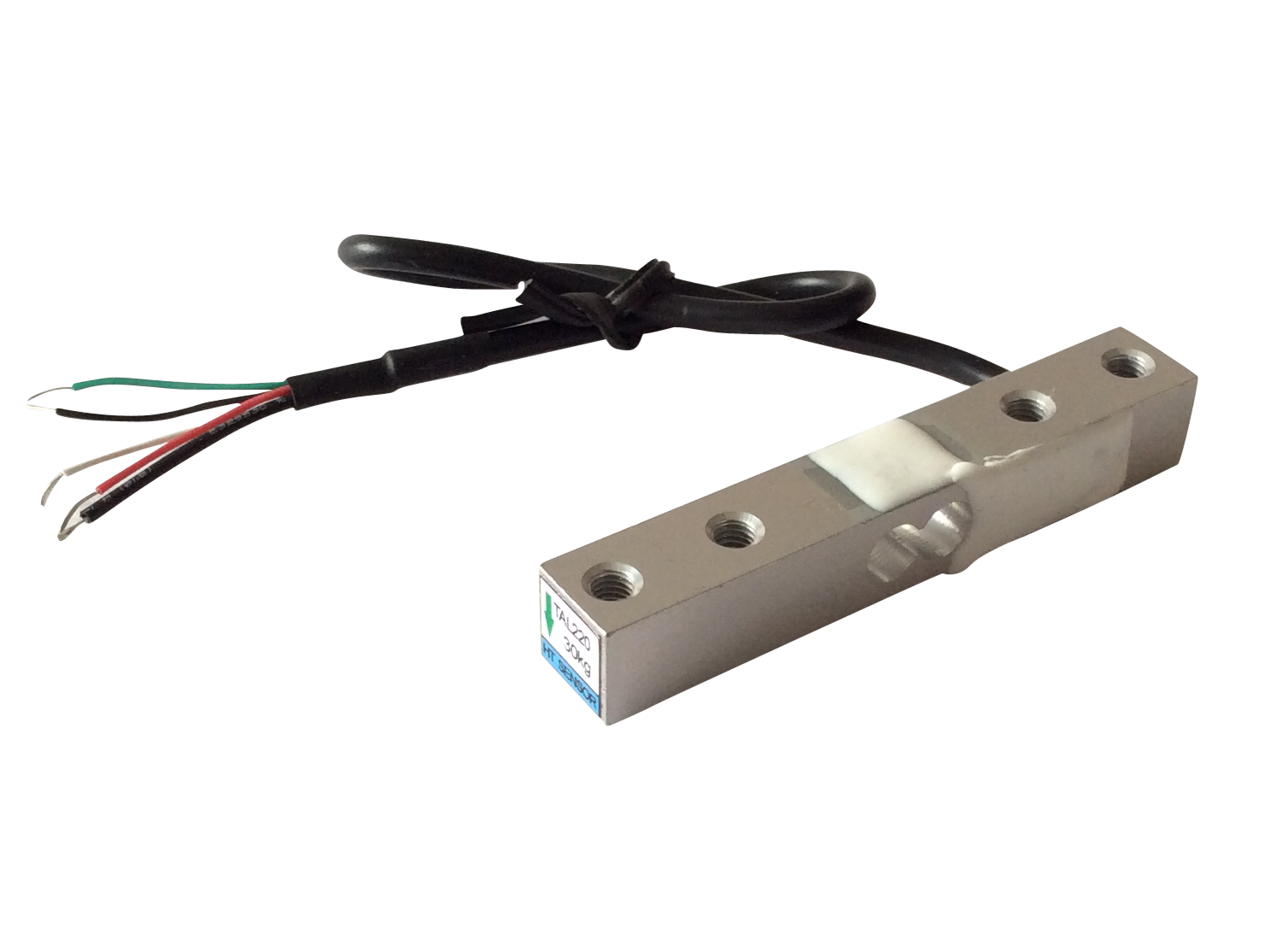

TAL220P Mirco load cell with PVC shielded cable
INTRODUCTION:
HT SENSOR / TAL220P / Mirco load cell with PVC shielded cable
Product description:
Capacity ： 3~50kg
Material: aluminum-alloy
Type: Parallel beam type
Defend grade: IP65
Application : Palm scale, kitchen scale, electronic balance, fishing scale, electronic platform scale and other electronic weighing devices.
-
Описание
- |
Micro Compression Force Sensor
D 20mm*H 6mm
Capacity: 100,200,300,500N
Category: Miniature Button Compression Force Sensor
Micro Compression Force Sensor
D 26mm*H 13mm
Capacity: 50,100,200,500kg 1,2,3T
Category: Miniature Button Compression Force Sensor
Micro Compression Force Sensor
D 108mm*H 44mm
Capacity: 3T
Category: Miniature Button Compression Force Sensor
Micro Compression Force Sensor
D 67mm*H 112mm*M12
Capacity: 2.5T
Category: Miniature Button Compression Force Sensor
Micro Compression Force Sensor
D 60mm*H 25mm
Capacity: 1,2,510,20,30,50,100kN
Category: Miniature Button Compression Force Sensor
Micro Compression Force Sensor
D 20mm*H 5mm
Capacity: 100,200,500,1000N
Category: Miniature Button Compression Force Sensor
Product Numbers:20232171353
Product description:
Capacity ：0~100N
Material: stainless steel
Type: compression and tension type
Defend grade: IP66.
Application: the compression and tension measurement in insertion force tester, riveting machine, welding machine, hot and cold laminating machine, etc., tensile testing equipment, automation equipment, testing field
Product description:Features:
Capacity ： 100~750g
Material: aluminum-alloy
Type: Parallel beam type
Defend grade: IP65
Application : body scales, hand scales, kitchen scales,postal scales, fishing scales, baby body scales and other micro electronic weighing systems.
Micro Button Compression Force Sensor
D 20mm*H 8.5mm
Capacity: 50,100,200,500N 1,2,5,10,20kN
Category: Miniature Button Compression Force Sensor
Miniature load cell can bear both tension and compression force, with metal-foil strain gauge, all stainless steel, small size, 1.0±0.2mV/V sensitivity. Miniature tension and compression load cell is used for force tester, riveting machine, laminator and welding machine.
- Aluminum alloy
- Range: 20,30,50,100,200g
- Size: 70*9*5MM
- OEM&ODM; Customizable
- ISO9001,CE,RoHS
- Application:pocket scale and jewelry scales
Micro Compression Force Sensor
D 40mm*H 20mm
Capacity: 10,20,50,100,200,500,1000kg
Category: Miniature Button Compression Force Sensor
