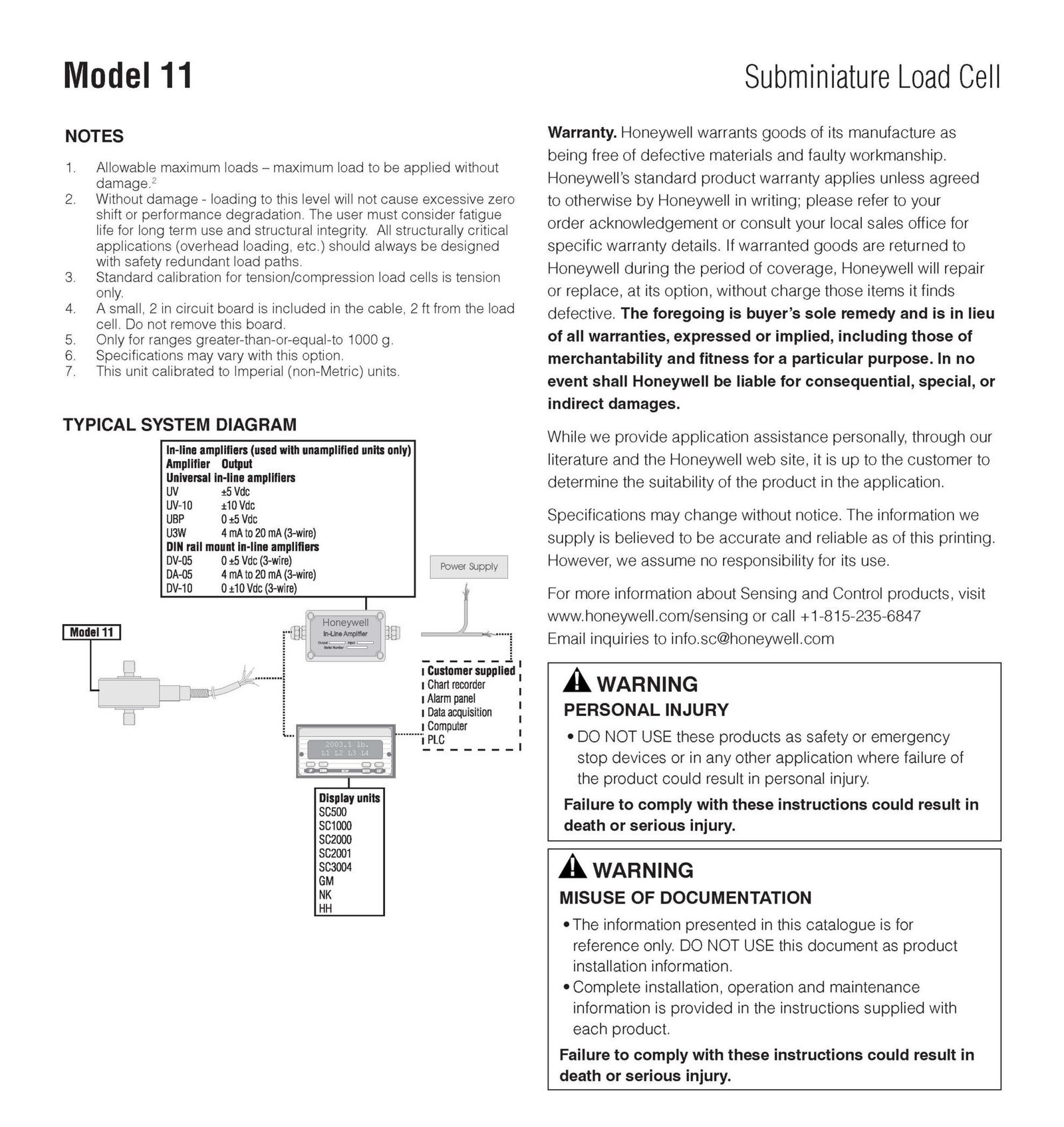

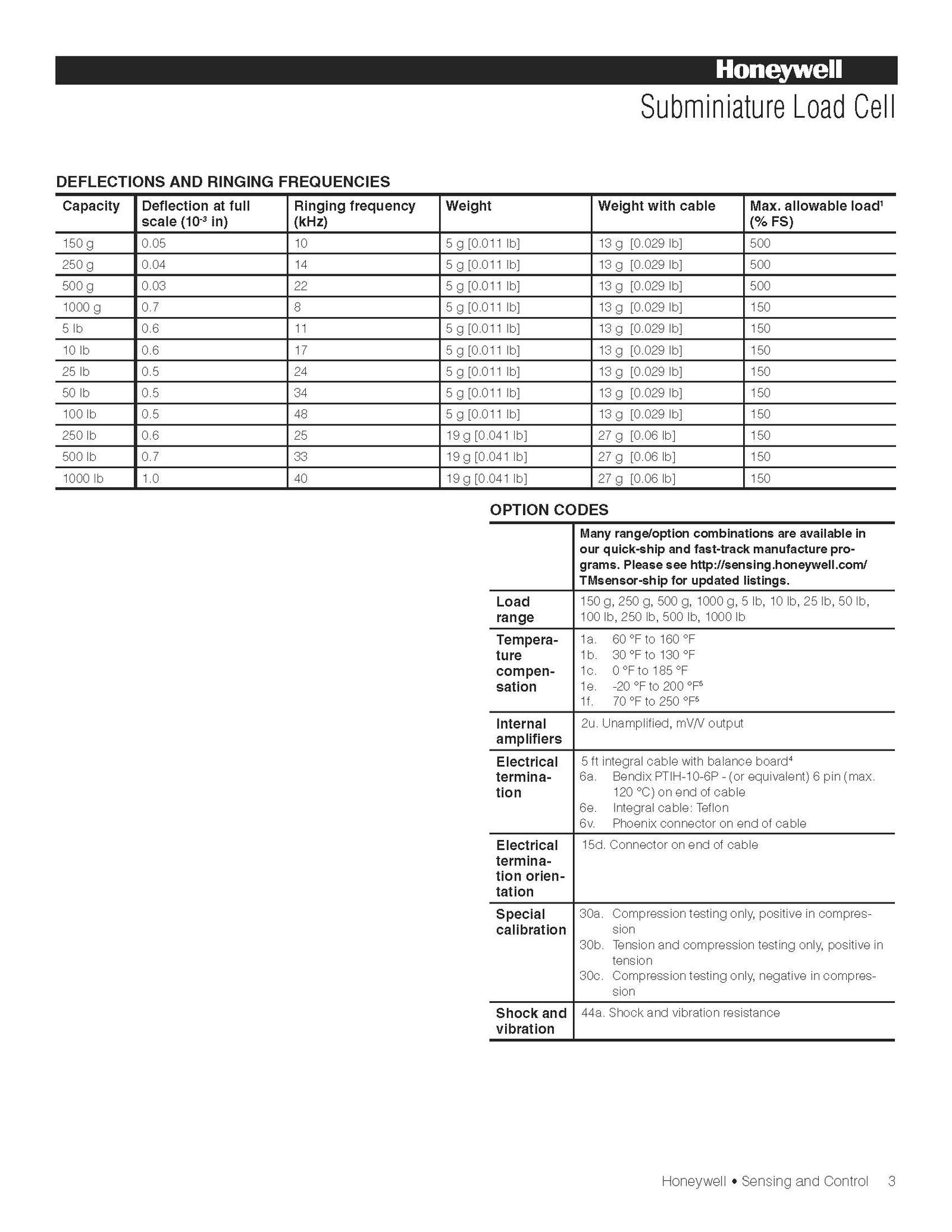

Model 11 (tension/compression) subminiature load cell is designed to measure load ranges from 150 g to 1000 lb. With subminiature dimensions, including diameters from .50 in to 0.75 in and height of 0.38 in, these units are easily incorporated into systems having limited space. The model achieves a non-linearity and hysteresis of 0.5 % full scale respectively and a frequency response of up to 58 kHz. A balance module is included in the load cell’s lead wire cable for zero balance, and should not be removed.
Widely used in auto press assembly, automated assembly, 3C product testing,
New energy product assembly, medical testing, robotics;High dynamic response frequency.
Material: stainless steel, Customizable high temperature performance
Size: Small size, Low height
Used in injection molding and extrusion manufacturing processes;
Automobile pressing, 3C product testing, new energy product assembly,
Medical testing, robotics, and other industrial test, measurement, and control systems.
Model 53 load cells are bonded foil strain gage transducers designed for cost efficient production and testing applications (i.e. press calibration). Engineered compression force measurements up to 50K lb., this model achieves a maximum non-linearity of 0.5 % full scale. Precision gaging techniques and a stainless steel construction provides excellent long-term stability and reliability under severe operating conditions. The Model 53 compression-only load cell has an integral load button machined as part of the load cell. The Model 53 must be mounted on a smooth flat surface for proper operation. Three tapped holes are provided for mounting.
Model 34 precision miniature load cells measure both tension and compression load forces of 1000 g to 1000 lb. These models are our highest accuracy, rugged miniature load cells. Model 34’s welded, stainless steel construction is designed to eliminate or reduce to a minimum, the effects of off-axis loads. (The internal construction assures excellent long-term stability for ranges 1000 grams and above.) A modification permits this model to be completely welded for underwater applications. The Model 34 tension/compression load cell has female threads attachments. High accuracies of 0.15 % to 0.25 % full scale are achieved. Each bonded strain gage unit is built of welded 17-4 PH stainless steel for additional ruggedness. All load cells with ranges from 1 kg to 10 lb have an electrical balance module in the lead wire (approximately 1 in x .087 in thick). This balance module does not have to be the same temperature as the transducer.
Used in auto press assembly, automatic assembly, 3C product testing;New energy product assembly, medical testing, robotics;
Mold assembly and other industrial test, measurement and control systems, etc.
Material: stainless steel
Size: Small size, Large range, Shock proof
Widely used in various industrial weighing systems such as push, pull gauge, hopper scale, etc .;Suitable for harsh environments.
Material: stainless steel
Size: Low height Small amount
Product Numbers:TAS501M
Product description:
Capacity ： 0.5~50kg
Material: alloy steel or stainless steel
Type: S type
Defend grade: IP67.
Application: electronic crane scale, hopper scale,mechanical conversion scale and other electronic weighing devices.
Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robotics, mold assembly And other industrial test, measurement and control systems.
Material: stainless steel
Size: Low height, Small Amount
Эластомер сенсора изготовлен из алюминиевого сплава, герметизирован клеем, поверхность обработана прозрачным анодированием. Степень защиты достигает IP65.
Product description:Features:
Capacity ： 100~750g
Material: aluminum-alloy
Type: Parallel beam type
Defend grade: IP65
Application : body scales, hand scales, kitchen scales,postal scales, fishing scales, baby body scales and other micro electronic weighing systems.
Mainly used in auto press assembly, automated assembly, 3C product testing;New energy product assembly, medical testing, robotics, mold assembly;
And other industrial test, measurement and control systems.
Material: stainless steel
Size: miniature
Used in manufacturing processes such as injection molding and extrusion;
Automobile press assembly, automated assembly, 3C product testing,
New energy product assembly, medical testing, robotics,Mold assembly and other industrial test, measurement and control systems;
Material: stainless steel Customizable high temp.
Size: Ultra-thin size
