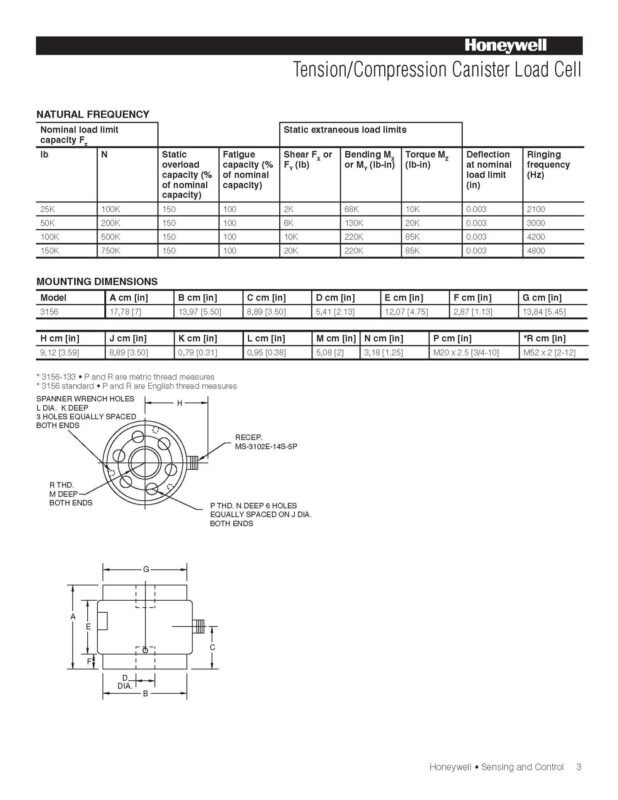

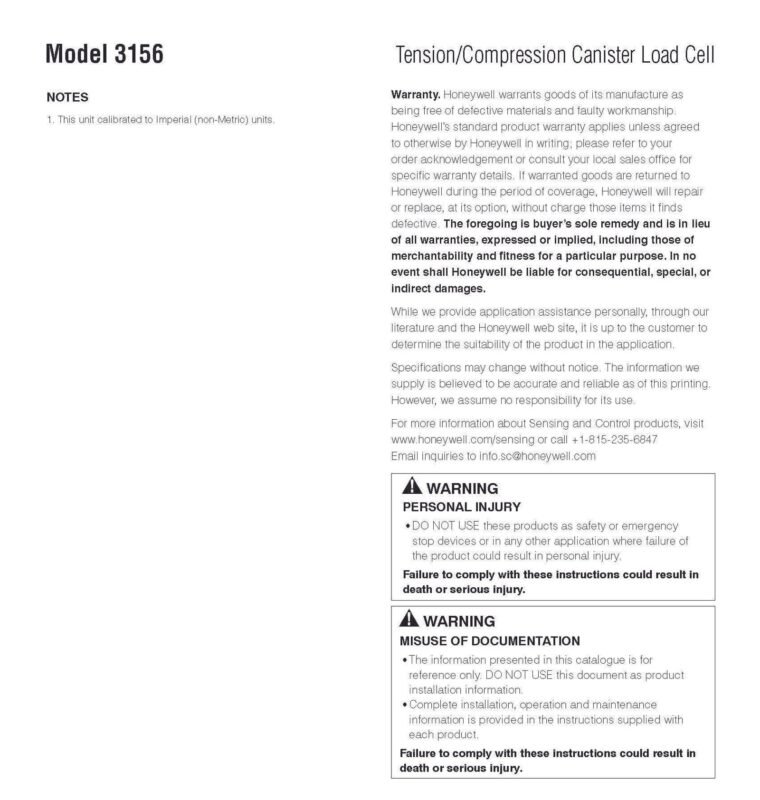

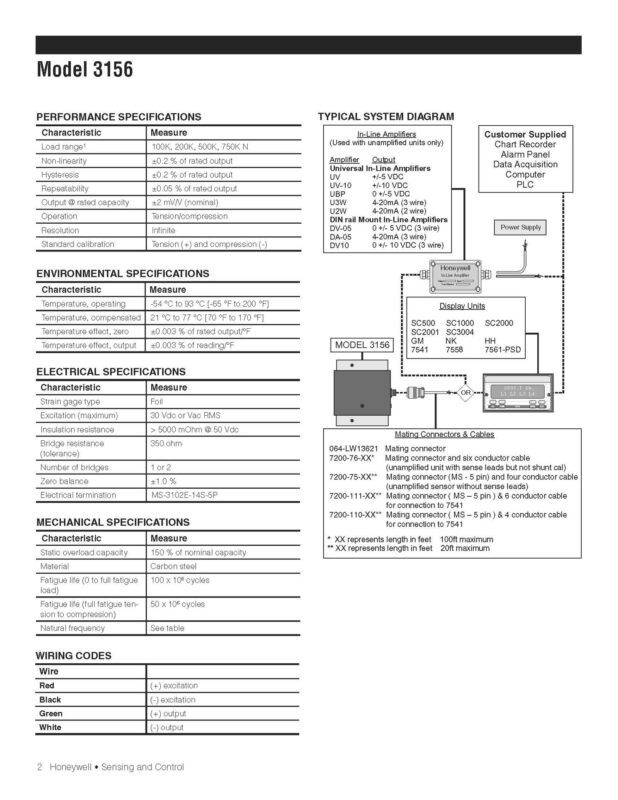

Honeywell / Model 3156 / Tension/Compression Canister Load Cell
Honeywell / Model 3156 / Tension/Compression Canister Load Cell

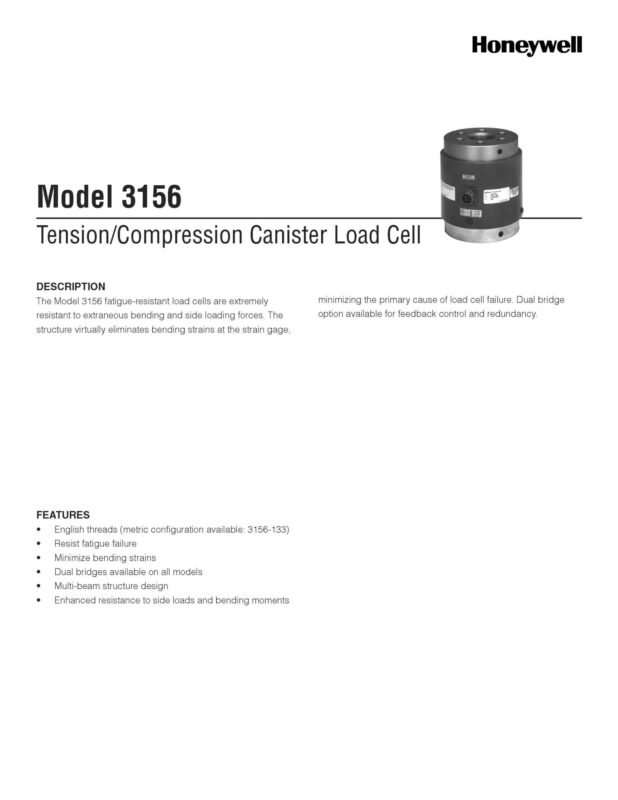

The Model 3156 fatigue-resistant load cells are extremely resistant to extraneous bending and side loading forces. The structure virtually eliminates bending strains at the strain gage, minimizing the primary cause of load cell failure. Dual bridge option available for feedback control and redundancy.
100-250t Spoke Type Load Cell FA120D belongs to FA120 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, FA120D can be used to measure load 100t,150t,200t and 250t capacity, its Input impedance range is 780±20Ω and its Output impedance range is 700±10Ω, its Zero Balance range is ±1%F.S..
50kg The Creep ≤0.05%F.S. Stainless Steel Spoke Type Load Cell FA401 belongs to FA411 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA401 can be used to measure load 50kg capacity, its Creep(30min) ≤0.05%F.S., its Non-linearity and Repeatability both ≤0.05%F.S., and its Hysteresis ≤0.05%F.S..
| Model Number: | BHG | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 3t,5t,10t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.3%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ultimate Overload: | 200%F.S |
50,100,200,500,1000,2000kg Or Customized Tension Compression Force Sensor FA130B belongs to FA130 which belongs to Tension Compression Force Sensor, FA130B can be used to measure compression force and tension force 50kg,100kg,200kg,500kg,1000kg and 2000kg or customized capacity, its Zero Balance range is ±0.5mV/V.
5-100kN Stainless Steel Tension Compression Force Sensor FA411 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA411 can be used to measure tension and compression force 5kN,10kN,20kN,50kN and 100kN capacity, its Rated output range is 1.0±10%mV/V, its Creep(30min),Non-linearity and Hysteresis all ≤0.2%F.S., its Repeatability ≤0.1%F.S..
1,3,5,10,30,50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000N Or Customized Tension Compression Force Sensor FA904AB belongs to FA904 which belongs to Tension Compression Force Sensor category of our brand FIBOS FA9-Series, FA904AB can be used to measure tension force ranges from 1N,3N,5N,10N,30N,50N,100N,300N,500N,1000N,3000N,5000N,10000N,30000N,50000N,100000N up to 300000N or customized capacity.
10-1000N Stainless Steel S Beam Load Cell FA302 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA302 can be used to measure load ranges from 10N,20N,50N,100N,200N,500N up to 1000N capacity, its Cable size is ⌀2x3000mm, its Weight is 0.1kg and Material is Stainless steel, its range of Input impedance and Output impedance are both 650/350±5Ω.
5-200N Stainless Steel S Beam Load Cell FA301 is a model of our brand FIBOS FA3-Series, it belongs to S Beam Load Cell category, FA301 can be used to measure load 5N,10N,20N,50N,100N and 200N capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀2x3000mm.
10,20,50,100,200kg Or Customized Tension Compression Force Sensor FA401A is a model of Tension Compression Force Sensor, it belongs to FA401 in our brand FIBOS FA4-Series, it can be used to measure load 10kg, 20kg, 50kg, 100kg and 200kg or customized capacity, its Creep(30min), Non-linearity, Hysteresis and Repeatability all ≤0.1%F.S. or can be customized.
20-2000N Stainless Steel Tension Compression Force Sensor FA404 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA404 can be used to measure compression and tension force 20N,50N,100N,200N,500N,1000N and 2000N capacity, its Rated output range is 2.0±1%mV/V, and its Zero Balance range is ±2%F.S..
25-500kg 0.75-10t Alloy Steel S Beam Load Cell FA307 is from S Beam Load Cell category of our brand FIBOS FA3-Series, FA307 can be used to measure load ranges from 25kg up to 500kg and ranges from 0.75t up to 10t capacity, its Non-linearity,Hysteresis and Repeatability all ≤0.03%F.S., its Creep(30min) ≤0.024%F.S..
0.1-30t ≤0.05%F.S. Alloy Steel Miniature Industrial Automation Applied Spoke Type Load Cell FA120B is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA120B can be used to measure load 0.1t,0.2t,1t,2t,3t,5t,10t,15t,20t and 30t capacity, its Non-linearity ≤0.05%F.S. and its Repeatability ≤0.03%F.S..
