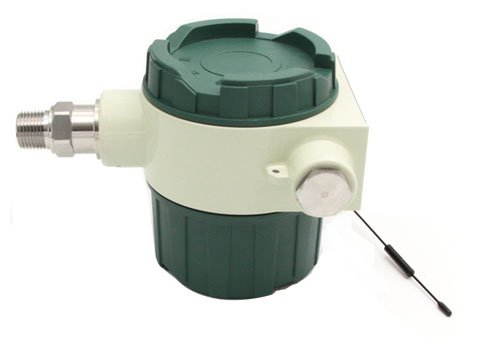

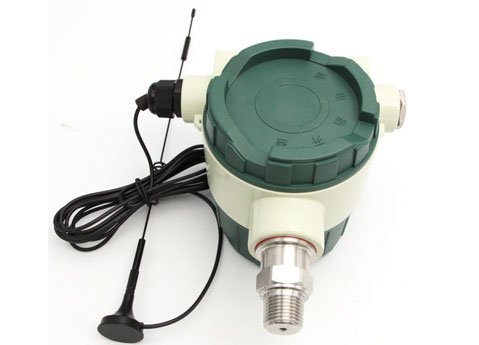

GPT240 Smart Pressure Transmitter
GPT246 wireless pressure gauge is an intelligent instrument with wireless communication function & SUPER LOW power consumption.
♦with a advanced industrial MCU and a high quality pressure sensor, it integrates the GPRS network to realize the wireless transmission between filed equipment and server. This gauge will report the pressure data regularly based on the set interval, and the customer could track all real-time and historical records remotely on WEB pages.
♦Users could log in related URL by network-connected PC or Mobile to check data and do statistics and analysis for the data, then forming a report and data graph, which is featured as visual, accurate and high-efficient.
Application
| Range | 0~10KPa…..100MPa |
| Accuracy | 0.5%FS |
| Stability | 0.5%FS/year |
| Over pressure | 150%FS |
| Output signal | GPRS wireless signal transmission |
| Operation temperature | -20~70C |
| Display | 7 digit segment LCD display, 5 digit readings |
| Process connection | M20*1.5 (customer request) |
| Electric connection | 5-pin aviation plug |
| power adapter(optional) | Input:100~240VAC 50/60Hz, output: 5V2ADC |
Successfuel Case
