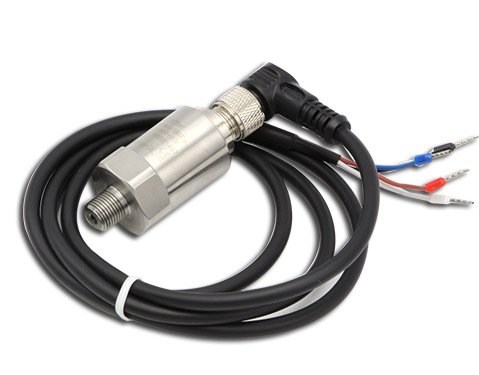

GPT230 Ceramic Pressure Sensor
GPT230 series ceramic pressure sensor, is a large, low cost OEM, civil, industrial use of high quality, high reliability products. Small size, light weight, compact structure. Widely used in compressor, automobile, air conditioning and other field pressure measurement. The product is made of high quality stainless steel structure, the core and the pressure sensor chips are imported from Germany, the use of digital calibration and compensation technology, and passed the safety certification and CE certification.
Product details
ItemSpecificationPressure range0~2bar…600barOverload pressure1.5 times of rated pressure (1.5X)Ultimate pressure3 times of rated pressure (3X)Accuracy±0.5%FSm, 1%FS (default type)Stability
Typical 0.5%FS
Max. 1%FS
Ambient temperature
-40～100℃
Compensated temperature-10～80℃MediumAll corrosive mediums that could be used with 1Cr18Ni9Ti and ceramicOutputTwo wiresThree wires4-20mA1-5V/0-5V0.5~4.5V0~10VPower supply12-36V12V/24V5V12V/24VInsulation＞100MΩ@50VElectric strength500V@60 secondVibration/ shock10g/5~2000HZ，axes X/Y/Z20g sine 11msDurability2×106 pressure period @25℃Electric connectionPackard connector, Hirschmann connector, aviation plug, fixed cable sleeve, water proof cable connectionPressure connectorG1/2, G1/4, NPT1/4, 7/16-20UNF, M20×1.5Pressure typeGauge pressure, absolute pressureResponding time10msCertificateExplosion-proof type E /RoHS / CEElectromagnetic compatibility
Electromagnetic radiation: EN50081-1/-2
Electromagnetic sensitivity: EN50082-2
