GALOCE / GSS415 / Спицевой тензодатчик на сжатие (Spoke Type Compression Weight Sensor)

High stability and reliability.

Applicable to: measurement and control system of testing machine and other force value.

1.Capacity：1~470t;

2.Material：alloy steel & stainless steel;

3.Protection class：IP68;

4.Application：Axel-load scale，hopper scale，warehouse scale，silo scale.

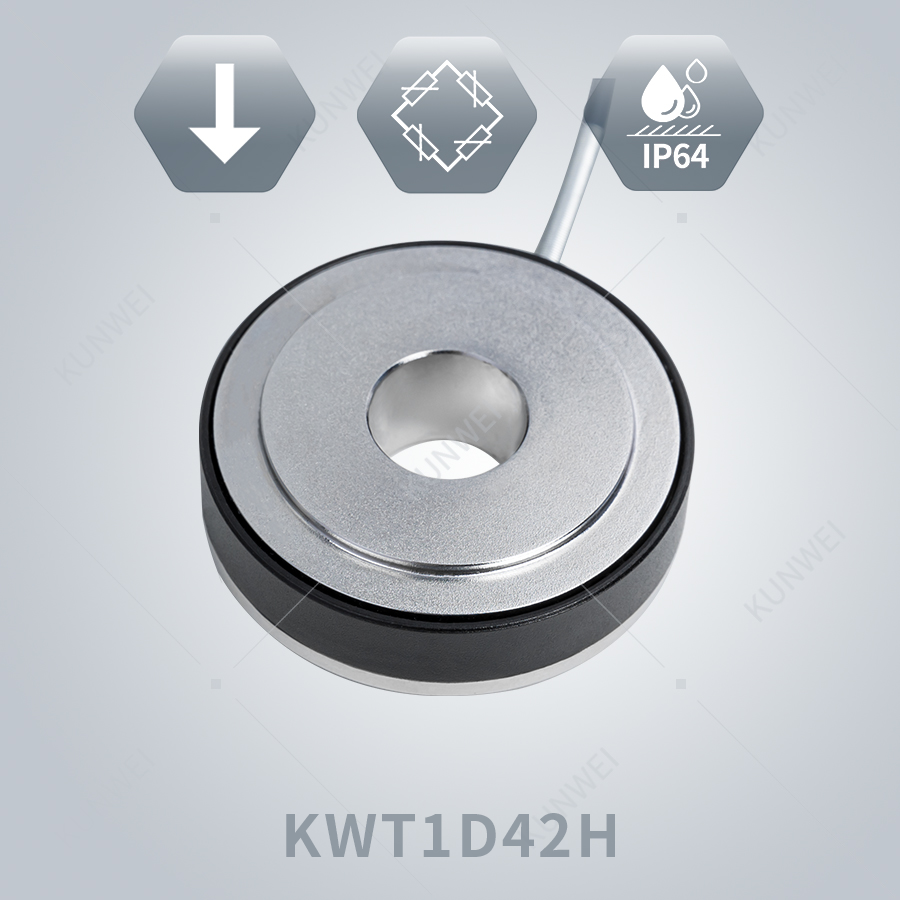

KWT1D42H is a large range column though-hole force sensor. The large load structure can pass through KWT1D42H, the max diameter of which is 12.7mm.

1.Alloy steel;

2.Low height, good rigidity, high precision, load-deflection resistance is strong;

3.Suitable for electronic belt scale, hopper scale, storage scale, tank scales, mechanics of materials testing machine, etc. weighing devices.

1.Made of stainless steel;

2. Suitable for proportioning control system, detecting equipment and other weighing devices.

1. Made of alloy steel or stainless steel

2. Suitable for belt weigher, hopper scale and other weighing devices

3. Good steel performance and high accuracy

The ZMWMC is constructed from stainless steel and protected from moisture with an epoxy bonded cover. ZMWMC is configured for both of compression and tension force measurement. Full-bridge, bonded foil strain gauge technology provides excellent long-term stability and ensures high performance even in applications requiring in excess of 1 million load cycles.

Stainless steel

Widely used in industrial grinding and polishing, automobile pressing;Automated assembly, 3C product testing, new energy product assembly;
Medical testing, robotics, etc., anti-vibration, high dynamic response frequency.

Material: stainless steel
Size: Low height, Small amount

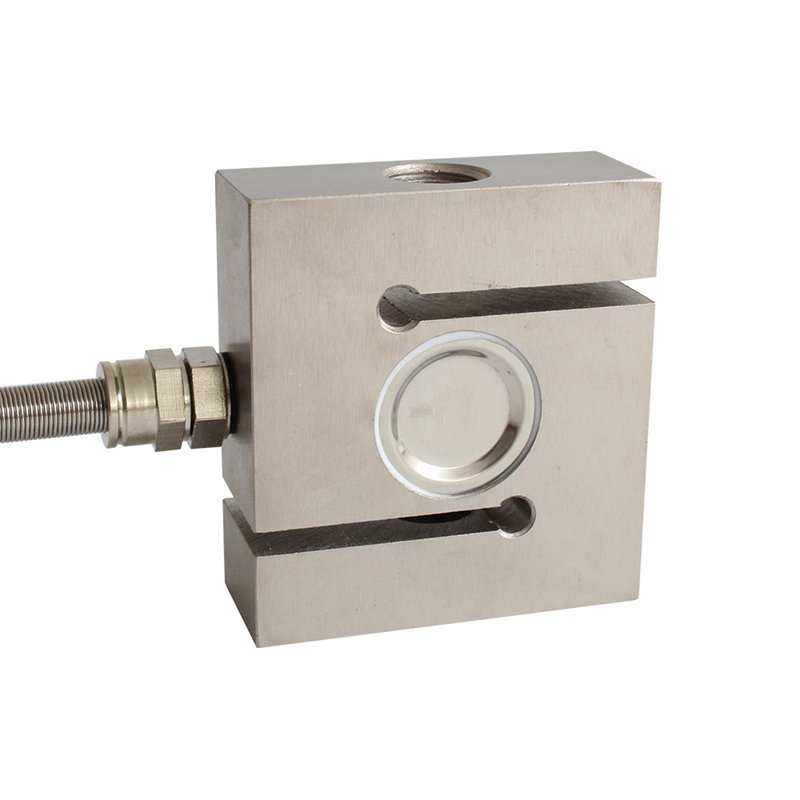

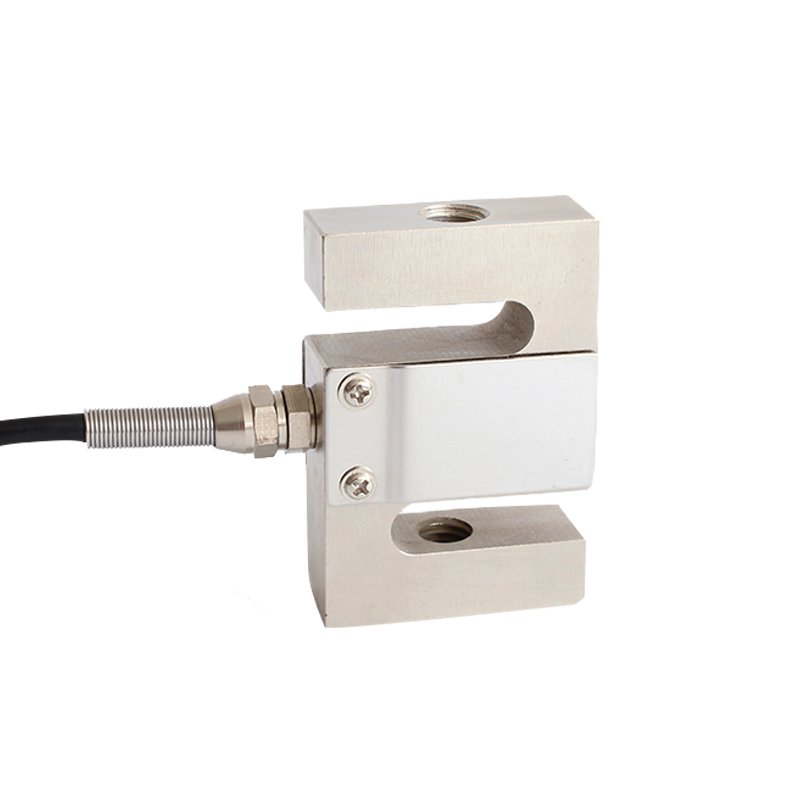

1、S-shape is a common shape of force sensor, which is characterized by simple structure, light weight, convenient installation, high precision, good linearity and high stability. This kind of sensor is usually used to measure light load and medium load.
2、S-Type load cells that receive tension or compression forces. Applications include tank weighing, hoppers, suspended loads and truck scales. S-Type load cells provide superior performance in a compact, versatile package.
3、it can be used in mechanical and electrical integration scales, crane scales, hopper scales and various special application scales and industrial measurement systems.

The ZMMC3 is through-hole force sensor which is available in a wide range of standard capacities from 50N through to 1000N. Zhimin offers custom solutions which help you design your unique load cell application. For wahser type load cell, we need to know your required diameter and through hole size. In order to reduce your cost, zhimin can produce sensors according to your current products. Our aim is to provide best solutions for your precious clients.

Stainless steel construction
