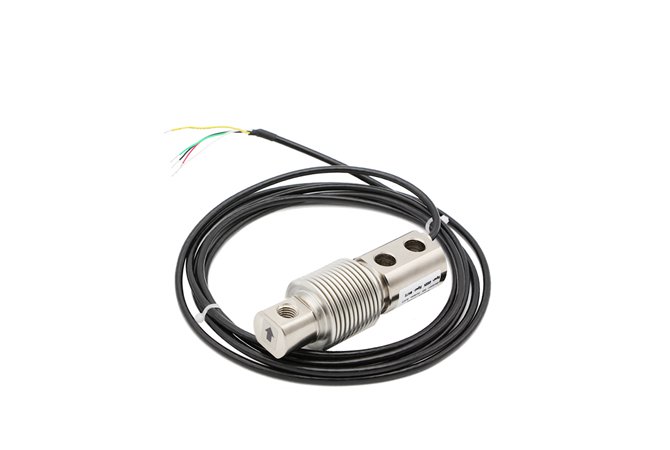

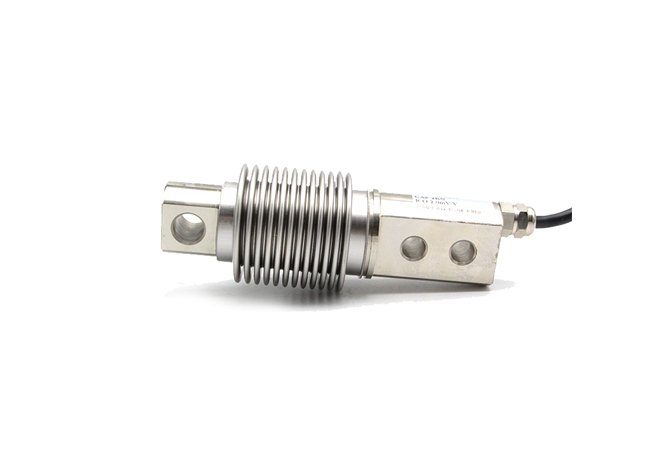

GSB211B Single ended bending beam load cell
FEATURES
- Single ended bending beam type, the load body and bellows are made of stainless steel, welded and sealed, and pressure-bearing
- Suitable for belt scales, electronic platform scales, hopper scales and other electronic weighing equipment.
SPECIFICATION
| Rated Load | 5, 10, 20, 30, 50, 100, 200,300,500(kg) | ||
| Accuracy Class | C3 | Compensated Temp.Range | -10～+40℃ |
| Comprehensive Error | ±0.02%F.S | Operating Temp.Range | — 35～＋70℃ |
| Rated Output | 2.0±0.002mV/V | Excitation,Recommended | 5～12VDC |
| Zero Output | ±1.0%F.S | Maximum,Recommended | 3～15VDC |
| Linearity Error | ±0.02%F.S | Safe Overload | 150%F.S |
| Repeatability Error | ±0.02%F.S | Ultimate Overload | 200%F.S |
| Hysteresis Error | ±0.02%F.S | Insulation Resistance | ≧5000MΩ(50VDC) |
| Creep | ±0.016%F.S/30min | Cable | PU 4-Wire Shielded Cable |
| Input Resistance | 460±60Ω | Cable Length | Φ4.8mm×3m |
| Output Resistance | 350±3.5Ω | Ingress Protection | IP68 |
| Temp.Effect on Output | ±0.011%F.S/10℃ |
Wiring Definitions |
Exc+：Red Exc-：Black |
| Temp.Effect on Zero | ±0.015%F.S/10℃ | Sig+：Green Sig-：White | |
