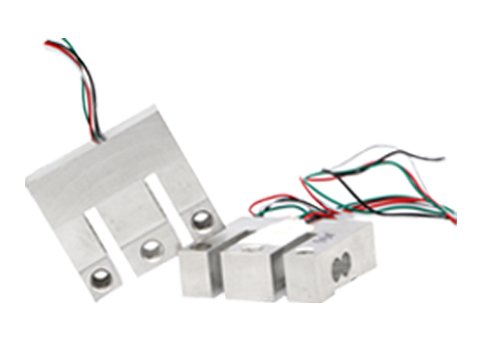

GPB204 low profile infant planar beam load cell
What is specifications of GPB204 Load cell?
| Specifications: | |
| Range (KG): 50, 75, 100, 150 | Input resistance (Ω): 1130±20 |
| Accuracy: S | Output resistance (Ω): 1000±10 |
| Nonlinearity error (%F.S):±0.05 | Insulation resistance (MΩ): ≥2000(50VDC) |
| Repeatability error (%F.S):±0.05 | Temp. effect on span (%F.S/10℃): ±0.05 |
| Hysteresis error (%F.S):±0.05 | Temp. effect on zero (%F.S/10℃): ±2 |
| Rated output (mV/ V): 1.0±10% | Operation temp. range (℃): -10~+40 |
| Creep (%F.S/2min): ±0.05 | Excitation voltage (V): ≤10 (DC) |
| Zero balance (%F.S): ±0.1 | Safe overload (%F.S): 150 |
What is dimension of GPB204 Load cell?
| Range | A | B | D | W | L |
| 50kg | Φ3.2 | M3 | 12 | 30 | 33 |
| 75kg | Φ6.2 | M6 | 17 | 44 | 40 |
| 100kg | M6 | M6 | 17 | 44 | 40 |
| 150kg | Φ6.2 | M6 | 17 | 44 | 40 |
