GALOCE / GPB200 / Низкопрофильный плоский тензодатчик, 75 кг, 150 кг

이 제품은 낮은 높이와 높은 안정성, 정밀성을 갖춘 구조로 설계되었으며, 다양한 계량 및 자동화 테스트 장비에 폭넓게 활용됩니다.

LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.

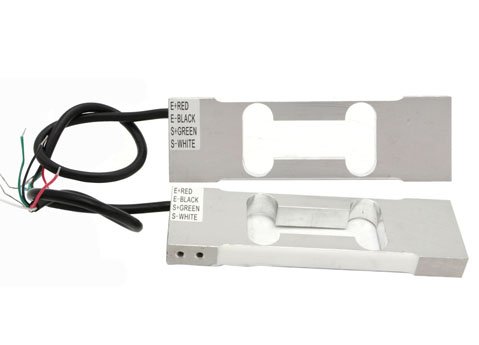

Model LAE-C2 load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAE-C2 load cells can be used to measure loads range from 5kg to 200kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
LAE-C2 load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales,bench scales,platform scales and packing machinerys.

LCT Planar beamload cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. They are designed for those who need to produce equipment with minimal overall height. They are usually implemented in sets of three or four per scale.
Advantages of LCT Planar beam load cells:
Most planar beams are not corner-adjusted. Using 3 or 4 Planar beam load cells is an alternative to a single point load cell configuration with the additional benefit of a practical unlimited platform size.
Model LAA-W7 load cells are designed to this “Planar beam”type and manufactured from high quality aluminum alloy of aviation standard. LAA-W7 load cells can be used to measure loads range from 75kg to 300kg with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output)
LAA-W7 load cells are mainly used for retail scales, medical scales,personal scales,bathroom scales,airport baggage scales,postal scales and any weighing environment where space is a limiting factor.

Widely used in electronic scales, counting scales, electronic balances and industrial weighing systems.

Material: Aluminum alloy
definition: High precision Strong anti-eccentricity

LCT Planar beamload cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. They are designed for those who need to produce equipment with minimal overall height. They are usually implemented in sets of three or four per scale.
Advantages of LCT Planar beam load cells:
Most planar beams are not corner-adjusted. Using 3 or 4 Planar beam load cells is an alternative to a single point load cell configuration with the additional benefit of a practical unlimited platform size.
Model LAA-W7 load cells are designed to this “Planar beam”type and manufactured from high quality aluminum alloy of aviation standard. LAA-W7 load cells can be used to measure loads range from 75kg to 300kg with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output)
LAA-W7 load cells are mainly used for retail scales, medical scales,personal scales,bathroom scales,airport baggage scales,postal scales and any weighing environment where space is a limiting factor.

It is suitable for measuring force in various small spaces, and is widely used in industrial R & D and other fields of measurement and control;
Can replace traditional scales and platform scale adjustment feet;
Patent products, counterfeiting will be investigated.

Material: stainless steel, High-quality alloy steel
definition: Low height Easy to install

The ZMPE single point load cell is a medium capacity weight sensor ideal for bench scales, platform scales and medical scales. The ZMPE is high reproducibility of the measuring signals and extremely low interference by transverse loads of the measured values.

• Экстремально прочная и герметичная конструкция, подходит для различных приложений даже в суровых условиях

• Класс точности: C3MR, C6MR, C3MI8 с высоким значением Y (опционально до 25 000) для точных измерений

• Материал: нержавеющая сталь, степень защиты IP68 / IP69K

• Особенности конструкции: совместимость с монтажным пространством (footprint) SP4M для гибкой конструкции весов

• НОВОЕ: версия измерительной цепи LCMC – выбор опций: смарт (IO-Link), цифровая (CANopen или RS-485), аналоговая (4–20 mA / 0–10 V)

Widely used in process weighing systems in industries such as electronic scales, electronic balance, etc.

Material: aluminum alloy High overall sensitivity
definition: Good stability Four corner deviations have been compensated

• Range: 50,60,80,100,150,200,250,300,350,500kg
• Material: aluminum alloy
• Protection class: IP65
• Application: electronic counting scales, platform scales and other small size electronic weighing devices

A882 Load Cell are well-crafted, beautiful in appearance, and have both excellent performance and excellent quality. Once they are on the market, they have quickly been loved and sought after by the majority of customers.

Description

1.The products are made of alloy aluminum;

2.Hermetically sealed with glue to IP65.surface anodized and anti-corrosion.

3.integral structure and easy installation;

4.Suitable for electronic counting scales,platform scales and other small size electronic weighing devices.
