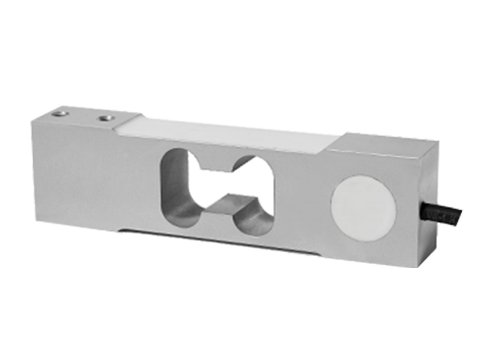

1. Aluminum alloy structure, C3 accuracy.
2. Silicone rubber seal, surface oxidation treatment, good anti-corrosion performance.
3.Suitable for electronic platform scale, electronic counting scale and weighing system with resolution of 15,000 degrees.
| Rated capacity | 3,5,8,10,15,20,50,75,100（kg） |
| Accuracy class | C3 |
| Comprehensive error | 0.02%FS |
| Sensitivity | 2.0±0.1mV/V |
| Zero balance | 2%FS |
| Input resistance | 410±10Ω |
| Output resistance | 350±2Ω |
| Insulation resistance | ≥3GΩ |
| Use temp | range-20 — +60℃ |
| Excitation voltage | 15V（AC/DC） |
| Safe overload | 120%FS |
| Ultimate overload | 150%FS |
| Ingress protection | IP65 |
It is suitable for measuring force in various small spaces, and is widely used in industrial R & D and other fields of measurement and control;
Can replace traditional scales and platform scale adjustment feet;
Patent products, counterfeiting will be investigated.
Material: stainless steel, High-quality alloy steel
definition: Low height Easy to install
A801 Load Cell are well-crafted, beautiful in appearance, and have both excellent performance and excellent quality. Once they are on the market, they have quickly been loved and sought after by the majority of customers.
The ZMPE single point load cell is a medium capacity weight sensor ideal for bench scales, platform scales and medical scales. The ZMPE is high reproducibility of the measuring signals and extremely low interference by transverse loads of the measured values.
A882 Load Cell are well-crafted, beautiful in appearance, and have both excellent performance and excellent quality. Once they are on the market, they have quickly been loved and sought after by the majority of customers.
1.The products are made of alloy aluminum;
2.Hermetically sealed with glue to IP65.surface anodized and anti-corrosion.
3.integral structure and easy installation;
4.Suitable for electronic counting scales,platform scales and other small size electronic weighing devices.
1.The products are made of alloy aluminum;
2.Hermetically sealed with glue to IP65.surface anodized and anti-corrosion.
3.integral structure and easy installation;
4.Suitable for electronic counting scales,platform scales and other small size electronic weighing devices.
이 제품은 낮은 높이와 높은 안정성, 정밀성을 갖춘 구조로 설계되었으며, 다양한 계량 및 자동화 테스트 장비에 폭넓게 활용됩니다.
A805 Load Cell are well-crafted, beautiful in appearance, and have both excellent performance and excellent quality. Once they are on the market, they have quickly been loved and sought after by the majority of customers.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAE-C2 load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAE-C2 load cells can be used to measure loads range from 5kg to 200kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
LAE-C2 load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales,bench scales,platform scales and packing machinerys.
1.Aluminum alloy;
2.Very low profile;
3.Matched output;
4.Mainly used for low profile infant and adult medical scales,low profile platform scales,personal scales,airport baggage scales,postal scales etc.
이 제품은 낮은 높이와 높은 안정성, 정밀성을 갖춘 구조로 설계되었으며, 다양한 계량 및 자동화 테스트 장비에 폭넓게 활용됩니다.
