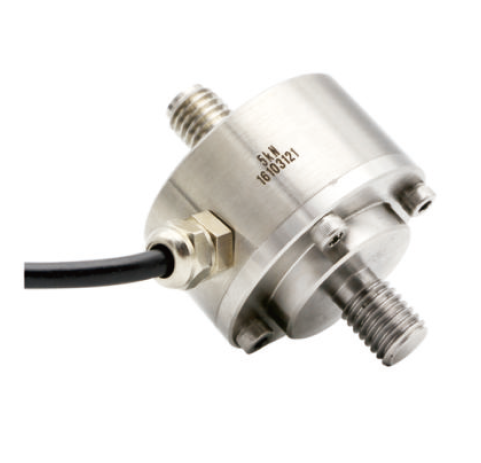

GML668A Tension Compression Force Sensor
FEATURES

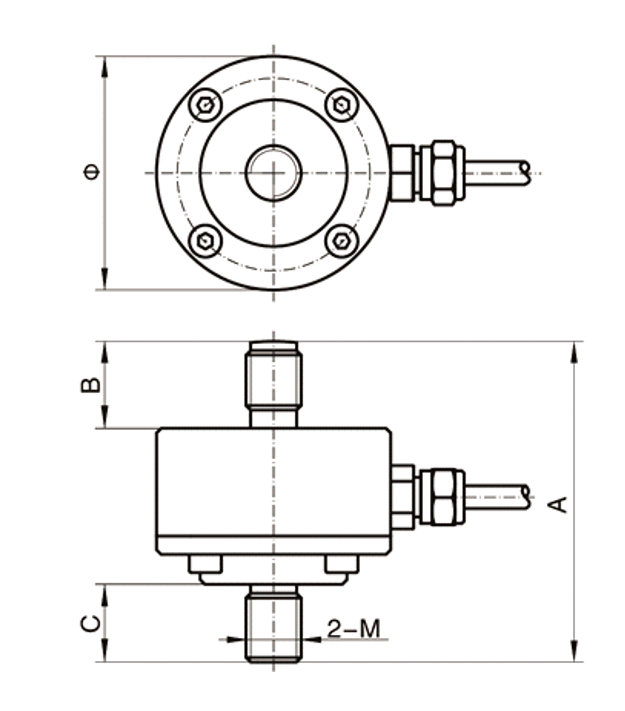

| Rated Load | Size(mm) | ||||
| kN | A | B | C | <ti | M |
| 0.1-0.5 | 37.5 | 12 | 11.5 | 26 | M5 |
| 0.5-10 | 70 | 19 | 17 | 51 | M12 |
| 20 | 75 | 19 | 17 | 51 | M12 |
- Stainless steel, two-way tension and compression ;
- The product is mainly suitable for all kinds of batchings scale, hopper scale, hook scale and other electronic force measuring and weighing equipment.
PARAMETERS
| Rated Load | 0.1, 0.2, 0.3, 0.5, 1, 2, 5, 10, 20(kN) | ||
| Comprehensive Error | ±0.3%F.S | Operation Temp.Range | -20~+65″C |
| Rated Output | 1.0~2.0mV/V | Excitation, Recommended | 9~12VDC |
| Zero Balance | ±1%F.S | Safe Overload | 150%F.S |
| Creep | ±0.1%F.S/30min | Ultimate Overload | 200%F.S |
| Input Resistance | 380±100 | Insulation Resistance | ≥5000MO(1 00VDC) |
| Output Resistance | 350±30 | Ingress Protection | IP66 |
| Temp. Effect on Span | ±0.05% F.S/10″C |
Wiring Code |
Exe+: Red Exe- : Black |
| Temp. Effect on Zero | ±0.05% F.S/10″C | Sig+ : Green Sig- : White | |
