Models

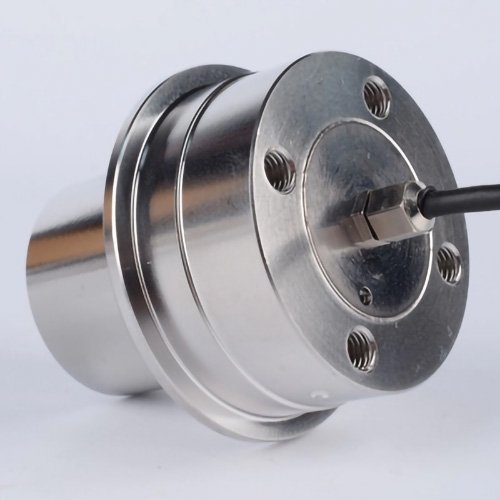

FA906
Features
| Product Name | Column Type Load Cell | Capacity | 0-200N (Raw Sensitivity0.6~0.8) |
|---|---|---|---|
| Rated Output | 4~20mA | Repeatability | ≤0.02%F.S. |
| Non-linearity | ≤0.03%F.S. | Material | Stainless Steel |
Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product Name | — | Column Type Load Cell |
| Capacity | N | 0–200 (Raw Sensitivity: 0.6~0.8) |
| Rated Output | mA | 4–20 |
| Zero Balance | mV/V | ±1% |
| Creep (30min) | %F.S. | ≤0.05 |
| Non-linearity | %F.S. | ≤0.03 |
| Hysteresis | %F.S. | ≤0.05 |
| Repeatability | %F.S. | ≤0.02 |
| Input Impedance | Ω | 385 ±20 |
| Output Impedance | Ω | 350 ±10 |
| Temp. Effect on Output | %F.S./10℃ | 0.05 |
| Temp. Effect on Zero | %F.S./10℃ | 0.05 |
| Insulation Resistance | MΩ/100VDC | ≥5000 |
| Recommended Excitation | V | 10 |
| Maximum Excitation | V | 15 |
| Compensated Temp Range | ℃ | -10 ~ 60 |
| Operating Temp Range | ℃ | -20 ~ 80 |
| Safe Overload | %F.S. | 150 |
| Ultimate Overload | %F.S. | 200 |
| Cable Size | mm | ⌀3 × 3000 |
| Material | — | Stainless Steel |
