Models

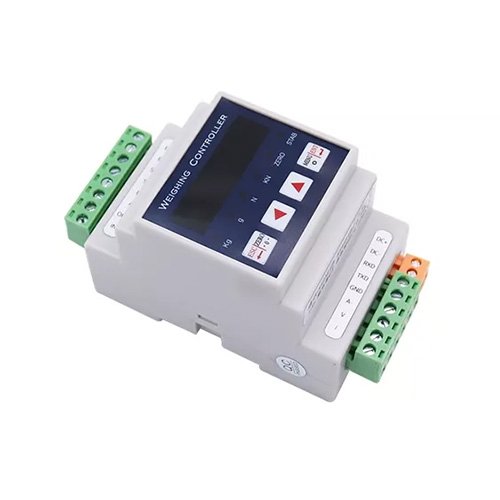

FA53
Features
Inputsingle Range：±3.6mV/V
Communication Interface：RS232/RS485
Communication protocols：Modbus-RTU
Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Channel Count | way | 1 way |
| A/D Readability | bit | 24-bit Delta-Sigma (24 seats) |
| A/D Conversion Speed | Hz | 1280Hz (Adjustable: 10Hz, 40Hz, 640Hz) |
| Power Supply | VDC | 18–30V |
| Input Signal Range | mV/V | ±3.6mV/V |
| Excitation Voltage | VDC | 5VDC ±1%, 100mA |
| Input Load | — | 1–8 pcs 350Ω sensors |
| Input Sensitivity | mV/V | 0.4–6mV/V |
| Output Linearity | — | 1/90000 |
| Readability | % | ＜0.002 |
| Comprehensive Accuracy | %F.S. | Better than 0.01 |
| D/A Output Readability | bit | 16-bit |
| D/A Output | — | ±10V, 4–20mA |
| Digital Input | — | 1 channel IN |
| Digital Output | — | 1 channel OUT (transistor) |
| Temp. Effect on Output | ppm/℃ | ≤10 |
| Temp. Effect on Zero | μV/℃ | ≤10 |
| Power Consumption | W | ≤10 |
| Communication Interface | — | RS-232 & RS-485 |
| Communication Protocols | — | Modbus-RTU |
| Baud Rate | bps | 4800, 9600 (default), 19200, 38400, 57600, 115200 |
| Dimensions | mm | 54 × 87.5 × 58.7 |
| Operating Temperature Range | ℃ | -20 ~ 70 |
| Material | — | ABS engineering plastics |
