Models

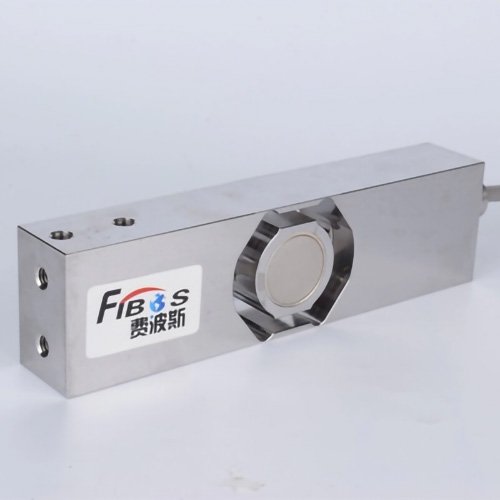

FA508
Features
| Product Name | Shear Beam Load Cell | Capacity | 10,20,50,100kg |
|---|---|---|---|
| Rated Output | 2.0±10%mV/V | Non-linearity | ≤0.0166%F.S. |
| Repeatability | ≤0.018%F.S. | Material | Stainless Steel |
Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Shear Beam Load Cell |
| Capacity | kg | 10, 20, 50, 100 |
| Rated output | mV/V | 2.0 ± 10% |
| Zero Balance | mV/V | ±0.05 |
| Creep (30 min) | %F.S. | ≤0.0166 |
| Non-linearity | %F.S. | ≤0.0166 |
| Hysteresis | %F.S. | ≤0.0166 |
| Repeatability | %F.S. | ≤0.018 |
| Input impedance | Ω | 390 ± 5 |
| Output impedance | Ω | 350 ± 5 |
| Temp. effect on output | %F.S./10℃ | 0.0175 |
| Temp. effect on zero | %F.S./10℃ | 0.0125 |
| Insulation resistance | MΩ / VDC | ≥5000 @ 100VDC |
| Recommended excitation | V | 5 |
| Maximum excitation | V | 12 |
| Compensated Temp Range | ℃ | -10 ~ 40 |
| Operating Temp Range | ℃ | -10 ~ 50 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | mm | ⌀5.4 × 3000 |
| Weight | kg | 0.5 |
| Material | – | Stainless steel |
| Max. platform size | mm | 500 × 400 |
