Models
FA508
Features
Dimension：L=150mm，W=25mm，H=40mm
Accuracy：0.0166%F.S.
Material：Stainless Steel

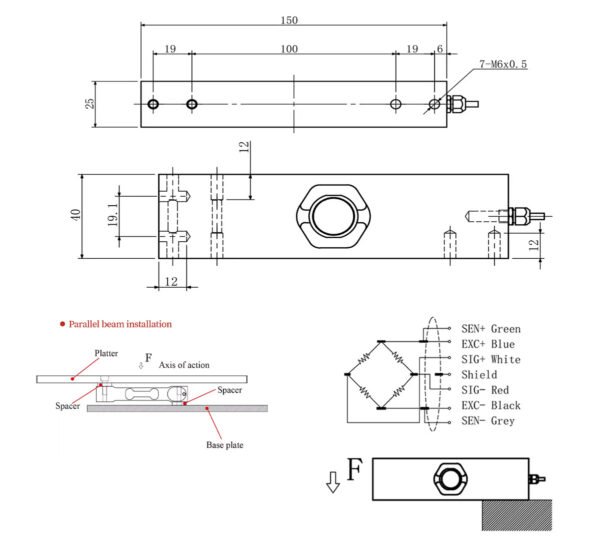

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | kg | 10, 20, 50, 100 |
| Sensitivity | mV/V | 2.0 ± 10% |
| Zero Balance | mV/V | ±0.02 |
| Creep | %F.S. | 0.0166 |
| Non-linearity | %F.S. | 0.0166 |
| Hysteresis | %F.S. | 0.0166 |
| Repeatability | %F.S. | 0.018 |
| Input Impedance | Ω | 380 ± 15 |
| Output Impedance | Ω | 350 ± 10 |
| Temp. Effect on Sensitivity | %F.S./10℃ | 0.0175 |
| Temp. Effect on Zero | %F.S./10℃ | 0.0125 |
| Insulation Resistance | MΩ / 100VDC | ≥ 500 |
| Recommended Excitation | V | 5 |
| Maximum Excitation | V | 12 |
| Compensated Temp. Range | ℃ | -10 ~ 40 |
| Operating Temp. Range | ℃ | -20 ~ 50 |
| Safe Overload | %F.S. | 150 |
| Ultimate Overload | %F.S. | 200 |
| Cable Size | mm | Φ5.4 × 3000 |
| Material | – | Stainless Steel |
| Max. Platform Size | mm | 500 × 400 |
