Models
FA505
Features
Dimension：L=150mm，W=38mm，H=38mm
Accuracy：0.017%F.S.
Material：Aluminium Alloy

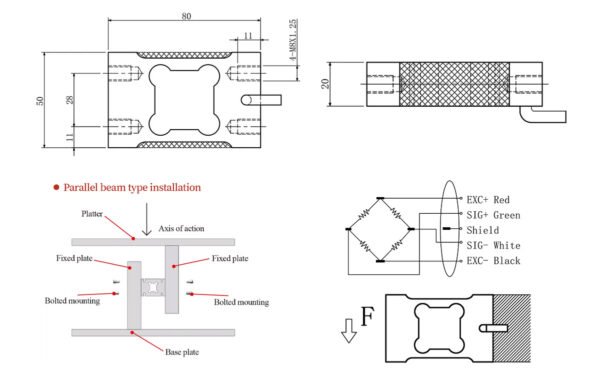

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | kg | 8, 15, 30, 50, 100, 150, 200, 250, 300 |
| Sensitivity | mV/V | 2.0 ± 10% |
| Zero Balance | mV/V | ±2 |
| Creep (30 min) | %F.S. | 0.017 |
| Non-linearity | %F.S. | 0.017 |
| Hysteresis | %F.S. | 0.017 |
| Repeatability | %F.S. | 0.015 |
| Input Impedance | Ω | 300 ~ 500 |
| Output Impedance | Ω | 330 ~ 430 |
| Temperature Effect on Output | %F.S./10℃ | 0.025 |
| Temperature Effect on Zero | %F.S./10℃ | 0.025 |
| Insulation Resistance | MΩ (50VDC) | ≥ 5000 |
| Recommended Excitation | V | 5 ~ 12 |
| Maximum Excitation | V | 15 |
| Compensated Temperature | ℃ | -10 ~ +40 |
| Operating Temperature | ℃ | -20 ~ +50 |
| Safe Overload | %F.S. | 150 |
| Ultimate Overload | %F.S. | 200 |
| Cable Length | m | 3 |
| Material | – | Aluminium Alloy |
| Max. Size of the Scale | mm | 300 x 300 |
