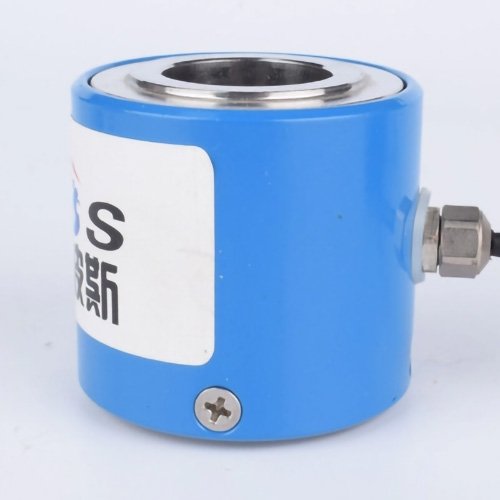

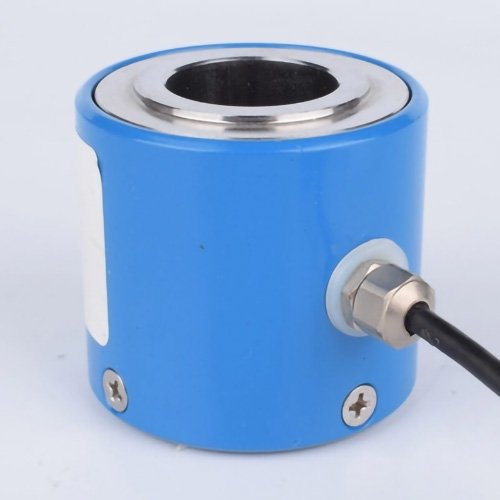

FIBOS / FA438 / Колонный тензодатчик

This weigh module has a rugged and compact design and an accuracy, which makes it especially suitable for load and level monitoring in storage tanks. The sensing element consists of three sections. The two outer sections constitute supports and rest on the built-in block, which is secured to the base. On the middle section, which is the loadsensing part, there is a yoke to which the leg of the tank is secured. The sensor is efficiently locked so that it cannot twist in the built-in block.

50-5000kg Large Range Weight Measurement Applied S Beam Load Cell FA305 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA305 can be used to measure load 50kg,100kg,200kg,500kg,1000kg, 2000kg,3000kg and 5000kg capacity, its Rated output range is 2.0±0.25%mV/V, its Zero Balance range is ±0.01mV/V.

0-200N Raw Sensitivity 0.6~0.8 Stainless Steel Column Type Load Cell FA906 is a model of our brand FIBOS FA9-Series, Column Type Load Cell FA906 can be used to measure load ranges up to 200N capacity, its Raw sensitivity range is 0.6~0.8, its Rated output range is 4~20mA, and its Zero Balance range is ±1%mV/V.

500,1000,2000,5000,10000N Or Customized Column Type Load Cell FA402B is a model of Column Type Load Cell, it belongs to FA402 in our brand FIBOS FA4-Series, FA402B could measure load 500N, 1000N, 2000N, 5000N and 10000N or customized Capacity, its Creep(30min), Non-linearity, Hysteresis, Repeatability all ≤0.05%F.S. or could be customized, its weight is 0.1kg or customized.

Этот датчик изготовлен из высококачественной нержавеющей стали, может быть установлен в ограниченном пространстве и обладает высокой надежностью. Широко применяется в различных областях промышленной автоматизации и тестирования.

0.1-20kN Stainless Steel Column Type Load Cell FA406 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA406 could be used to measure load 0.1kN, 0.2kN, 0.5kN, 1kN, 2kN, 5kN, 10kN and 20kN capacity, its Creep(30min), Non-linearity and Hysteresis all ≤0.1%F.S., its Repeatability ≤0.05%F.S., its weight is 0.3kg.

50,100,500,1000,5000kg Or Customized Tension Compression Force Sensor FA130C belongs to FA130 which is in Tension Compression Force Sensor category of our brand FIBOS FA1-Series. FA130C can be used to measure tension&compression force ranges from 50kg,100kg,500kg,1000kg and 5000kg or customized capacity.

20kg The Creep ≤0.05%F.S. Stainless Steel Spoke Type Load Cell FA122B belongs to FA122 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122B can be used to measure load 20kg capacity, its Creep(30min) ≤0.05%F.S., its Non-linearity and Repeatability both ≤0.1%F.S., and its Hysteresis ≤0.2%F.S..

50,100,200,500,800kg Or Customized Spoke Type Load Cell FA127D belongs to FA127 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA127D can be used to measure load 50kg,100kg,200kg,500kg and 800kg or customized capacity, its Creep(30min) ≤0.032%F.S. or can be customized, its Non-linearity and Repeatability both ≤0.035%F.S. or also can be customized, and its Hysteresis ≤0.038%F.S. or can also be customized.

FA806 static load weighing module is based on the FA473 column load cell, with a range from 10t to 50t. It is characterized by its compact construction, which does not require the installation of additional accessories; the self-stabilizing load cell bearing head allows accurate and repeatable metering; quick and easy installation, saving installation and downtime for maintenance. The static load weighing module can be easily mounted on containers of various shapes and can be easily loaded, dosed, or mixed in this container.

50kN~3000kN IP67 Alloy Steel Or Stainless Steel Column Type Load Cell Weighing Sensor FA410 is a model of Column Type Load Cell, it is designed to measure load ranges from 50kN up to 3000kN. The material Alloy Steel or Stainless Steel can be customized, its cable size is 5.4x6000mm, it supports IP67.

20,50,100,200,500kg Or Customized Spoke Type Load Cell FA119B is a model of our brand FIBOS FA1-Series, it belongs to FA119 which is in Spoke Type Load Cell category, FA119B can be used to measure load 20kg,50kg,100kg,200kg and 500kg or customized capacity, its Rated output range is 1.5±15%mV/V, its Cable size is ⌀1.2x3000mm or customized length.
