Models

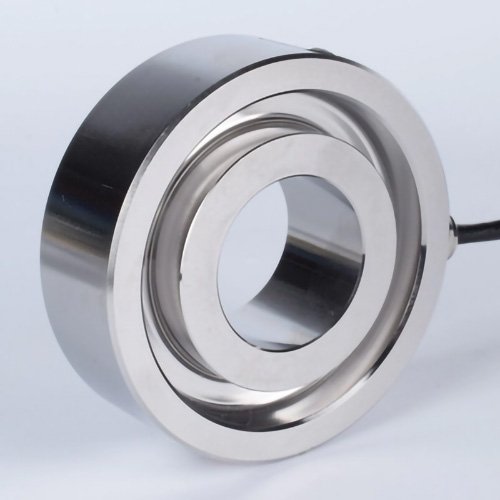

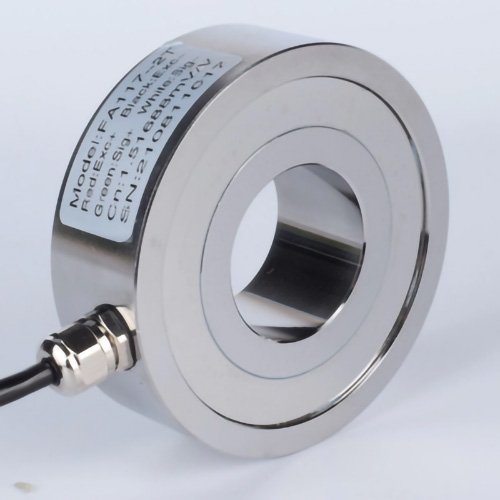

FA117
Features
| Product Name | Ring Force Sensor | Capacity | 10,20,30,50,100,200kN |
|---|---|---|---|
| Rated Output | 1.5±20%mV/V | Non-linearity | ≤0.1%F.S. |
| Repeatability | ≤0.1%F.S. | Material | Stainless Steel |
Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Ring Force Sensor |
| Capacity | kN | 10, 20, 30, 50, 100, 200 |
| Rated output | mV/V | 1.5 ± 20% |
| Zero Balance | mV/V | ±5 |
| Creep (30 min) | %F.S. | ≤0.1 |
| Non-linearity | %F.S. | ≤0.1 |
| Hysteresis | %F.S. | ≤0.2 |
| Repeatability | %F.S. | ≤0.1 |
| Input impedance | Ω | 780 ± 20 |
| Output impedance | Ω | 700 ± 10 |
| Temp. effect on output | %F.S./10℃ | 0.05 |
| Temp. effect on zero | %F.S./10℃ | 0.05 |
| Insulation resistance | MΩ / VDC | ≥5000 @ 100VDC |
| Recommended excitation | V | 10 |
| Maximum excitation | V | 15 |
| Compensated Temp Range | ℃ | -10 ~ 60 |
| Operating Temp Range | ℃ | -20 ~ 80 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | mm | ⌀4 × 3000 |
| Material | – | Stainless steel |
