Models

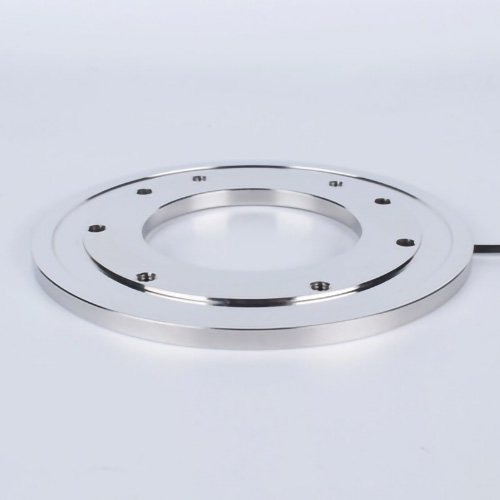

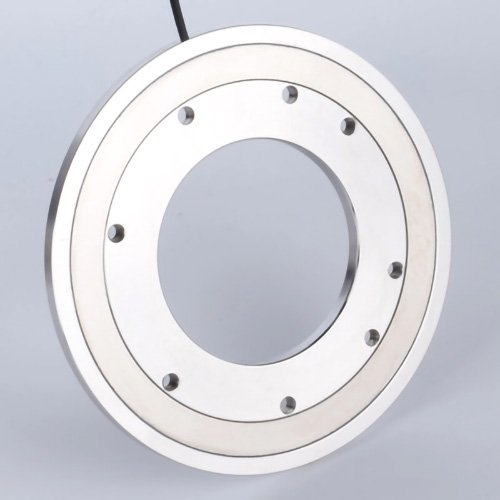

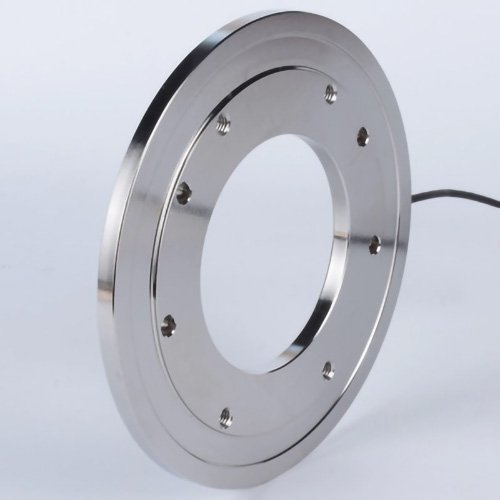

FA1028
Features
| Product Name | Ring Force Sensor | Capacity | 1,2,3,5,10,20kN |
|---|---|---|---|
| Creep(30min) | ≤0.1%F.S. | Non-linearity | ≤0.1%F.S. |
| Hysteresis | ≤0.2%F.S. | Repeatability | ≤0.1%F.S. |
Dimensions
맞춤 제작 상품
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Ring Force Sensor |
| Capacity | kN | 1, 2, 3, 5, 10, 20 or customized |
| Rated output | mV/V | 1.5 ± 20% |
| Zero Balance | mV/V | ±5 or customized |
| Creep (30 min) | %F.S. | ≤0.1 or customized |
| Non-linearity | %F.S. | ≤0.1 or customized |
| Hysteresis | %F.S. | ≤0.2 or customized |
| Repeatability | %F.S. | ≤0.1 or customized |
| Input impedance | Ω | 780 ± 20 |
| Output impedance | Ω | 700 ± 10 |
| Temp. effect on output | %F.S./10℃ | 0.05 |
| Temp. effect on zero | %F.S./10℃ | 0.05 |
| Insulation resistance | MΩ / VDC | ≥5000 @ 100VDC |
| Recommended excitation | V | 10 |
| Maximum excitation | V | 15 |
| Compensated Temp Range | ℃ | -10 ~ 60 |
| Operating Temp Range | ℃ | -20 ~ 80 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | mm | ⌀4 × 3000 or customized |
| Material | – | Stainless steel or customized |
