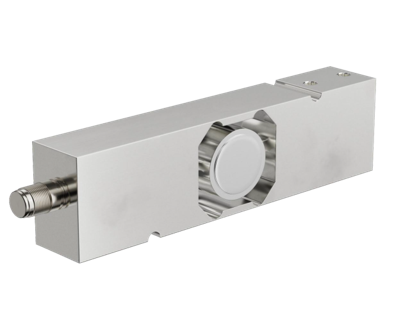

DYX-301
Features
-
High Stability
-
Low Construction
-
Comprehensive High Precision
-
Stable Anti-Interference Signal
-
High-grade nickel-plated alloy steel
-
Widely used in weighing equipment such as electronic belt scales, packaging scales, and charging scales, as well as in automation equipment and testing fields.
Dimensions
| Capacity(mm) | ΦA | B | C | D | E | W | H | M | 2-Φ | I |
| 50kg~2T | 130 | 15 | 25 | 76 | 30 | 32 | 32 | M12*1.75 | Φ13 | 56 |
| 2.5~5T | 171 | 19 | 38 | 96 | 38 | 38 | 43 | M18*1.5 | Φ20 | 80 |
| 6~10T | 225.6 | 25.4 | 50.8 | 122.9 | 50.8 | 50.8 | 56 | M24*2 | Φ26.4 | 105 |
Specifications
Unit
| Item | Specification | |
|---|---|---|
| Rated Capacity | T | 0–10 |
| Output Sensitivity | mV/V | 2.0 ± 0.05 |
| Zero Output | %F.S. | ±1 |
| Non-linearity | %F.S. | 0.03 |
| Hysteresis | %F.S. | 0.03 |
| Repeatability | %F.S. | 0.03 |
| Creep (30 min) | %F.S. | 0.03 |
| Temperature Effect on Sensitivity | %F.S./10℃ | 0.03 |
| Temperature Effect on Zero | %F.S./10℃ | 0.05 |
| Frequency Response | Hz | 10k |
| Material | — | Alloy Steel / Stainless Steel |
| Impedance | Ω | 350 |
| Insulation Resistance | MΩ/100V DC | ≥5000 |
| Excitation Voltage | V | 5–15 |
| Operating Temperature Range | ℃ | -20 to 80 |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Cable Specification | m | Φ5×3m |
| Cable Maximum Tension | N | 98 |
| TEDS | — | Optional |
