DAYSENSOR / DYJN-102 / 토크 센서

1,2,3,5,10,20,30,50,100,200Nm Or Customized Dynamic Torque Sensor FA607B is a model of our brand FIBOS FA6-Series, FA607B belongs to FA607 which is from Torque Force Sensor, it can be used to measure Torque Force 1N.m, 2N.m, 3N.m, 5N.m, 10N.m, 20N.m, 30N.m, 50N.m, 100N.m, 200N.m or customized capacity, its Creep(30min) and Repeatability both same ≤0.1%F.S. or can be customized, its Non-linearity and Hysteresis both same ≤0.2%F.S. or also can be customized.

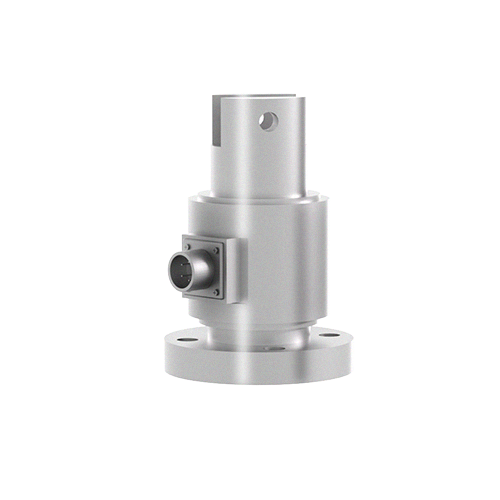

1、Static torque sensor is a kind of sensor used to measure the torque of a stationary or slowly rotating object.
2、The flange mounted sensor is connected with a load transfer device, which can output voltage or current signals.
3、It is used for static discontinuous rotation, non-standard customization, anti-interference signal stability, and is widely used in static torque testing systems such as testing machines, torque wrenches, steering gears, electric actuators, valves, transmissions, and hydraulic pressure.
4、Small size, light weight and convenient installation and use.
5、 High detection accuracy, good stability and strong anti-interference ability.

0.5,1,2,3,5,10,20,30,50,100,200,300,500kN.m or customized Static Torque Sensor Force Torque Sensor FA625A belongs to FA625 which is in Static Torque Sensor of Force Torque Sensor category, FA625A can be used to measure Static Torque force 0.5kN.m,1kN.m,2kN.m,3kN.m,5kN.m,10kN.m,20kN.m,30kN.m,50kN.m,100kN.m,200kN.m,300kN.m and 500kN.m or customized capacity.

The ZMZNJ is dual range shaft torque sensor. The torque sensor measures shaft-shaft type connection, measuring torsion by strain gages. There are both analog and digital output signals available for evaluation. The stainless steel construction is optional.

Nickel plated alloy steel

Suitable for dynamic, bearing, torque wrench and other testers

The ZHKY2051 is a compact high capacity slip ring type torque sensor ideal for a wide range of torque applications. Its size is larger than ZHKY2050 torque sensors, however, it offers a broad capacity range in the same form factor with mounting plate. This sensor is built with a stainless steel shaft and aluminum body and so that it can handle a maximum of up to 500N·m at 8000RPM.

ZHKY2051은 다양한 토크 어플리케이션에 적합한 소형 고용량 슬립링 타입 토크 센서입니다. ZHKY2050 토크 센서보다 크기가 크지만, 장착 플레이트를 포함하여 동일한 폼팩터에서 광범위한 용량 범위를 제공합니다. 이 센서는 스테인리스 스틸 샤프트와 알루미늄 바디로 제작되어 8000RPM에서 최대 500N·m의 토크를 견딜 수 있습니다.

The ZHKY901 is a rugged non-contact type torque sensor ideal for high torque applications with maximum of 300kN·m. The ZHKY901 is built with a stainless steel shaft and an aluminum body that can high capacities at high speeds of up to 8000RPM.

ZHKY901은 최대 300kN·m의 고토크 어플리케이션에 적합한 견고한 비접촉식 토크 센서입니다. ZHKY901은 스테인리스 스틸 샤프트와 알루미늄 바디로 제작되어 최대 8000RPM의 고속에서도 높은 성능을 발휘합니다.

Динамический датчик крутящего момента — это высокоточный измерительный прибор, способный измерять выходной крутящий момент и мощность вращающегося силового оборудования.
Он широко применяется для тестирования крутящего момента и мощности таких вращающихся силовых установок, как электродвигатели, двигатели внутреннего сгорания, а также для измерения крутящего момента и мощности механических компонентов, таких как вентиляторы, водяные насосы, коробки передач и динамометрические ключи.

The ZHKY2050B is a compact slip ring type torque sensor ideal for high torque applications. This sensor is designed to be rugged so that it can handle a maximum of up to 500N·m at 8000RPM.

5-500N.M IP66 Dynamic Torque Sensor Force Torque Sensor FA603 is a model of our brand FIBOS FA6-Series, Dynamic Torque Sensor Force Torque Sensor FA603 can be used to measure dynamic torque force ranges from 5N.m,10N.m,20N.m,50N.m,100N.m,200N.m and 500N.m capacity, its Rated output range is 1.0~1.5mV/V, its Zero Balance range is ±0.01mV/V.

The ZMNJF2 is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. The ZMNJF2 can be used in both clockwise and counterclockwise direction ranging from 1000Nm up to 5000Nm. The sensor is used in static and non-rotating torsion measure applications.

Nickel plated alloy steel
