CALT / P3022 / 초소형 비접촉식 회전 각도 센서

Description

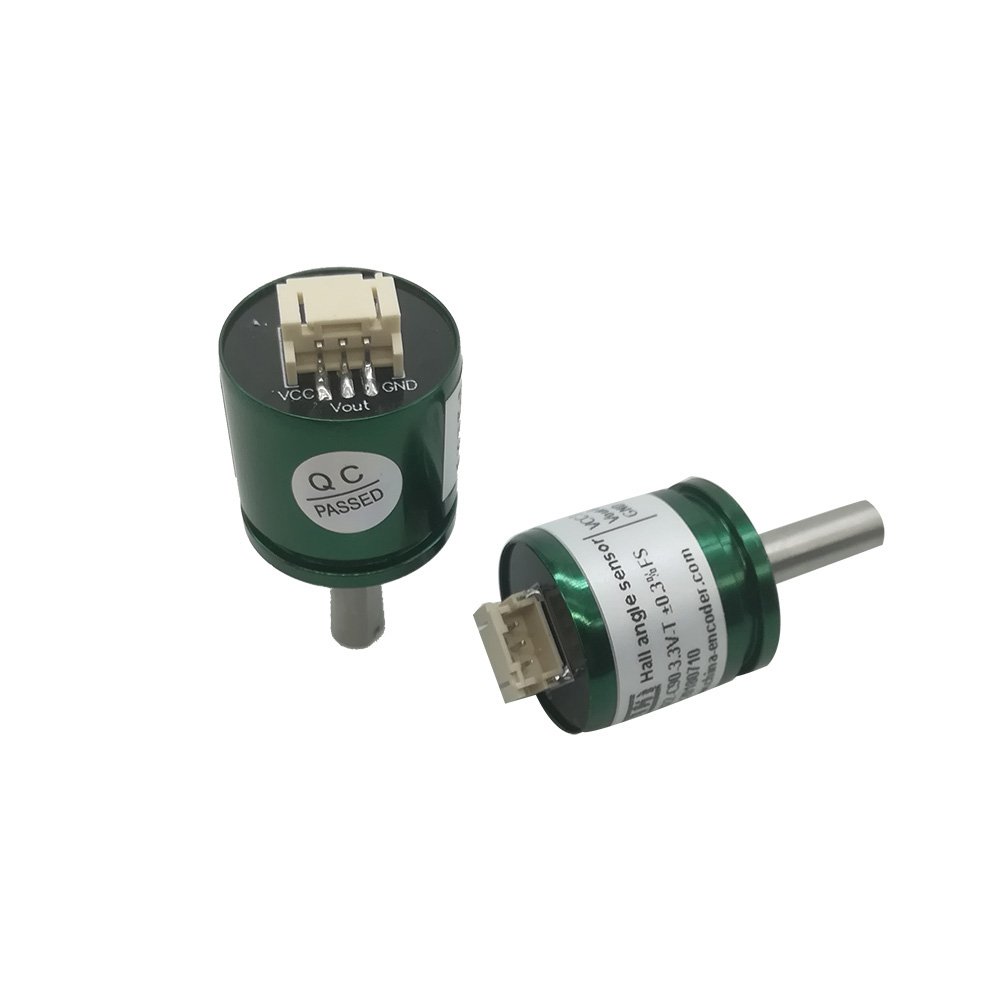

P3022series of miniature non-contact angle sensor works through the principle of electromagnetic induction, the angle is converted to an electrical signal. When the rotation angle of the object passed to the axis of rotation sensors, P3022 angle sensor outputs an electrical signal that is proportional to the rotational angle.

This series of products using hard aluminum alloy material shell; Hall-type non-contact technology, P3022 series angle sensor has the advantages of non-contact angle sensor, and the use of high-quality imported high quality stainless steel high speed bearing member, so that it reduced frictional resistance when measuring the minimum, not because of the wear surface measurement component caused decrease measurement accuracy, long service life theoretically unlimited; the product compact structure, small size, optional strong, high resolution, smooth rotation dynamic noise in addition to the excellent performance suitable for electromagnetic interference outside the water, oil, vibration, shock and other harsh industrial environment, is a cost-effective non-contact angle sensor.

Feature

Small size, the maximum outer diameter of 22mm

Full 360 ° no dead angle measurement

Linearity is ±0.3% F.S.

Output signal 0-5V DC

Supply voltage 5V DC

Angle Direction: Clockwise rotation of the rotary shaft

Long product life.

Small rotational torque

Aluminum shell

Easy to install

Application : Manipulators, Textile Machinery, Construction machinery, Hydraulic cylinders Systems, Testing Machine, Automotive Test, medical instruments
