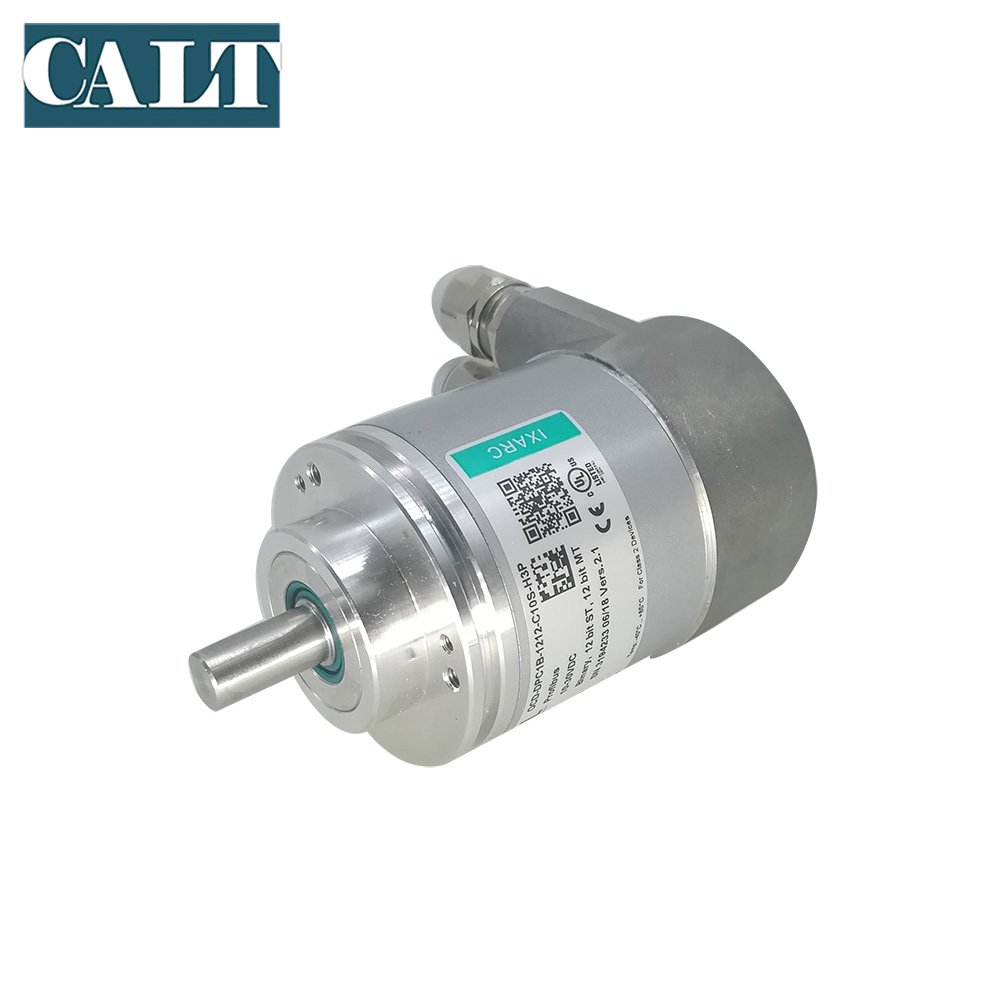

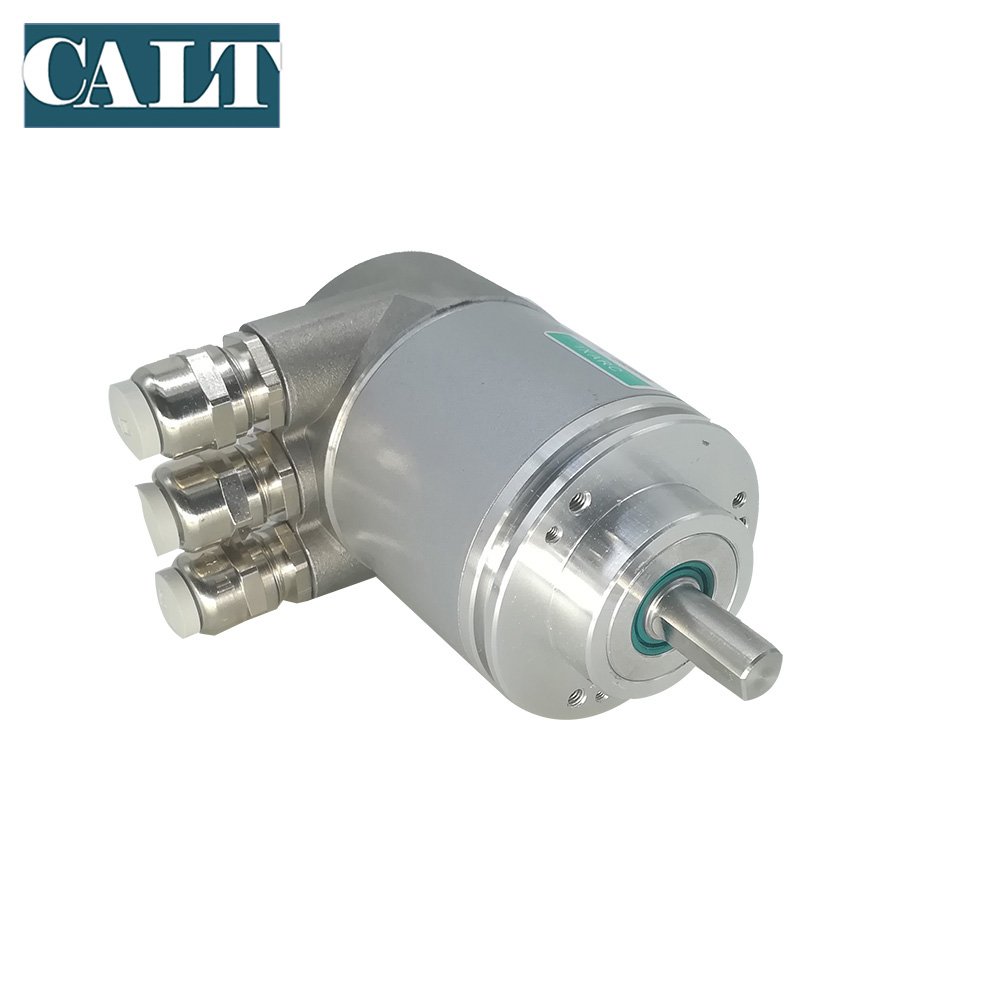

Specification
Electrical Data
Interface Line-driver According to RS 485,
Galvanically Isolated by Opto-Couplers
Transmission rate max. 12 MBaud
Device addressing Adjustable by Rotary Switches in Connection Cap
Supply voltage 10 – 30 V DC Absolute Limits) *
Current consumption max. 230 mA with 10 V DC, max. 100 mA with 24 V DC
Power consumption max. 2.5 Watts
Step frequency LSB 800 kHz
Accuracy of division ½ LSB (12 Bit), ± 2 LSB (16 Bit)
Electrical lifetime > 10 5 h
* Supply voltage according to EN 50 178 (safety extra-low voltage)
Ordering description
Installation dimensions (mm)
Synchro flange
Clamp flange
Hub shaft
