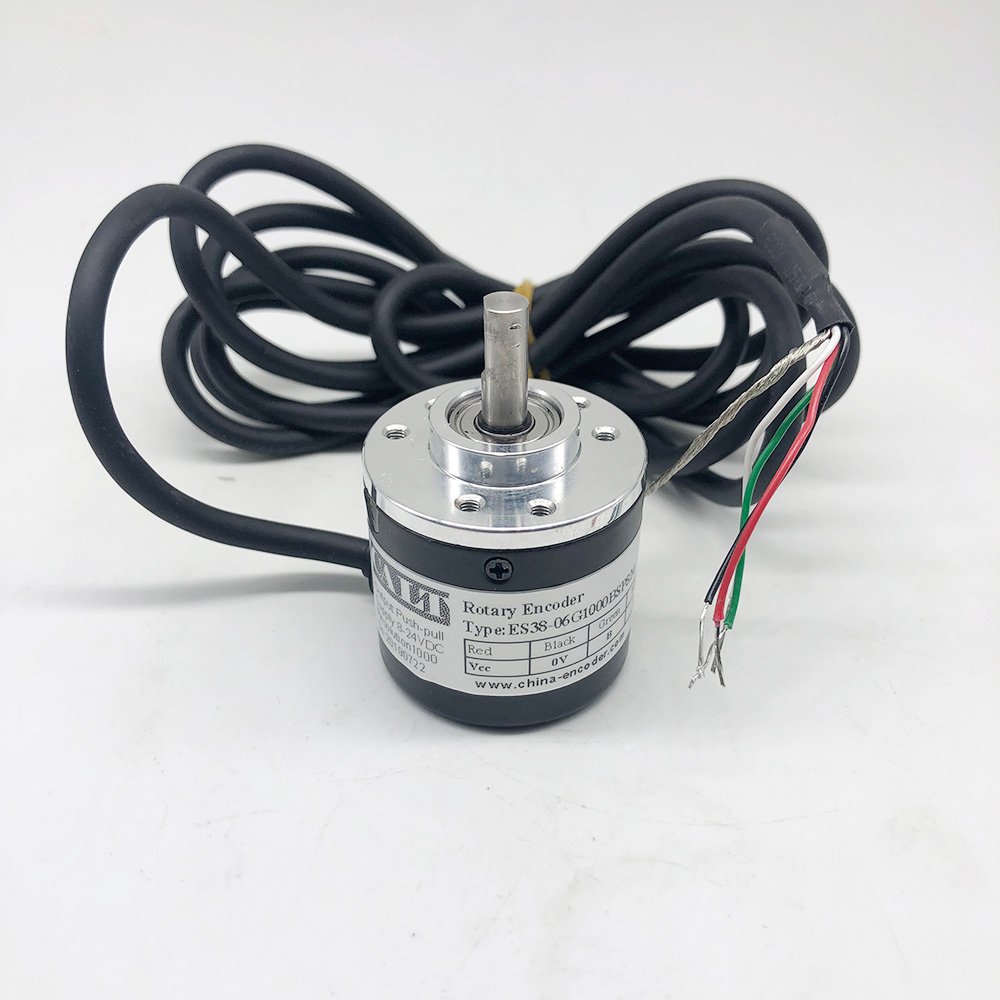

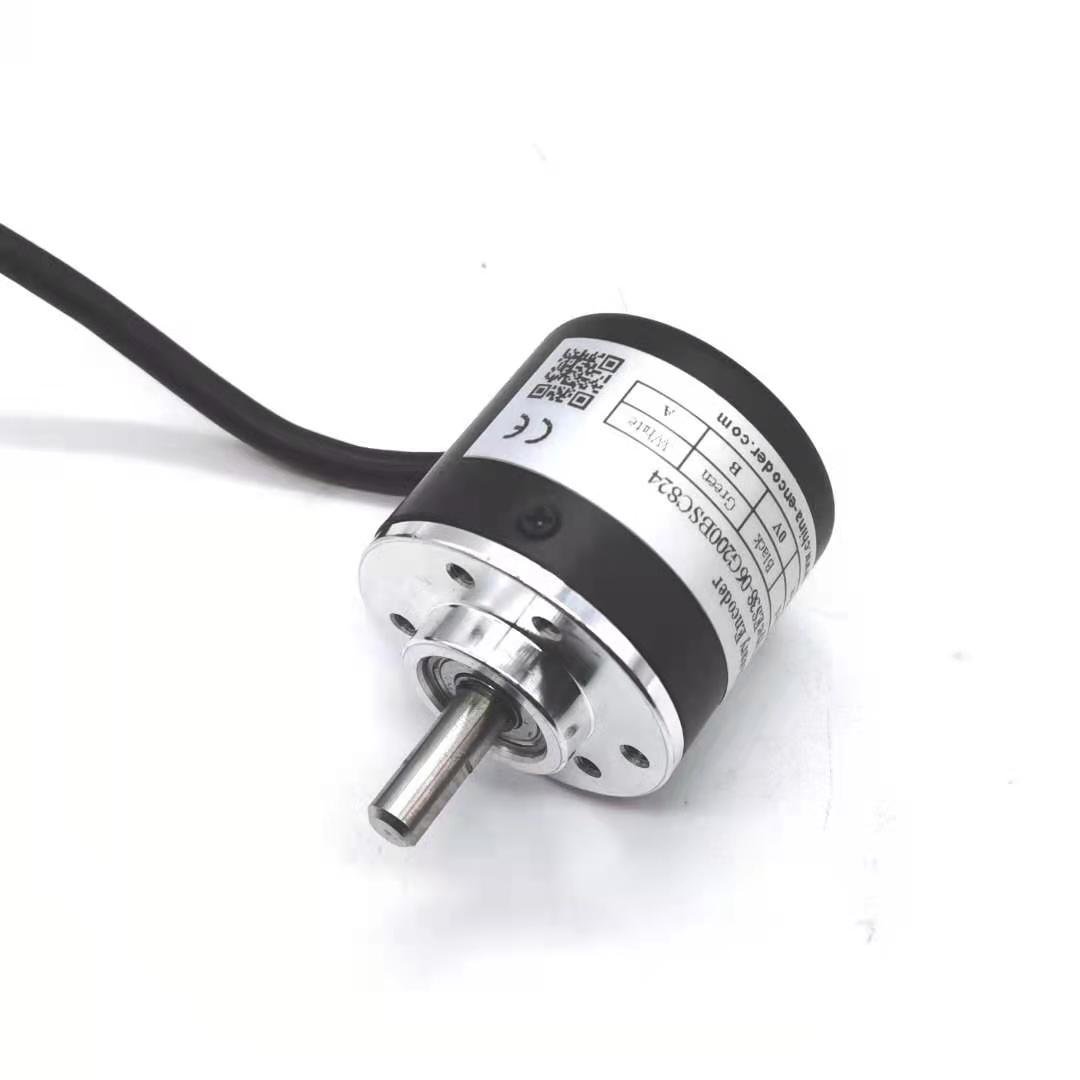

Profile
Widely used in automatic control, automatic measurement, as the angle and speed sensors. ASIC devices internal, good reliability, long life, anti-jamming performance. Stainless steel shaft has a higher stability and protection.Metal shell is more solid and anti-impact. Bearing load heavy, anti-oil and water.
Model
Electrical spec.
| Output circuit | Open-collector output（NPN） | Voltage output | Push-pull complementary outputs |
| Supply voltage | 8~24V | 5V | 5±0.25 5~26V |
| Current consumption | ≤80mA | ≤80mA | ≤80mA |
| Load current | 40mA | 40mA | 40mA |
| Output high | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V |
| Output low | MAX 0.4V | MAX 0.4V | MAX 0.8V |
| Rise time Tr | MAX 1us | MAX 1us | MAX 1us |
| Fall time Tf | MAX 1us | MAX 1us | MAX 1us |
| Highest frequency response | 100kHz | 100kHz | 100kHz |
Mechanical spec.
| Max speed r/min | Starting torque | Axis maximum load | Impact | Anti-vibration |
| 3000 | <0.05Nm | Radial 25 N Axial 15N | 50G/11ms | 10G 10-2000Hz |
| Moment inertia | Work Temperature | Storage Temperature | Protection Degree | Weight |
| 4 x 10.-5kgm² | -25~85ºC | -35~85ºC | IP54 | 100g |
Dimensions(mm)
Connections
| Signal | A | B | Vcc | GND |
| Color | White | Green | Red | Black |
