SC512는 인장 및 압축 하중을 모두 받는 어플리케이션에 적합하도록 설계된 S형 로드셀입니다. 합금강 또는 스테인리스강으로 제작된 SC516은 상부 및 하부 암에 정렬된 장착 구멍이 있어 매달린 어플리케이션에 부착할 수 있습니다. 또한, 압축 하중은 로드셀 본체에 직접 가할 수 있어 설치가 간편합니다.

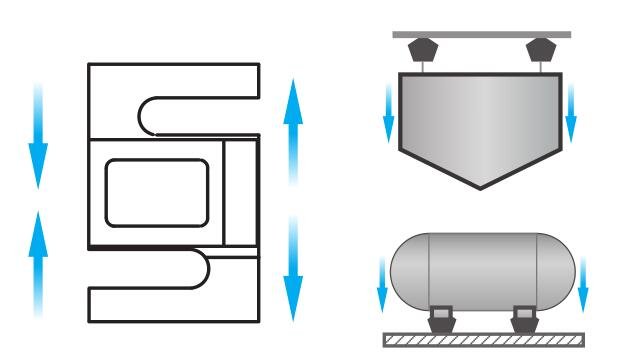

The SC512 is a S-type load cell designed for applications that involve both tension and compression. Manufactured from alloy steel or stainless steel, the SC516 has an upper and a lower arm with aligned mounting holes for attachment in suspended applications. Meanwhile, compressive loads can be applied directly to the body of the load cell for easy installation.

The ZMZS coulmn S type tension load cell offers a wide range of capacities, extending from 1KN to 200KN. Constructed from alloy steel with an electroless nickel-plated surface, it’s a robust and reliable choice. We provide optional amplifer which converts analog sigal into 4-20mA, 0-5V or 0-10V.

Nickel plated alloy steel

• Capacity: 0-200kg
• Sensitivity: 1.0~2.0 mV/V
• Non-linearity 0.05% F.S.
• Repeatability 0.03% F.S.
• Material Stainless steel with nickel plated
• Bi-directional tension and compression
• Can be customized

1.Alloy steel & stainless structure;

2.Bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments;

3.Suitable for electronic platform scales, hopper scales, and other electronic weighing devices.

• Capacity: 0-7T
• Sensitivity: 2.0 mV/V
• Non-linearrity 0.03% F.S.
• Repeatability 0.03% F.S.
• Material Alloy steel with nickel plated
• Bi-directional tension and compression
• Can be customized

1.Alloy steel construction;

2.With glue sealing and nickel plated surface, the product is waterproof and anti-corrosion, could work for various applications;

3.Suitable for electronic hanging scales, hopper scales, tension or compression measuring application and other electronic weighing devices.

• Capacity: 0-10kg
• Sensitivity: 1.0~2.0 mV/V
• Non-linearity 0.1% F.S.
• Repeatability 0.05% F.S.
• Material Stainless steel with nickel plated
• Bi-directional tension and compression
• Can be customized

1.high precision, high stability, high output symmetry, and pull pressure.

2.good stability, low temperature drift and good output symmetry, compact structure,

3.suitable for electronic belt scale, hopper scale, weighing scale, electronic weighing scale, lifting hook scale and industrial automatic control system.

The ZMYS circular S type tension load cell offers a wide range of capacities, extending from 1kg to 5000kg. Constructed from alloy steel with an electroless nickel-plated surface, it’s a robust and reliable choice. We provide optional amplifer which converts analog sigal into 4-20mA, 0-5V or 0-10V.

Nickel plated alloy steel

1.Aluminum Alloy;

2.Mainly used for crane scales, hopper scales, tensile testing etc.

• Capacity: 0-1.5t
• Sensitivity: 2.0 mV/V
• Non-linearity 0.031% F.S.
• Repeatability 0.03% F.S.
• Material Alloy steel with nickel plated
• Bi-directional tension and compression
• Can be customized
