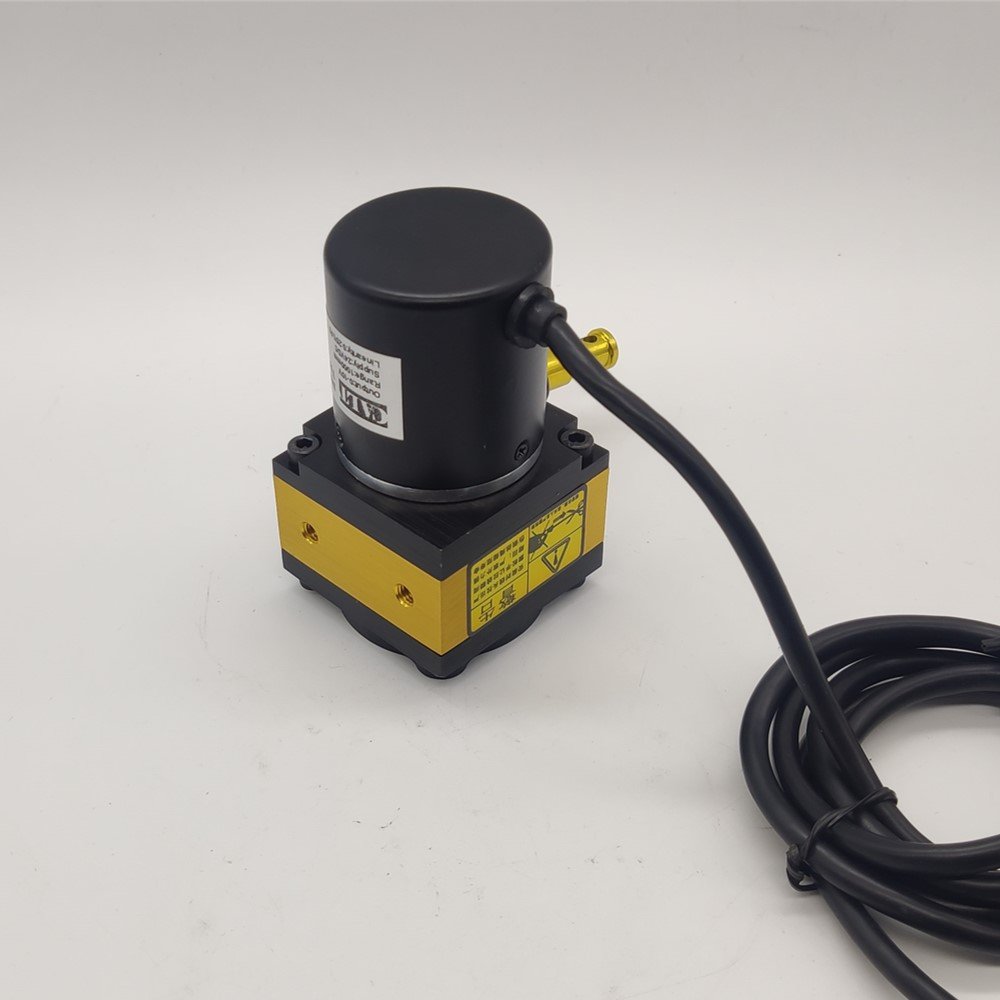

String potentiometer CWP-S2000
Features
*compact size, rugged construction, easy to install
*economic cost, and cost savings for customers
* Various signals output optional: 4 ~~ 20mA, 0 ~ 5V, 0 ~~ 10V and so on
*The cylinders, testing machines and other industry has achieved large-scale applications, reliability
Dimension: (mm)
| CODE | CWP-S2000 |
| A | 126 |
| B | 80 |
| C | 54 |
| D | 22 |
| E | 25 |
| F | 31.85 |
| G | 20 |
| H | 18 |
| I | 40 |
| J | 104 |
| K | 38 |
| NOTE | Parameter table for general configuration dimension, the customers please reference order series of specific parameters (configuration changes will readjust) |
Technical Data
| Detection method | Precision potentiometer | Resolution | Theory of infinite |
| Measuring rang | 0~2000mm | Anti-vibration | 10HZ – 2000HZ，10G |
| Output | 4~20mA、0~10Vdc、0~5Vdc、
Resistance |
Repeatability | +/-0.02FS |
| Linearity | Standard:0.25%FS Precision:0.1%FS | Operating Temperature | -10℃~70℃ |
| rope | wire rope 0.6-1.2mm, rope maximum load: 16KG | Storage Temperature | -20℃~80℃ |
| Starting torque | <600g | protection | IP65/IP54 |
| PULL speed | Max：1m/s | Life | >200 000 times |
| Operating voltage | 12~24VDC | Weight | <600g |
