Specification
| Operating Voltage | 10-30Vdc polarity protection |
| Current Consumption | < 110mA (24V power supply) no load |
| Output Signal | RS485 and 4-20mA dual independent output(0-5V, 0-10V optional), you can set the length, angle, speed application output |
| Output load capacity | ≤ 400 ohms, the standard 200-250 Ohm work |
| Linearity Resolution | 1/4096 |
| Revolution | max.4096(Clock-type gear structure) |
| Operating Temperature | -40—75℃ Programming temperature range：0℃～＋70℃ |
| Storage Temperature | -40—80℃ |
| Protection class | IP67 for housing IP65 for shaft |
| Vibration & shock | 20g，10～2000Hz；100g，6ms |
| Permissible Rotation Rate | 2400rpm |
| Output refresh cycle | <1.4ms |
| Connection Cable | 1m 8-core shielded cable. |
| Overall Feature | Clamping flange or synchronous flange, metal enclosure, sealed dual-bearing structure ( see attached drawing of overall dimension) |
| Signal Conditioning | Can 4mA output trim, 20 mA output trim; direction can be set; preset position, external set, such as external zero |
Example (output signal evolution)
Installation dimensions (mm)
Clamping & synchro flange(default)
synchro flange

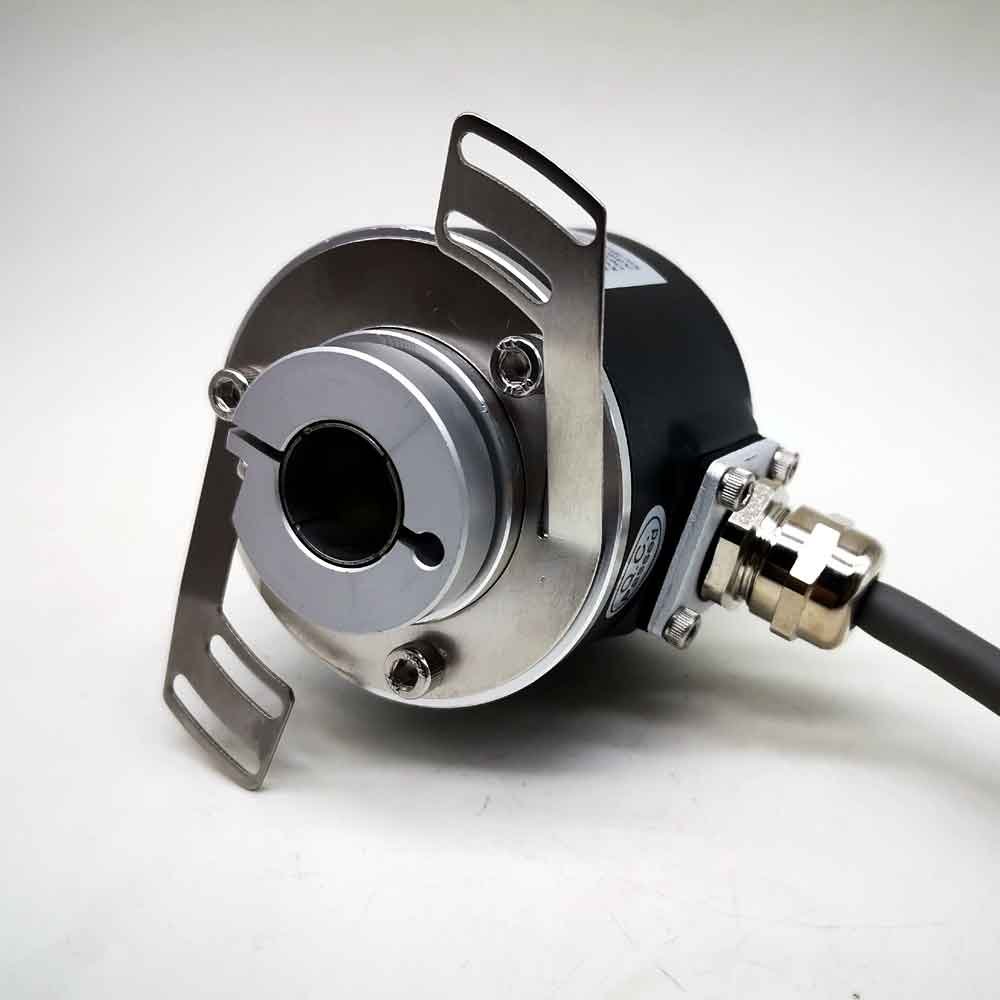

Blind hollow shaft
