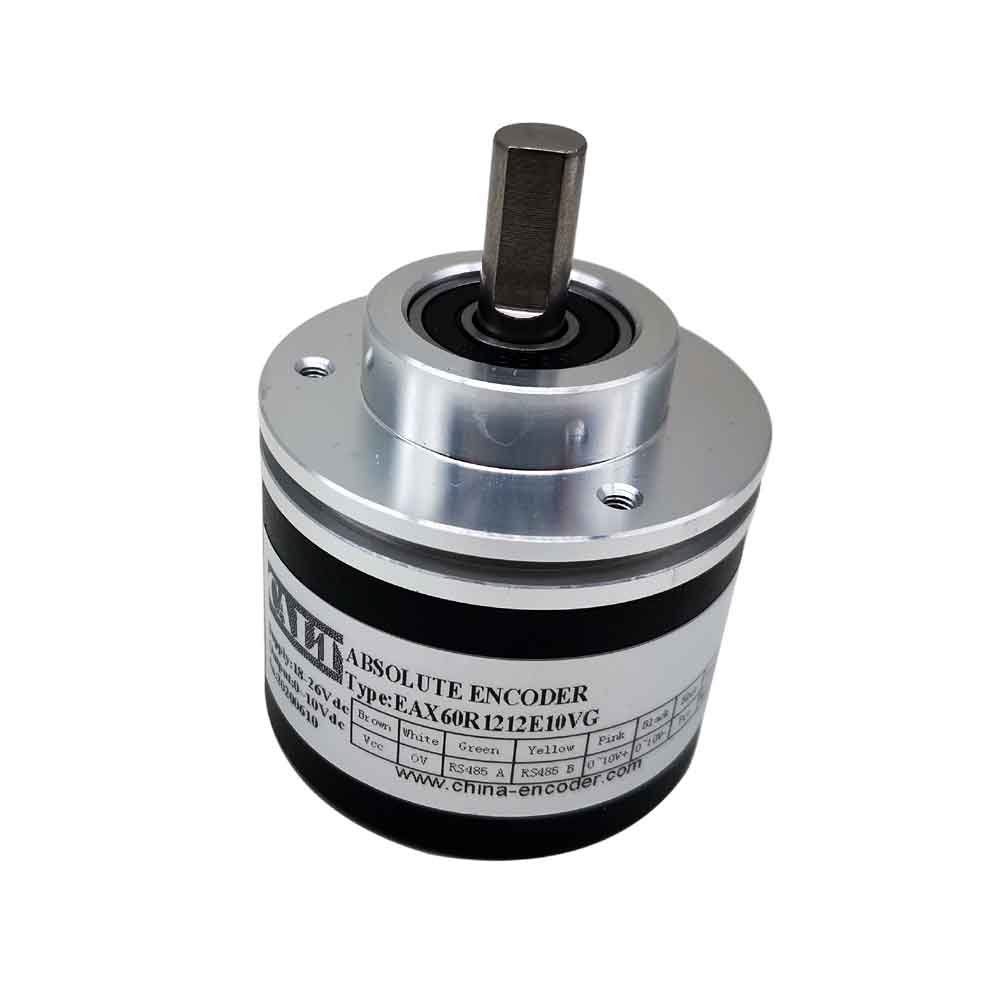

Specification
| Operating Voltage | 10-30Vdc polarity protection |
| Current Consumption | < 100mA (24V power supply) no load |
| Output Signal | RS485 and 4-20mA dual independent output, you can set the length, angle, speed application output |
| Linearity Resolution | 1/4096FS |
| Repeatability Precision
Signal adjustment |
Repeatability ±2BIT( Actual precision related with installation and shaft concentricity.) Resolution or direction settable, external setting line preset functiion. |
| Operating Temperature | -40—75℃ Programming temperature range：0℃～＋70℃ |
| Storage Temperature
Protection class Vibration & shock |
-40—80℃
IP67 for housing IP65 for shaft 20g，10～2000Hz；100g，6ms |
| Permissible Rotation Rate | 2400rpm |
| Connection Cable | 1m 8-core shielded cable. |
| Overall Feature | Clamping flange or synchronous flange, metal enclosure, sealed dual-bearing structure ( see attached drawing of overall dimension) |
| Signal Conditioning | Can 4mA output trim, 20 mA output trim; direction can be set; preset position, external reset, such as external zero |
Example (output signal evolution)
Installation dimensions (mm)
Clamping flange (default)
synchro flange
Blind hollow shaft
