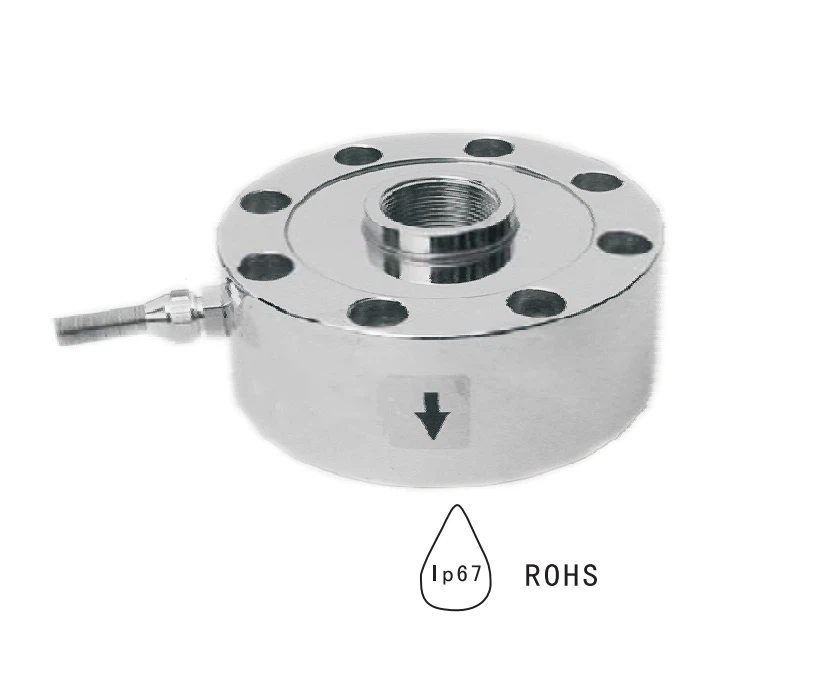

BRG-219 Tension Compression Load Cell 300t
Description
Main Features :
- Widely used in belt scale, hook scale, hopper scale, mechanical arm, electronic scale and so on
- High Hardness, Stable Structure And Stable Performance
- The Appearance Is Polished Smooth, Comfortable And Full In Color
- Add Shielding Line, Signal Stability, Anti-Interference, High Tensile Strength
- Load cell sensor is widely used in universal material testing machine, scale, hook scale, packaging scale, belt scale, in force tester and other tension and pressure testing instruments as well as automation equipment and testing
Technical Parameters
| Model | BRG -219 |
| Capacity | 2,5,10,25,40,50,100,200,300 T |
| Related output | 2.0± 0.04MV/V 4.0± 0.04MV/V |
| Accuracy class | C2 |
| Maxlmum number of verification intervals | 2000n max |
| Minimum load cell verification intervals | E Max/5000 V min |
| Combined erro | ≤ ±0.03 %RO |
| Creep | 0.02 %RO/ 30min |
| Temperature effect on sensitivity | 0.0016 %RO /℃ |
| Temperature effect on zero | 0.005%RO /℃ |
| Zero balance | ±1.0 %RO |
| Input resistance | 725± 10 Ω |
| Output resistance | 700± 3Ω |
| Insulation resistance | 5000MΩ (50V) |
| Recommended excitation voltage | 8~ 15V |
| Compensated temperature range | -10 ~+40 ℃ |
| Operating temperature range | -35 ~+80 ℃ |
| Safe overload | 150 %RO 120 %RO |
| Ultimate overload | 200 %RO 150 %RO |
| Load cell material | Alloy steel / stainless steel |
| Connecting cable | 2~25t Φ 5.7X8m 40~300t 5.7X13m |
Dimension (mm)
