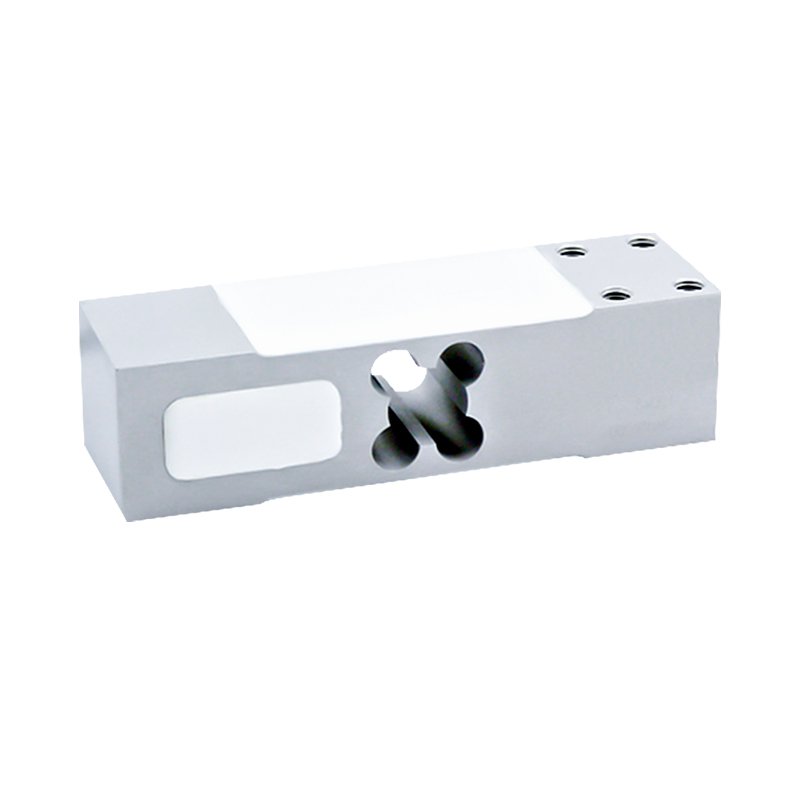

WL-117 Heavy-Duty Aluminum Load Cells (50kg-500kg) for Industrial Scales & Precision Weighing Systems
Features & Applications
Key Features:
-
Single Point Load Cells — Compact design for easy integration
-
Aluminum Alloy Construction — Durable and lightweight material
-
High Capacity Range — Supports 50kg to 500kg loads
-
Precision Measurement — C3/C4 accuracy class available
-
Flexible Configuration — Multiple cable lengths and options
-
Parallel Operation — Can be used with multiple units simultaneously
-
Stable Performance — Consistent rated output
Primary Applications:
-
Commercial weighing systems (electrical scales, bench scales)
-
Retail pricing scales
-
Industrial weighing equipment
-
Process control systems
-
Heavy-duty measurement applications
Specifications
| Capacity | 50/100/150/200/250/300/400/500kg |
| Combined Error | 0.015%F.S. |
| Non-linearity | 0.02%F.S. |
| Repeatability | 0.015%F.S. |
| Rated Output | 2.0±0.05mV/V |
| Zero Balance | ±0.2mV/V |
| Insulation Resistance | ≧5000Ω/100VDC |
| Recommended Excitation | 5~15VDC |
| Material | Aluminum Alloy |
| Nominal Displacement | 0.6-0.9mm |
| Safe Overload | 150%F.S |
| Protection Class | IP65 (Customizable) |
| Operation Temp | -30~70°C |
| Cable Size | Ф 5x3000mm(Customizable） |
Dimensions (mm)

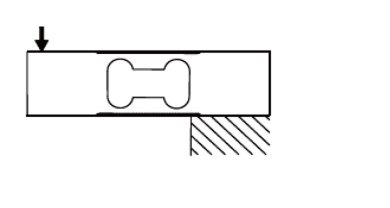

Load direction
Wiring code
