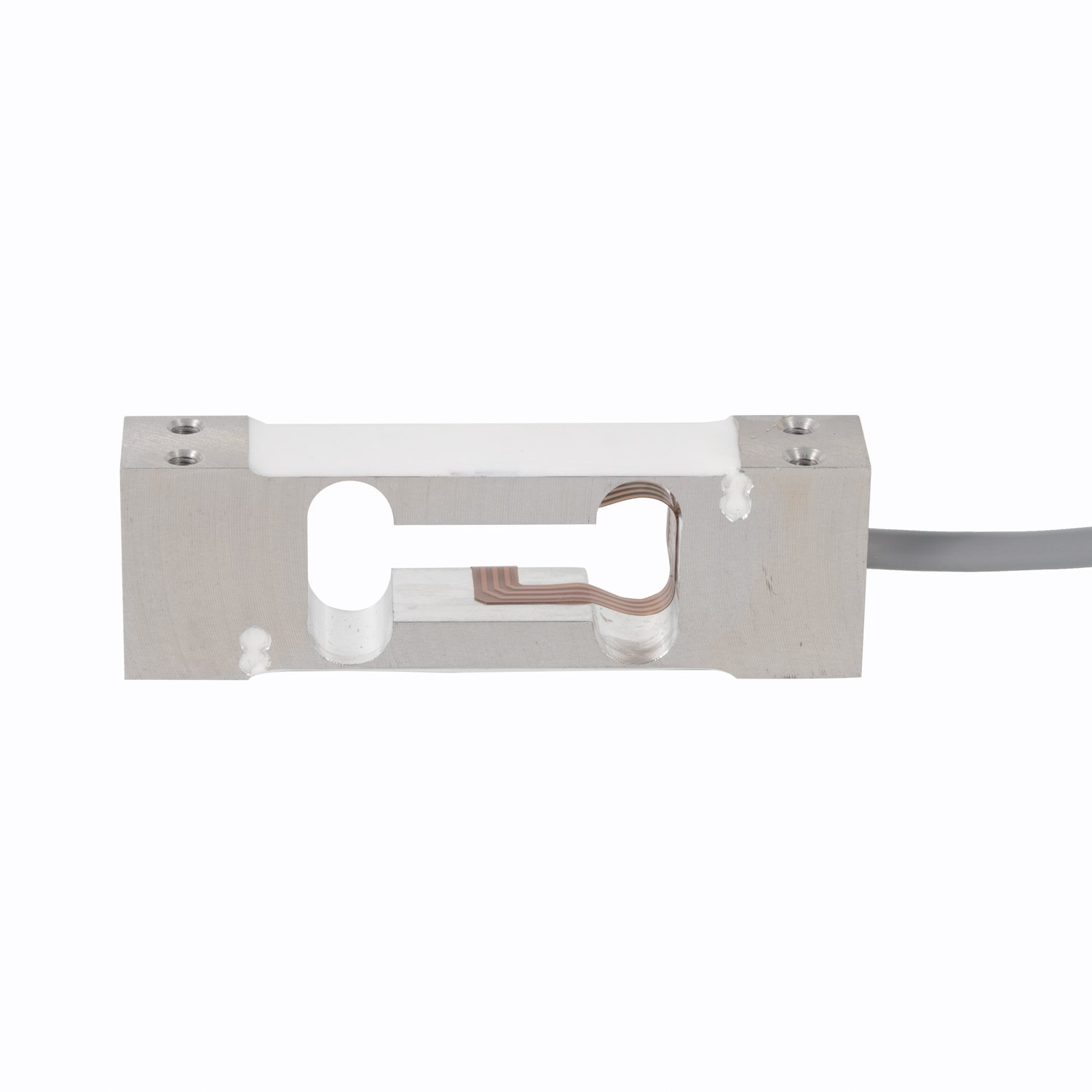

WL-112 Precision Single Point Load Cells (0.3kg-5kg) for Micro-Dispensing, Packaging & Quality Control with High Side Load Tolerance
Features & Applications
Single point load cells
Made of aluminum alloy
For determining small weights 0.3kg…5kg
With high precision, high side load tolerance
Different cable lengths and other options available
Mainly used for batching, filling and productionquality control of micro-dispensing metering,medicine, cosmetics, food packaging and other small packages
Specifications
| Capacity | 0.3kg/0.5kg/1kg/2kg/3kg/5kg |
| Combined Error | 0.017%F.S. |
| Non-linearity | 0.015%F.S. |
| Repeatability | 0.017%F.S. |
| Rated Output | 1.0±10%,2.0±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Insulation Resistance | ≧5000Ω/100VDC |
| Recommended Excitation | 5~15VDC |
| Material | Aluminum Alloy |
| Nominal Displacement | <0.4mm |
| Safe Overload | 150%F.S |
| Protection Class | IP65 (Customizable) |
| Operation Temp | -20~60°C |
| Cable Size | Ф 4x400mm(Customizable） |

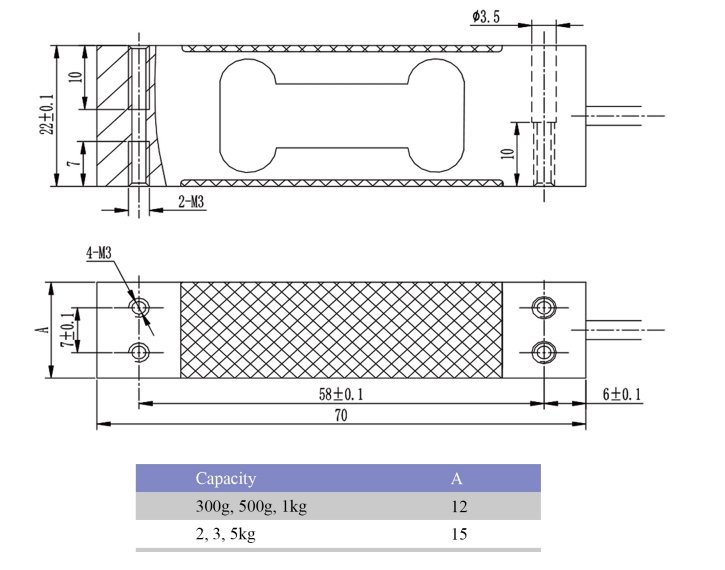

Dimensions (mm)

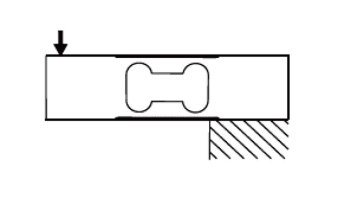

Load direction

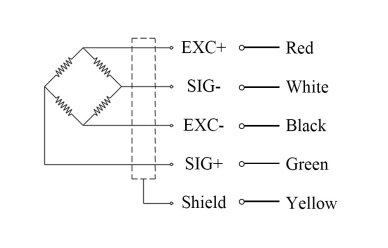

Wiring code
