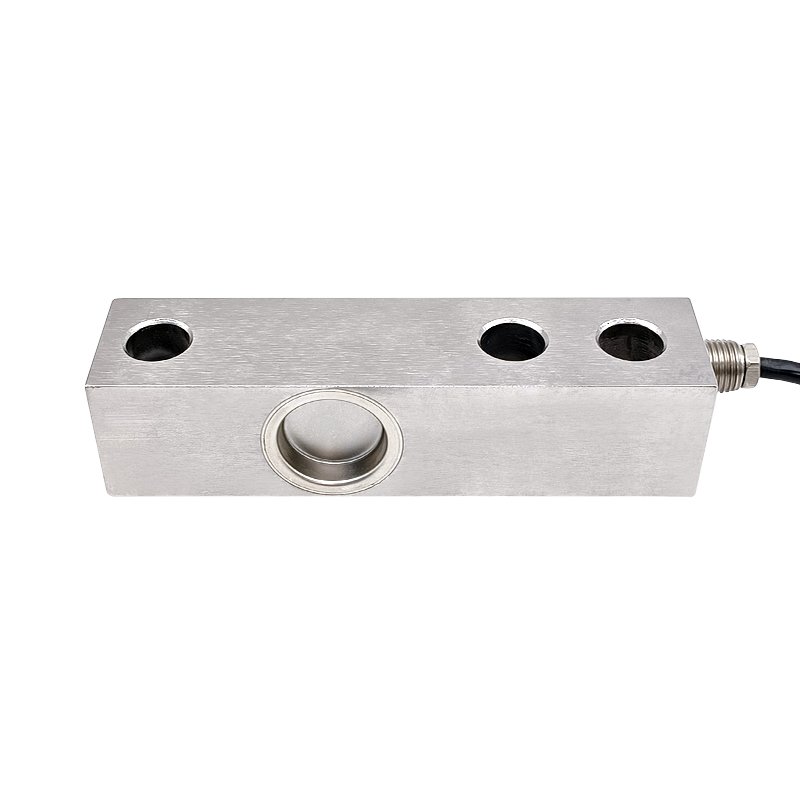

Stainless/Alloy Steel WL-125 Load Cell with Parallel Connection for Crane/Hopper Scales
Features & Applications
Product Features
-
Shear Beam Load Cells — Robust design for industrial weighing applications
-
Dual Material Options — Available in stainless steel or alloy steel construction
-
Wide Capacity Range — 0.05 to 10 tons measurement capability
-
Parallel Connection Optimized — Ideal for multi-cell weighing systems
Technical Specifications
-
High Accuracy Class — Suitable for precision weighing
-
Ultra-Low Profile — Space-saving design for compact installations
-
Overload Protected — Built-in safety features
Specifications
| Capacity | 0.05~2/2.5~5/7.5~10t |
| Combined Error | 0.02%F.S. |
| Non-linearity | 0.02%F.S. |
| Repeatability | 0.01%F.S. |
| Rated Output | 2.0±0.005/3.0±0.005mV/V |
| Zero Balance | ±1.00%mV/V |
| Insulation Resistance | ≧5000Ω/100VDC |
| Recommended Excitation | 10~15VDC |
| Material | Alloy Steel/Stainless Steel |
| Safe Overload | 150%F.S |
| Protection Class | IP67 (Customizable) |
| Operation Temp | -20~60°C |
| Cable Size | Ф5.4x6000mm(10000mm) |

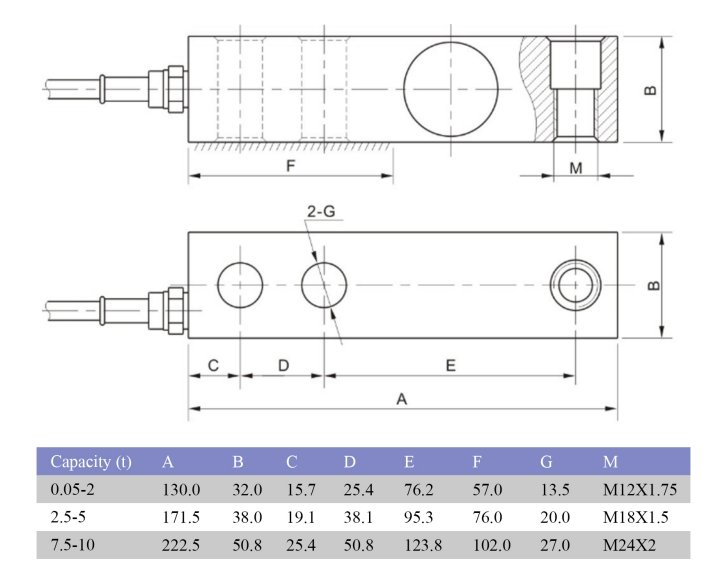

Dimensions (mm)

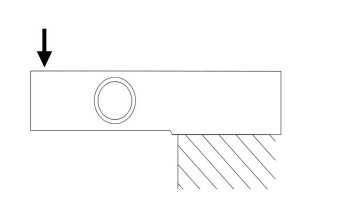

Load direction
Wiring code
