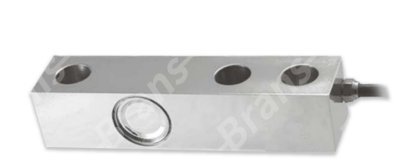

Heavy-Duty WL-124 Load Cell with Parallel Connection for Industrial Hopper/Tank Scales
Features & Applications
Core Technology
-
Shear Beam Load Cells — Precision-engineered for industrial weighing
-
Alloy Steel Construction — Superior strength-to-weight ratio
-
Optimized Parallel Connection — Enables multi-cell weighing systems
Performance Specifications
-
Capacity Range: 50kg to 300kg
-
Ultra-Low Profile Design — For space-constrained installations
-
High Overload Protection — Built-in safety margin
Industrial Applications
-
Transportation Weighing
✓ Ultrathin electronic truck scales
✓ Single-track crane scales -
Process Weighing Systems
✓ Hopper scales
✓ Tank weighing systems
✓ Batching and dosing equipment
Specifications
| Capacity | 50~300kg |
| Combined Error | ≤0.05%F.S |
| Non-linearity | ≤0.05%F.S |
| Repeatability | ≤0.02%F.S |
| Rated Output | 2.0±0.01mV/V |
| Zero Balance | ±1.00%mV/V |
| Insulation Resistance | ≧5000Ω/100VDC |
| Recommended Excitation | 10~15VDC |
| Material | Alloy Steel |
| Safe Overload | 150%F.S |
| Protection Class | IP66 (Customizable) |
| Operation Temp | -10~50°C |
| Cable Size | Ф 5.4x6000mm(Customizable） |

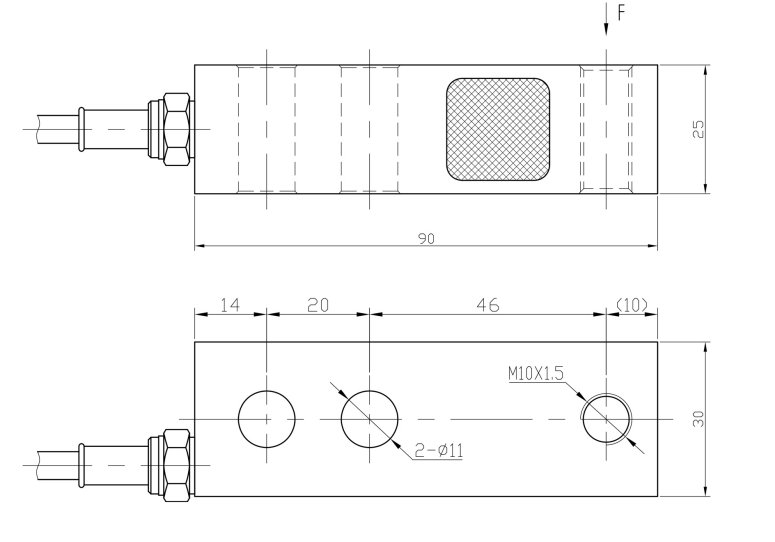

Dimensions (mm)

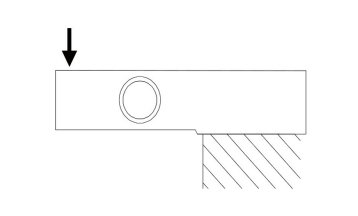

Load direction
Wiring code
