1. Name: B707 Single Point Load Cell,Precise Weighing of Small Masses up to 3 kg
2. DetailsThis small single point load cell is made of aluminum and features class C3 accuracy for weighing loads up to 3 kg. It is based on proven strain-gauge technology and is thus very precise. The load cells are available in different maximum capacity ranges. The B707 is ideal for batching, filling, and checkweighing of small packages, for instance, in the pharmaceutical or cosmetics as well as in the food and beverage industries. The single point load cell provides extremely precise measurement results, while offering an excellent price to performance ratio.
- Accuracy Class: C3 according to OIML R60
- Mindestteilungswert: bis 0,05 g
- Maximum capacities: 0,3 kg up to 5 kg

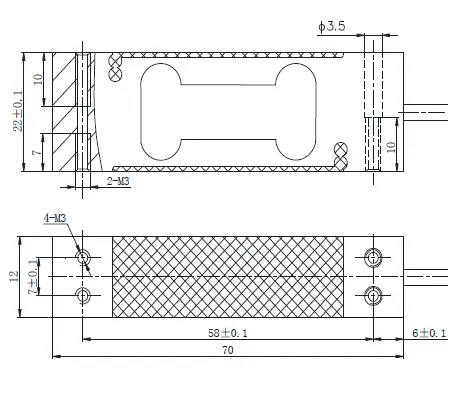

3. Design
4. Technical Datasheet
| Number | Specifications | Technique |
| 1 | Capacity | 300g,500g,1,1.5,2,3,5 kg |
| 2 | Accuracy class | C3 |
| 3 | Rated output | 1.0±10%mV/V(300g,500g) 2.0±10%mV/V(1~5kg) |
| 4 | Zero balance | ±2%F.S. |
| 5 | Non-linearity | 0.015%F.S. |
| 6 | Hysteresis | 0.015%F.S. |
| 7 | Repeatability | 0.015%F.S. |
| 8 | Creep(30min) | 0.0166%F.S. |
| 9 | Temp.effect on output | 0.017%F.S./10ºC |
| 10 | Temp.effect on zero | 0.02%F.S./10ºC |
| 11 | Input impedance | 405±5Ω |
| 12 | Output impedance | 350±3Ω |
| 13 | Insulation | ≥5000MΩ/100VDC |
| 14 | Recommended excitation | 5V |
| 15 | Maximum excitation | 10V |
| 16 | Compensated temp range | -10~40ºC |
| 17 | Operation temp range | -20~60ºC |
| 18 | Safe overload | 150%F.S. |
| 19 | Ultimate overload | 300%F.S. |
| 20 | Cable size | Φ4×350mm |
| 21 | Weight approx. | 0.1kg |
| 22 | Material | aluminum alloy |
| 23 | IP Class | IP65 |
| 24 | Max.platform size | 200mm×200mm |
5. Key features
(1) High accuracy
- Weighing system with C3 accuracy class up to 3,000 divisions
- Very small temperature coefficient of zero up to 0.0140%/10K, corresponding to a ratio of minimum verification interval Y = 10,000
- Off-center load compensation
(2) Excellent protection
- IP65 degree of protection
- Shielded connector plug
- CE-compliant immunity to electromagnetic interference
- Temperature compensation
- Nominal (rated) temperature range from -10 to +40 °C
(3) Plug & Weigh
- Fast integration through 1.5-m-long connection cable with edge connector
- Compact design, ideal for platform sizes up to 200 x 200 mm
- Available with four maximum capacities for weighing extremely small masses (0.3 kg, 0.5 kg, 1kg, 2 kg, 3 kg)
