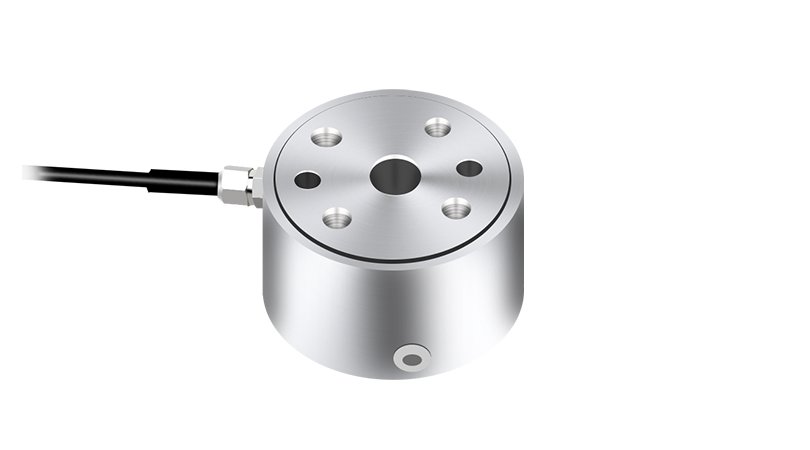

AT8705 Static Torque Sensor
Features and uses:
※ Static torque sensor
※ Compact structure for easy installation
※ Protection rating: IP65
※ For measuring torque values in static, discontinuous rotation.
-

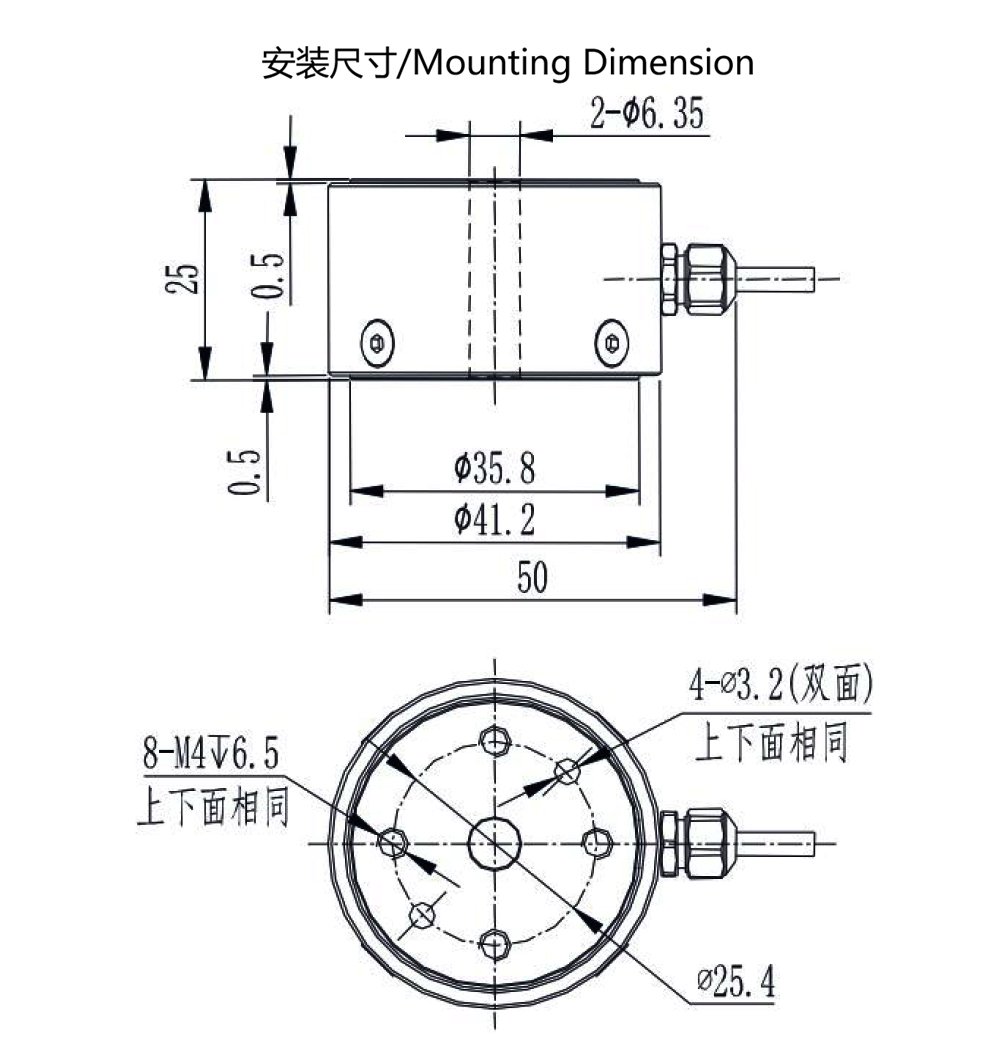

Double flange connection, easy installation
-
Applicable to measure and control of the static, non-continuous rotation torque force value
The TJN-5 static torque measurement sensor is suitable for the measurement and control of static and discontinuous rotation torque.
With the characteristics of double flange connection, the TJN-3 static torque measurement sensor is easy to install. Suitable for the measurement and control of static and discontinuous rotation torque.
It is suitable for precision control of robot arms, grinding and polishing of curved surfaces, precise carving of machining centers, and precision testing of medical equipment.
Material: Aluminum alloy
Features: Low height
Suitable for the measurement and control of static and discontinuous rotation torque.
- Aluminum alloy flange installation
- Range 0~20Nm, accuracy ±0.1%F.S
- Output: 1mV/V, 0~±5/10V, 4~20mA optional
Static Torque Sensor
D 38mm*H 31.8mm
Capacity: 0.1,0.2,0.5,1,2,3, 5,10N.m
Category: Static Reaction Torque Sensor
Product description:
Capacity ：1~10~500N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
Small size, light weight and easy for installation.
Application: suitable for static and non-continuous rotation torque force measurement.
Product description:
Capacity ：0-5-200N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
- Range: 0~5000N m
- Output: 1mv/V, 0~±5/10V, 4~20mA optional
- Accuracy: ≤±0.1%F.S
Product description:
Capacity ：0-0.5-150N.m
Material: aluminum alloy
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
