ATO-LCBU-DYHW-108 Subminiature Load Cell, Button type, 3kg/5kg/10kg/20kg/50kg/100kg
After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.
Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.
Button load cells have capacity range from 3kg, 5kg, 10kg, 20kg, 30kg, 50kg to 100kg. Load cell capacity can be customized according to customer requirements.
Specification
| Model | ATO-LCBU-DYHW-108 |
| Shipping Weight | 1kg |
| Capacity Range * | 0kg~100kg |
| Matched Display Controller | ATO-DPM-DY800 (Click it to the controller page) |
| Matched Transmitter | ATO-LCTR-OA (Click it to the transmitter page) |
| Accuracy | 0.5%F.S (linearity + hysteresis + repeatability) |
| Sensitivity | 0.5-1.0mV/V (3-5kg), 1.0-1.5mV/V (10-100kg) (Low range variations may differ) |
| Creep | ±0.2%F.S/30min |
| Zero Output | ±2%F.S |
| Temperature Effect on Zero | ±0.5%F.S/10℃ |
| Temperature Effect on Output | ±0.5%F.S/10℃ |
| Operating Temperature | -20℃~+80℃ |
| Input Impedance | 1000Ω |
| Output Impedance | 1000Ω |
| Insulation Resistance | ≥2000MΩ |
| Safety Overload | 150%F.S |
| Bridge Voltage (excitation voltage) | DC 5-15V |
| Material | Stainless steel |
| Protection Class | IP66 |
| Cable Length | 2m |
| Wiring | EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White |
Feature
- Compact & Durable: Small, versatile design with a robust 17-4 PH stainless steel build for strength and longevity.
- High Precision & Stability: Ensures accurate, consistent measurements with a reliable sensing chip.
- Effortless Installation: Quick, hassle-free setup for seamless integration.
- Resistant to Harsh Conditions: Withstands heat, wear, and environmental challenges for stable performance.
- Long-lasting & Reliable: Provides durable and dependable operation over time.
- Superior Wiring: 2.0mm diameter wires offer strong resistance to pulling and weathering, ensuring reliable signal transmission.

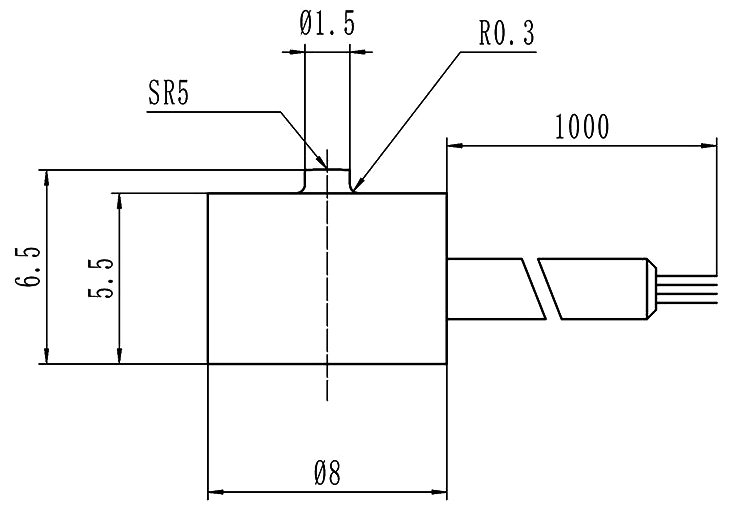

Dimension (unit: mm)
Wiring Method

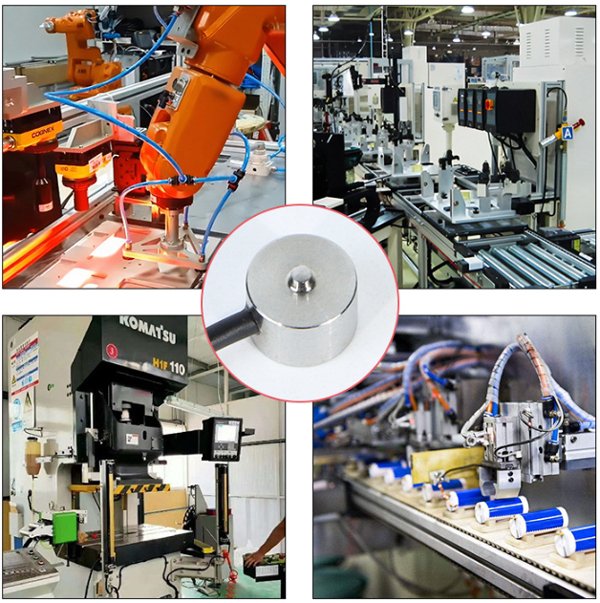

Application
Tips: Can a Subminiature Button Load Cell measure both compression and tension?
No, these load cells are specifically designed for compression force measurement. If you need to measure both tension and compression, a different type of load cell, such as an S-type load cell, would be more suitable.
