Amowell AWD21A Load Cell Weight Sensor 4~20mA RS232 RS485 Output LED Indicator with 0.05%F.S Precision IP65 Protection
| Supply Voltage | 9V-30VDC |
|---|---|
| Comprehensive Precision | ≤0.05%F.S |
| Display | Single-row 5-digit LED highlighting (0.56 inch) |
| Power Consumption | ＜5W |
| Sensor Excitation Voltage | 5VDC±2%,100mA (up to 6 350Ω sensors can be connected) |
| Input Sensitivity | .4-6mV/V |
| Output Rate | 10, 40, 640, 1280 times/second |
| Operation Temperature | -30-60℃ |
| On-off Output | 2 way, 250VAC/3A |
| Accuracy | 1/10000 |

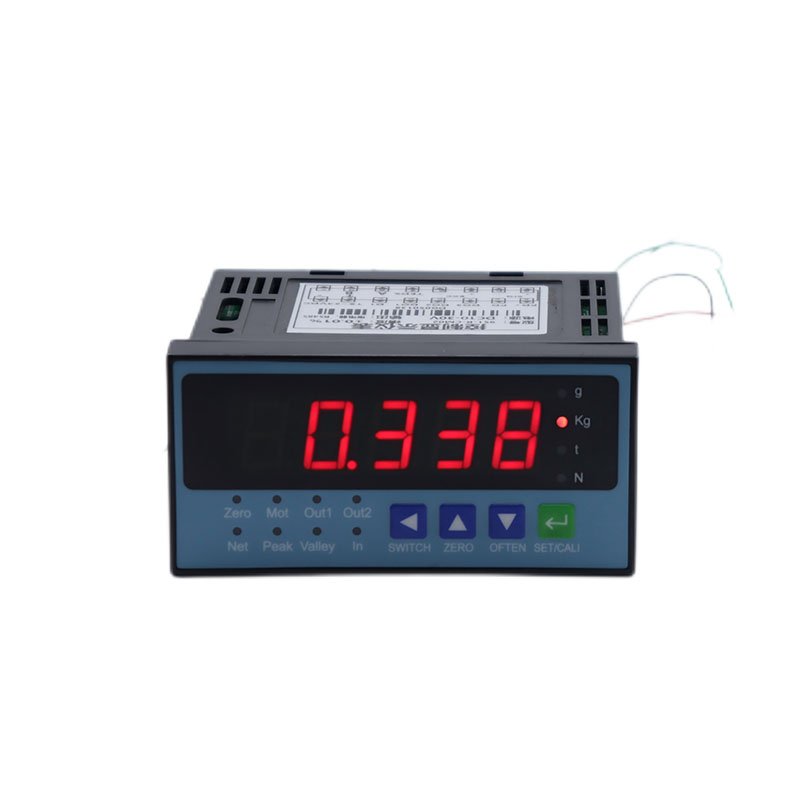

AWD21A Weighing Controller Indicator is used to measure force value.
1. Fast response to display the data, up to 1280 times/second;
2. Equipped with 2 relays or 3 transistors (Standard);
3. The basic model can add: Analog output 0-20mA, 4-20mA, 0-±10V; RS485/RS232.
Contact us if you need the Datasheet PDF.
Suitable for +5 VDC, +10 VDC, 0-20 mA and 4-20 mA inputs
Sampling rate: 120 readings per second
Nonlinearity < +0.01%
Industrial automation, medical, 3C, agriculture and animal husbandry, assembly measurement and various industrial system testing
Industrial automation, medical, 3C, agriculture and animal husbandry, assembly measurement and various industrial system testing
Model Number: LP7519
material:stainless steel
Brand Name:LOCOSC
The display uses a 24 bit A / D converter, can be connected to various types of sensors and transmitters to achieve the pressure, flow, level, composition analysis and volume measurements, and other physical and mechanical parameters, display, alarm monitoring, data acquisition and recording.
Baud rate 19200
Industrial automation, medical, 3C, agriculture and animal husbandry, assembly measurement and various industrial system testing
Industrial automation, medical, 3C, agriculture and animal husbandry, assembly measurement and various industrial system testing
