AS41A belong to Low Profile Compression Disk Load cell, suitable for measuring compression and tension force, The standard material is high quality 40CrNiMoA alloy steel
| Capacity | 500kg-100Ton |
|---|---|
| Creep | ±0.05%F.S/30min |
| Material | Alloy steel |
| Sensitivity | 2.0mv/v |
| Certificate | RoHS, CE |
Introducing our AS41C High-Performance Torsion Ring Load Cell, designed as a superior alternative to the HBM RTN model. This load cell features a robust torsion ring structure engineered to deliver precise force measurement and outstanding reliability in demanding industrial environments. It is ideally suited for applications requiring high accuracy, stability, and seamless integration into existing systems.
| Capacity | 10-47kN,100-220kN, 330kN, 470-680kN, 1000-1500kN |
|---|---|
| Accuracy | 0.05~0.1%FS |
| Rated output | 2.85mV/V |
| Non-linearity | ±0.05%F.S |
| Creep | 0.05%/30min |
| Zero balance | ±1%mV/V |
| Input resistance | 4450±200Ω |
| Output resistance | 4000±10Ω |
| Protection Class | IP68 |
| Insulation Resistance | ≥5000MΩ |
| Temp. effect on zero | ±0.05%F.S/10℃ |
| Temp. effect on span | ±0.05%F.S/10℃ |

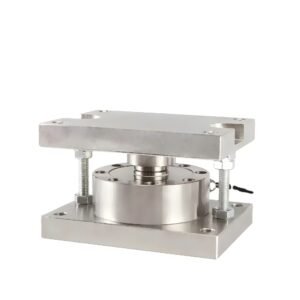

Our AM42A high-precision weighing module is specifically designed for applications requiring accurate weight measurement in silos, reactors, and container weighing systems. Engineered for high-capacity loads and harsh industrial environments, it ensures stable and reliable performance for process control, inventory management, and automated weighing solutions.
| Capacity | 5-70kN, 100-250kN, 300-500kN, 600-1000kN,2000kN, 3000kN |
|---|---|
| Accuracy | 0.05%~0.1%F.S |
| Rated output | 2.0mV/V |
| Non-linearity | ±0.03%F.S |
| Creep | 0.05%/30min |
| Zero balance | ±1%mV/V |
| Input resistance | 380±30Ω or 750±150Ω |
| Output resistance | 350± 3Ω or 700 ± 5Ω |
| Protection Class | IP66（IP67-Stainless Steel） |
| Insulation Resistance | ≥5000MΩ |
| Temp. effect on zero | ±0.05%F.S/10℃ |
| Temp. effect on span | ±0.05%F.S/10℃ |
| Safety overload | 150%F.S |
| Reference excitation voltage | 10V DC |
| Material | Alloy Steel or Stainless Steel(made in order) |
