The KWR46 series sensor is a small-size compact six-axis force sensor. It has characristics with light weight and small volumn. Its measuring range is around 50N to 200N, and could be customized as your needs. Our product has high anti-overload protection ability, it can withstand 300% overload.The small-size sensor widely used in scientific research and medical testing fields. For this series model small volumn that it can’t be embedded in circuit board moduel, so we will provide a signal acquisition box according to the communication protocol version you need.

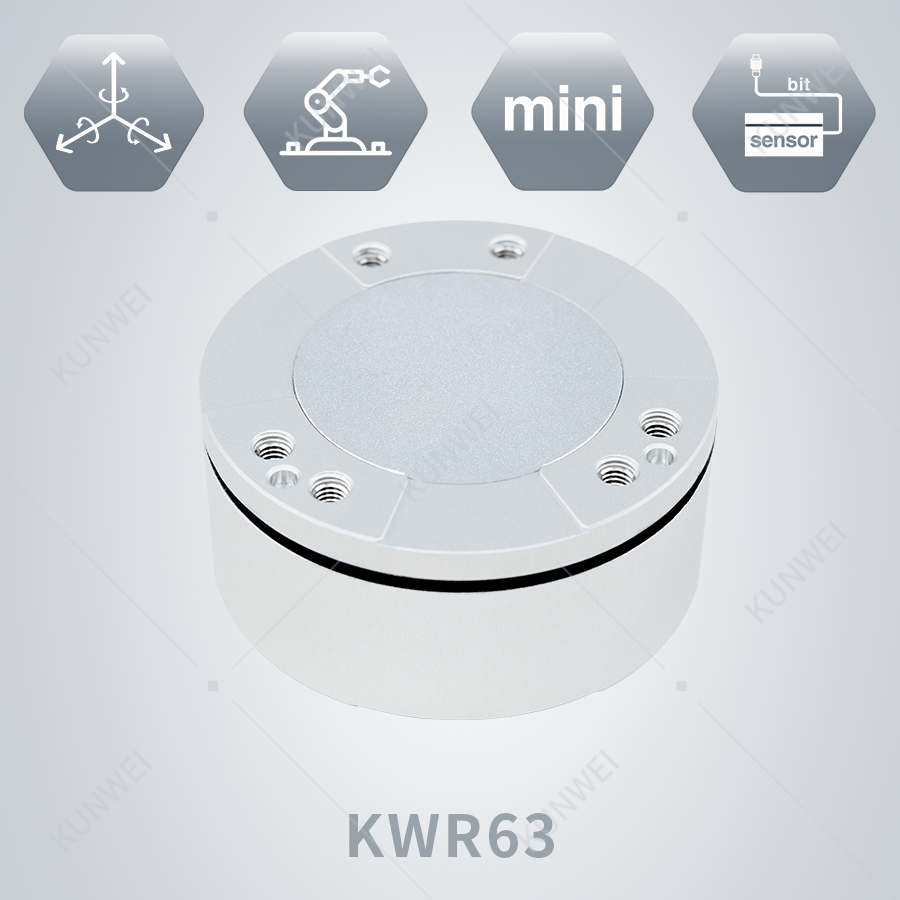

The KWR63 series is a small circle volumn Multi Axis load cell, which is close to the outer diameter of the end of most cooperative robots. The material is aluminum alloy, and the f/t sensor has the characteristics of high overload, high rigidity and high sensitivity.It support wide communication protocol, such as RS422, RS485, Industrial Ethernet, USB, CAN,etc.
This sensor is suitable for most domestic and foreign cooperative robots. It is an embedded high-precision six-axis force sensor that our company hot sells. It uses silicon strain gauge, based on the principle of strain electrical measurement to convert the load into voltage signal, combined with six axis joint calibration technology to make the product achieve higher accuracy and precision. It is widely used in 3C testing, medical testing, drag teaching, automobile testing, and other fields.
KWR75EC series is a kind of hex force torque sensor which integrated with industrial Ethernet moduel, so that the product could better support terminal equipment in various industries. The customer needn’t to configure the serial port server box, which reduces the space occupation and the complexity of the connection.
New research and development parallel structure design, low coupling, internal digital decoupling, strong anti-interference ability, suitable for robot joint sensors.
Material: 17-4PH Stainless Steel Aluminum Alloy Customized specifications
Features: Internal digital decoupling Anti-interference ability
Communication : EtherCAT Ethernet
The 6 axis wheel sensor measures the wheel forces and moments. The six components of the total wheel load are structurally decoupled to provide independent outputs, so post-data correction becomes unnecessary. The low voltage output is amplified by an on-board amplifier module (41130-EB-00). The amplified signal is then wired to a slip ring (41150-RING-00), such that the data can be transmitted to the data acquisition system (iDAS). The sensor fits 13” to 21” wheel.
The loadcell is completely sealed to provide excellent environment protection, and could be used for on-road measurement on a rainy day.
Engineering service is provided for the wheel modification and the design of relevant adaptors to replicate the geometry of the original wheel.
M35XX is patented low-profile 6 axis force/torque load cell series, featuring extra thin profile, light weight, and high resolution. The thinnest model is 7.5mm., the thinnest commercially available. This series is popular in applications with very limited space like robotic prosthetics, biomechanics, humanoid robots, and etc.
Diameter: 30mm – 70mm
Capacity: 250 – 5000N
Non-linearity: 1%
Hysteresis: 1%
Crosstalk: 3%
Overload: 300%
Protection: IP60
Signals: Analog outputs (mv/V)
Decoupled method: Matrix decoupled
Material: Stainless steel
Calibration report: Provided
Cable: Included
M3612X series is a high-performance 6 axis force platform for motion analysis. Applying the same advanced strain gauge technology utilized in our 6 axis loadcells, SRI force platforms provide accurate measurements in all forces and moments from the test subject simultaneously.
M37XX series includes the smallest commercial 6 axis force/torque sensors in the world. It is designed for robotics, finger-force research, and general testing.
Diameter: 15mm – 135mm
Capacity: 50 – 6400N
Non-linearity: 0.5%
Hysteresis: 0.5%
Crosstalk: <2%
Overload: 300%
Protection: IP60; IP68
Signals: Analog outputs; Digital outputs
Decoupled method: Matrix-decoupled
Material: Stainless steel
Calibration report: Provided
Cable: Included
M38XX series features high resolution and high accuracy at low capacities. It is designed for applications that require high precision like assembly, products testing, drone testing and wind-tunnel testing.
Diameter: 45mm – 200mm
Capacity: 40 – 1040N
Non-linearity: 0.5%
Hysteresis: 0.5%
Crosstalk: <2%
Overload: 600%-1000%
Protection: IP60; IP65
Signals: Analog outputs
Decoupled method: Matrix-decoupled
Material: Stainless steel
Calibration report: Provided
Cable: Included
M39XX series features in high strength and large capacity up to 291600N. Many models in this series can be made to IP68 version for total protection against water ingress. It is designed for applications like robotic grinding and polishing, water research, biomechanics testing, product testing, and etc.
Diameter: 60mm – 135mm
Capacity: 5400 – 291600N
Non-linearity: 1%
Hysteresis: 1%
Crosstalk: 5%
Overload: 150%
Protection: IP60; IP68
Signals: Analog outputs
Decoupled method: Structurally decoupled
Material: Stainless steel
Calibration report: Provided
Cable: Included
The M43XX series is designed specifically for industrial robotic applications. The series provides a large range of force and torque capacities to select from. It has various versions for different requirements, for example, integrated low-noise amplifier version, integrated data acquisition system version, hollow and solid versions, IP64 and IP65 versions, and different communication interface versions.
Diameter: 60mm – 280mm
Capacity: 50 – 30000N
Non-linearity: 0.5%
Hysteresis: 0.5%
Crosstalk: <2.5%
Overload: 300%-1000%
Protection: IP60; IP64; IP65
Signals: Analog outputs; Digital outputs
Decoupled method: Specified in spec sheet
Material: Stainless steel
Calibration report: Provided
Cable: Included
The M43XX series is designed specifically for industrial robotic applications. The series provides a large range of force and torque capacities to select from. It has various versions for different requirements, for example, integrated low-noise amplifier version, integrated data acquisition system version, hollow and solid versions, IP64 and IP65 versions, and different communication interface versions.
Diameter: 60mm – 280mm
Capacity: 50 – 30000N
Non-linearity: 0.5%
Hysteresis: 0.5%
Crosstalk: <2.5%
Overload: 300%-1000%
Protection: IP60; IP64; IP65
Signals: Analog outputs; Digital outputs
Decoupled method: Specified in spec sheet
Material: Stainless steel
Calibration report: Provided
Cable: Included
The ZM6DW is 6 axis force torque load cell. The load cell Fxyz and Mxyz utilize independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.
Compact size
The ZM6DW is 6 axis force torque load cell. The load cell Fxyz and Mxyz utilize independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.
Compact size
