Suitable for the measurement of multi-directional forces in robot arms, robots, aircraft, medical technology, shipbuilding, etc.

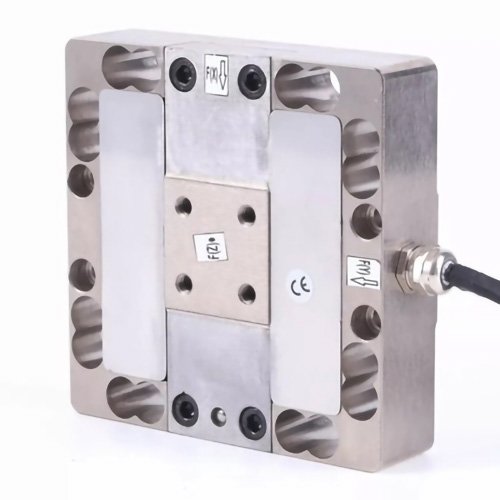

XYZ 50N 100N 200N 500N 1000N 2000N 5000N IP66 3 Axis Force Sensor FA704 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA704 can be used to measure 3 axis force, its X axis, Y axis and Z axis force range are all the same 50N,100N,200N,500N,1000N,2000N and 5000N capacity, its Rated output is 1.0mV/V, its Zero Balance range is ±2%F.S..

Fibos force sensor multiple range load cell FA704C can measure forces in three vertical axes at the same time. The 3-axis load cell is available in a capacity range from 50N to 5000N for all three axes. The three-dimensional force sensor is based on the strain transducer and adopts the resistance strain transducer principle. The 30mm height of this multi-axis load cell allows it to be used in many situations

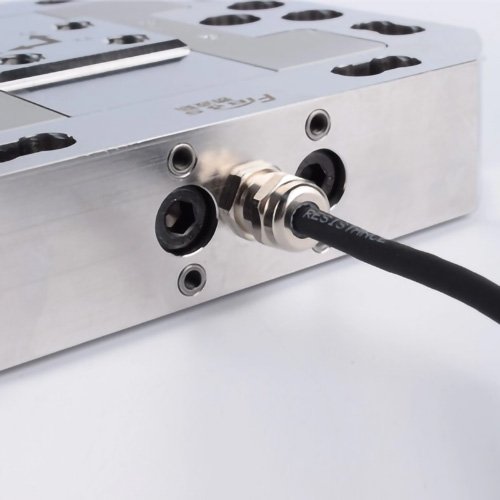

XYZ 5t Stainless Steel Customized Non-Standard 3 Axis Force Sensor FA704D is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA704D belongs to FA704, it can be used to measure three-axis force, its X axis,Y axis and Z axis force are the same 5t capacity, its Rated output range is ≈1.0±10%mV/V, and its Zero Balance range is ±1%mV/V.

Suitable for the measurement of multi-directional forces in robot arms, robots, aircraft, medical technology, shipbuilding, etc.

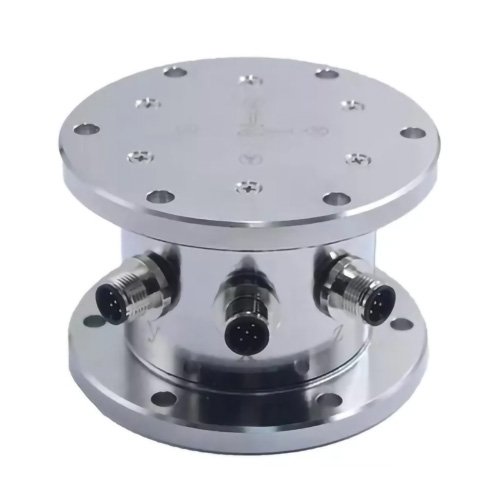

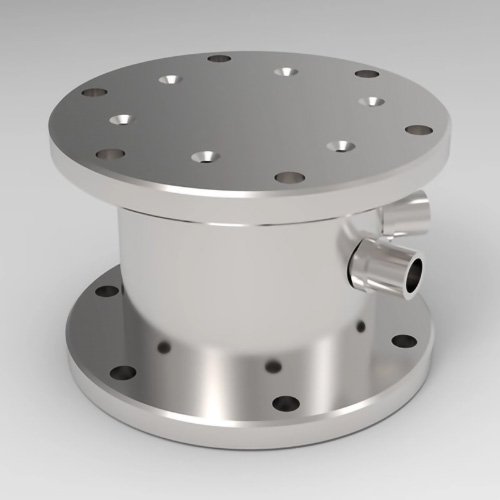

XYZ 50-300kg Stainless Steel 3 Axis Force Sensor FA728 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA728 can be used to measure 3-axis force, its X axis,Y axis,Z axis force ranges the same from 50kg up to 300kg capacity, its Rated output range is 1.0±10%mV/V, and its Zero Balance range is ±1%mV/V.

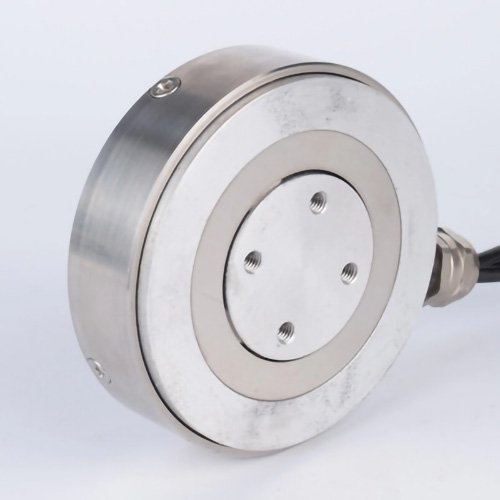

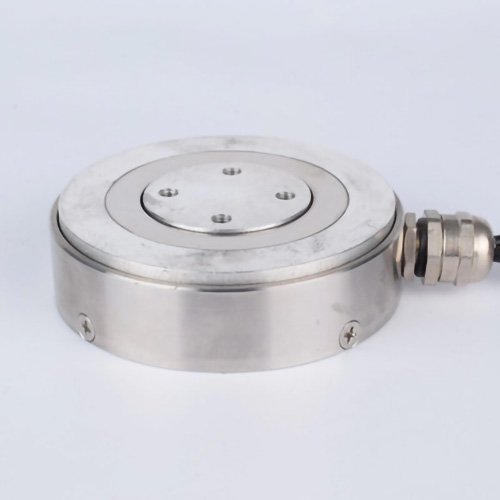

XYZ 10,50,100,500kg Or Customized 3 Axis Force Sensor FA730 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA730 can be used to measure 3 axis force, its X axis,Y axis and Z axis force range are all the same 10kg,50kg,100kg and 500kg or customized capacity, its Creep(30min),Hysteresis and Repeatability all the same ≤0.02%F.S. or can be customized, its Hysteresis ≤0.02%F.S. or can also be customized.

XYZ 0.5,1,3,5,10,30kN Or Customized 3 Axis Force Sensor FA731O belongs to FA731, 3 Axis Force Sensor FA731O can be used to measure three-axis force, its X axis,Y axis,Z axis force range all are same 0.5kN,1kN,3kN,5kN,10kN,30kN or customized capacity, its Creep(30min) and Repeatability both ≤0.08%F.S. or can be customized.

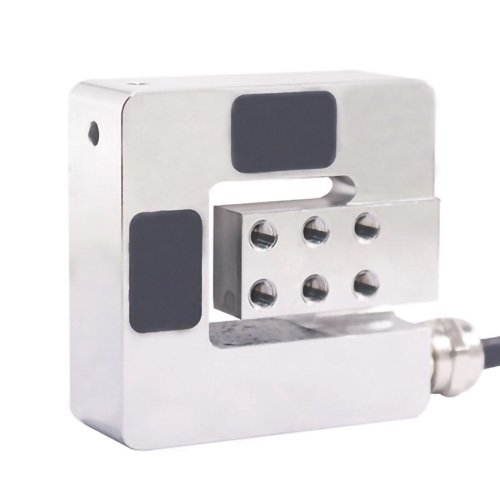

XYZ 10-50kg3 Stainless Steel 3 Axis Force Sensor FA742 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA742 can be used to measure 3-axis force, its X axis,Y axis,Z axis force range are the same 10kg,20kg,30kg and 50kg capacity, its Creep(30min),Non-linearity and Repeatability all ≤0.1%F.S., its Hysteresis ≤0.2%F.S..

Fx,Fy=20kN,Fz=100kN. Stainless steel Multi-axis Force Sensor FA731 is a model of our brand FIBOS FA7-Series, it belongs to FA731 which is in our three- axis force sensor.
