Suitable for dynamic, bearing, torque wrench and other testers

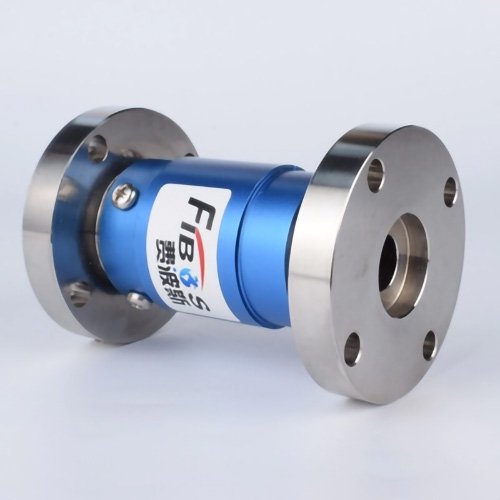

0.5,1,2,3,5,10,20,30,50,100,200,300,500kN.m or customized Static Torque Sensor Force Torque Sensor FA625A belongs to FA625 which is in Static Torque Sensor of Force Torque Sensor category, FA625A can be used to measure Static Torque force 0.5kN.m,1kN.m,2kN.m,3kN.m,5kN.m,10kN.m,20kN.m,30kN.m,50kN.m,100kN.m,200kN.m,300kN.m and 500kN.m or customized capacity.
0.5,1,2,3,5,10,20,30,50,100,200,300,500kN.m or customized Static Torque Sensor Force Torque Sensor FA625A belongs to FA625 which is in Static Torque Sensor of Force Torque Sensor category, FA625A can be used to measure Static Torque force 0.5kN.m,1kN.m,2kN.m,3kN.m,5kN.m,10kN.m,20kN.m,30kN.m,50kN.m,100kN.m,200kN.m,300kN.m and 500kN.m or customized capacity.
100,200,1000,2000,3000N.m Or Customized Static Torque Sensor Force Torque Sensor FA625B belongs to FA625 which belongs to Static Torque Sensor of Force Torque Sensor category, FA625B can be used to measure Static Torque force 100N.m,200N.m,1000N.m,2000N.m and 3000N.m or customized capacity, its Cable size is ⌀6x4500mm or can be customized.
100,200,1000,2000,3000N.m Or Customized Static Torque Sensor Force Torque Sensor FA625B belongs to FA625 which belongs to Static Torque Sensor of Force Torque Sensor category, FA625B can be used to measure Static Torque force 100N.m,200N.m,1000N.m,2000N.m and 3000N.m or customized capacity, its Cable size is ⌀6x4500mm or can be customized.
KWR116 series is designed specifically for industrial robotic applications. The series provides a wide range of force and torque capacities to select from. It has various versions for different requirements.The built-in high-precision data acquisition module can combine with the six-axis joint decoupling algorithm to achieve higher accuracy and precision of the sensor.
KWR116 series is designed specifically for industrial robotic applications. The series provides a wide range of force and torque capacities to select from. It has various versions for different requirements.The built-in high-precision data acquisition module can combine with the six-axis joint decoupling algorithm to achieve higher accuracy and precision of the sensor.
The KWR168 series is a six axis force sensor with a large range, capable of carrying a force of 8000N. It is generally used at the end of industrial robots and meets the needs of most industrial robotic arms.
KWR200 series six-axis torque sensor is a large torque range and embedded six-axis force sensor with higher accuracy and precision , which can be applied to the base sensor of cooperative robots and also meet the use needs of most industrial mechanical arms. This transducer is widely used in building model wind load test, medical testing, automobile testing, 3C testing, industrial automation, scientific research and other industries.
The KWR46 series sensor is a small-size compact six-axis force sensor. It has characristics with light weight and small volumn. Its measuring range is around 50N to 200N, and could be customized as your needs. Our product has high anti-overload protection ability, it can withstand 300% overload.The small-size sensor widely used in scientific research and medical testing fields. For this series model small volumn that it can’t be embedded in circuit board moduel, so we will provide a signal acquisition box according to the communication protocol version you need.
KWR50N15 torque sensor is a high-precision product that can achieve direct quantity output in both analog and digital formats. The main dimensional parameters are an outer diameter of 50mm, an inner diameter of 12mm, a height of 17mm, and a measurement range of 15N · m. Suitable for fields such as robot joints, collaborative robotic arms, and precision medical equipment, precise measurement and control of torque is a key link in ensuring equipment performance, improving production efficiency, and ensuring safe operation. The KWR50N15 torque sensor, with advanced measurement technology and reliable design, accurately senses and outputs torque signals, providing strong support for various torque monitoring devices.
Torque sensor （KWR60N49）is a high-precision product that uses digital output. The outer diameter of this product is 60mm, the height is 21mm, and it works at the rated range of 49 Nm. Its accuracy can reach at least 0.5% F.S., and its nonlinear and hysteresis performance can be controlled within the accuracy range. In addition, after finite element analysis and verification, the sensor can withstand a lateral ultimate bending moment of 60 Nm, and its strong lateral torsional bearing capacity ensures stability under normal use. The torsional stiffness is maintained within 57 kNm/Rad, and the maximum torsional angle does not exceed 0.04 °. The axial ultimate load of 2 kN and the lateral ultimate load of 3 kN perform equally well. The excellent compressive and tensile performance lays a solid foundation for the digital signal output of the product in the direction of the rated torsional moment, thereby demonstrating outstanding performance. The sensor can operate within a wide temperature range of -10~80 ℃, with a temperature span of up to 90 ℃. Even in extremely harsh temperature environments, our sensor can maintain excellent performance. The product design is based on a solid theoretical foundation, and the test results have extremely high credibility.
