1.High accuracy and simple installation
2.Stainless steel construction
3.Good long-term stability and high comprehensive precision
4.Calibration in mV/V Low profile design
5.It is composed of two boards, the top plate, the base plate, the sensor, the support column, and the support bolt. The characteristic of the weighing module is that it is not limited by the site. Generally, the hopper scale is three or four corners, or on both sides of the tank container, and does not occupy an area.
6.Weighing modules are generally used in weighing applications for large material tanks, material bin scales, reaction vessels, hoppers, and vertical tanks.
Cantilever beam weighing sensor, also known as shear beam weighing sensor, is mostly rectangular in shape, and the strain zone is in the middle of the sensor. Cantilever beam weighing sensor has the characteristics of simple structure, convenient installation, reliable use, long service life and high cost performance. Cantilever beam weighing sensors have been widely used in truck scales,main axle load meters, small scale and platform scales
Cantilever beam weighing sensor, also known as shear beam weighing sensor, is mostly rectangular in shape, and the strain zone is in the middle of the sensor. Cantilever beam weighing sensor has the characteristics of simple structure, convenient installation, reliable use, long service life and high cost performance. Cantilever beam weighing sensors have been widely used in truck scales,main axle load meters, small scale and platform scales
Cantilever beam tension sensor is specially designed for single-side frame machines, which are used in textile, wire and other industries. It can detect small tension changes and provide excellent resolution and sensitivity, and its performance in industrial applications is very outstanding.

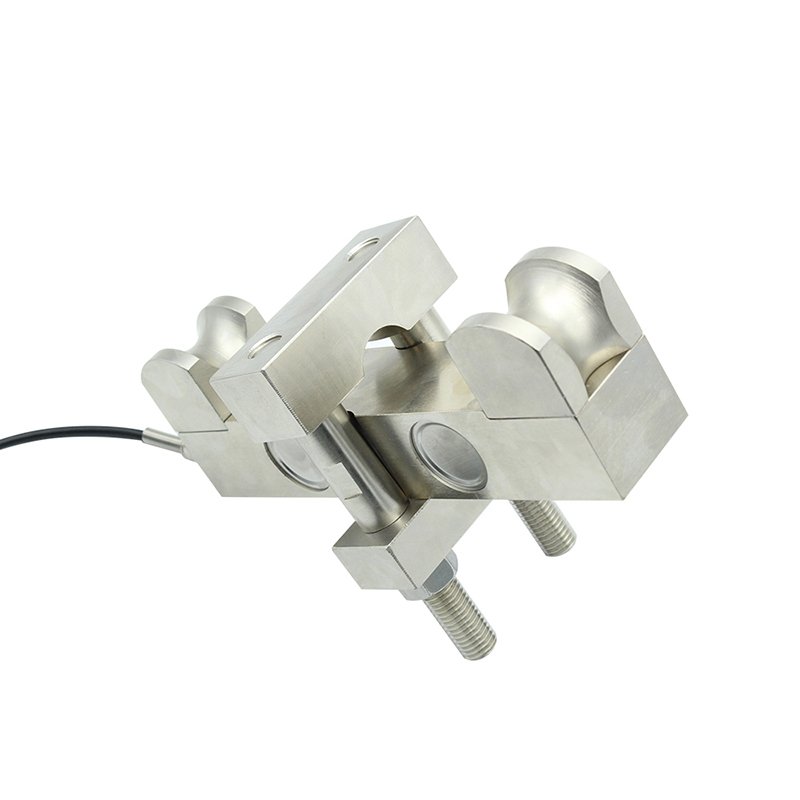

The lateral pressure tension sensor is a double-hole shear beam structure, which is convenient to install and use, simple to operate and easy to maintain, and is specially used to measure the tension of steel wire rope. The wire rope is fixed on the sensor through U-bolt. When the wire rope is pulled, the force is applied to the sensor through the steering wheel.
It is mainly suitable for the measurement and control of wire rope tension, overload control and process display in lifting, water conservancy, coal mine and other industries.
1.The lateral pressure tension sensor is a double-hole shear beam structure, which is convenient to install and use, simple to operate and easy to maintain, and is specially used to measure the tension of steel wire rope. The wire rope is fixed on the sensor through U-bolt. When the wire rope is pulled, the force is applied to the sensor through the steering wheel.
2.It is suitable for lifting, water conservancy, mining industry and all kinds of tension testing industries. it can be used for tension measurement or long-term monitoring of wire rope.
3.Its characteristics are as follows：High accuracy、 Stable performance、Suitable for wire rope tension force measurements.
◆ Capacity ：3~5000kg
◆ Material: stainless steel
◆ Defend grade: IP67
◆ Low profile and compact structure
SOPZl-107 is suitable for tension measurement of various optical fibers, yarns, chemical fibers, metal wires, wires, cables, adhesive tapes,steel belts. It is widely used in the fields of electronics, chemical industry, textile, paper making, machinery, etc. It has high measurement accuracy, reliability and stability in the field of tension measurement. The sensor has a built-in overload protection mechanism, and each sensor is rigorously tested before leaving the factory, thus ensuring the measurement accuracy,
stability and reliability of the product. It is the choice for high-performance tension control applications in continuous material processing and production.
Features:
4. Compact size
Features:
4. Compact size
The ZM6DW is 6 axis force torque load cell. The load cell Fxyz and Mxyz utilize independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.
Compact size
The ZM6DW is 6 axis force torque load cell. The load cell Fxyz and Mxyz utilize independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.
Compact size
The ZMBH is tension load cell alloy steel IP67 protected load cell. The capacity ranges from 2t-70t. It is widely used in crane scales.
Nickel plated alloy steel
The ZMBH is tension load cell alloy steel IP67 protected load cell. The capacity ranges from 2t-70t. It is widely used in crane scales.
Nickel plated alloy steel
Features
Capacity 10kg 50kg 100kg 200kg 300kg
Features
Capacity 10kg 50kg 100kg 200kg 300kg
