- Measuring range: 0-2m
- Weight: 1.3kg (rope traction mechanism)
- Weight (pulling rope): 7.1g/m
- Length of each turn of the rope: 200mm
- Actual length of the rope: 2.2m
- Housing Material: Aluminum (Anodized), Die-cast Zinc
- Spring resilience: 6-14N
- Pull rope diameter: 1.2mm
- Protection class: IP64
- Rope speed: 40m/s²
- Product Name: Industrial Precision Encoder Cable Box BSL-MA80 Series
- Can be customized on request
- Measuring range: 0-2m
- Weight: 1.3kg (rope traction mechanism)
- Weight (pulling rope): 7.1g/m
- Length of each turn of the rope: 200mm
- Actual length of the rope: 2.2m
- Housing Material: Aluminum (Anodized), Die-cast Zinc
- Spring resilience: 6-14N
- Pull rope diameter: 1.2mm
- Protection class: IP64
- Rope speed: 40m/s²
- Product Name: Industrial Precision Encoder Cable Box BSL-MA80 Series
- Can be customized on request
- Measuring range: up to 3000mm
- Pull Speed: Max 1m/s
- Wire diameter specification: 1mm highly flexible 304 stainless steel wire rope
- Protection class: IP54
- Product name: Cable displacement sensor CWP-M4000 series
- Can be customized on request
- Measuring range: up to 3000mm
- Pull Speed: Max 1m/s
- Wire diameter specification: 1mm highly flexible 304 stainless steel wire rope
- Protection class: IP54
- Product name: Cable displacement sensor CWP-M4000 series
- Can be customized on request
- Measuring range: 0-3m
- Weight: 1.5kg (rope traction mechanism)
- Length of each turn of the rope: 200mm
- Actual length of the rope: 3.2m
- Spring resilience: 6-14N
- Pull rope diameter: 1.2mm
- Protection class: IP64
- Rope speed: 40m/s²
- Product Name: Industrial Precision Encoder Cable Box BSL-MA80-03 Series
- Can be customized on request
- Measuring range: 0-3m
- Weight: 1.5kg (rope traction mechanism)
- Length of each turn of the rope: 200mm
- Actual length of the rope: 3.2m
- Spring resilience: 6-14N
- Pull rope diameter: 1.2mm
- Protection class: IP64
- Rope speed: 40m/s²
- Product Name: Industrial Precision Encoder Cable Box BSL-MA80-03 Series
- Can be customized on request
- Measuring range: up to 1000mm
- Measuring wheel circumference: 100mm
- Working pull: 5N
- Linearity: 0.1%
- Weight: <0.5KG
- Protection class: IP54
- Rope speed: maximum 0.6m/s
- Product Name: Pull Wire Displacement Sensor CWP-S1000 Series
- Can be customized on request
- Measuring range: up to 1000mm
- Measuring wheel circumference: 100mm
- Working pull: 5N
- Linearity: 0.1%
- Weight: <0.5KG
- Protection class: IP54
- Rope speed: maximum 0.6m/s
- Product Name: Pull Wire Displacement Sensor CWP-S1000 Series
- Can be customized on request
- Measuring range: up to 1500mm
- Measuring wheel circumference: 150mm
- Speed: Max 0.8m/s
- Pull rope tension: 5N
- Weight: <0.7KG
- Linearity: 0.1%
- Protection class: IP54
- Product name: Cable displacement sensor CWP-S1500 series
- Can be customized on request
- Measuring range: up to 1500mm
- Measuring wheel circumference: 150mm
- Speed: Max 0.8m/s
- Pull rope tension: 5N
- Weight: <0.7KG
- Linearity: 0.1%
- Protection class: IP54
- Product name: Cable displacement sensor CWP-S1500 series
- Can be customized on request
- Measuring range: up to 2000mm
- Measuring wheel circumference: 200mm
- Speed: Max 0.8m/s
- Pull rope tension: 5N
- Protection class: IP54
- Rope speed: maximum 0.6m/s
- Product Name: Pull Wire Displacement Sensor CWP-S2000 Series
- Can be customized on request
- Measuring range: up to 2000mm
- Measuring wheel circumference: 200mm
- Speed: Max 0.8m/s
- Pull rope tension: 5N
- Protection class: IP54
- Rope speed: maximum 0.6m/s
- Product Name: Pull Wire Displacement Sensor CWP-S2000 Series
- Can be customized on request
- Measuring range: up to 3000mm
- Measuring wheel circumference: 300mm
- Pulling speed: maximum 0.6m/s
- Pull rope tension: 5-10N
- Weight: <1KG
- Wire diameter specification: 0.8mm highly flexible 304 stainless steel wire rope
- Linearity: 0.25%
- Protection class: IP54
- Material: aluminum alloy
- Resolution: Essentially infinite
- Accuracy: 0.05%F.S.
- Rope speed: maximum 0.6m/s

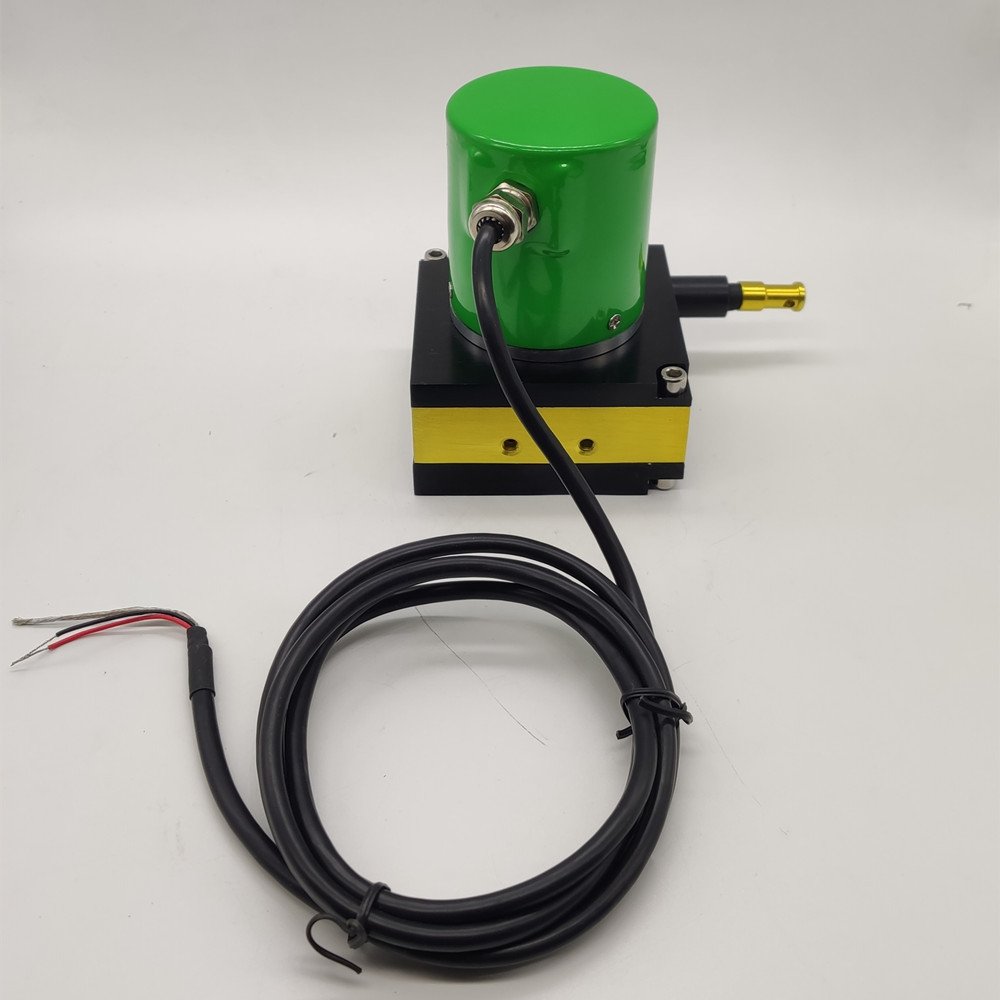

- Product Name: Pull Wire Displacement Sensor CWP-S3000 Series
- Can be customized on request
- Measuring range: up to 3000mm
- Measuring wheel circumference: 300mm
- Pulling speed: maximum 0.6m/s
- Pull rope tension: 5-10N
- Weight: <1KG
- Wire diameter specification: 0.8mm highly flexible 304 stainless steel wire rope
- Linearity: 0.25%
- Protection class: IP54
- Material: aluminum alloy
- Resolution: Essentially infinite
- Accuracy: 0.05%F.S.
- Rope speed: maximum 0.6m/s
- Product Name: Pull Wire Displacement Sensor CWP-S3000 Series
- Can be customized on request
- Measuring range: up to 400mm
- Measuring wheel circumference: 40mm
- Speed: Max 0.6m/s
- Pull rope tension: 3N
- Weight: <0.5KG
- Protection class: IP54
- Material: aluminum alloy
- Vibration: 10Hz to 2000Hz
- Wire diameter specification: 0.6mm highly flexible 304 stainless steel wire rope
- Product name: Cable displacement sensor CWP-S400 series
- Can be customized on request
- Measuring range: up to 400mm
- Measuring wheel circumference: 40mm
- Speed: Max 0.6m/s
- Pull rope tension: 3N
- Weight: <0.5KG
- Protection class: IP54
- Material: aluminum alloy
- Vibration: 10Hz to 2000Hz
- Wire diameter specification: 0.6mm highly flexible 304 stainless steel wire rope
- Product name: Cable displacement sensor CWP-S400 series
- Can be customized on request
