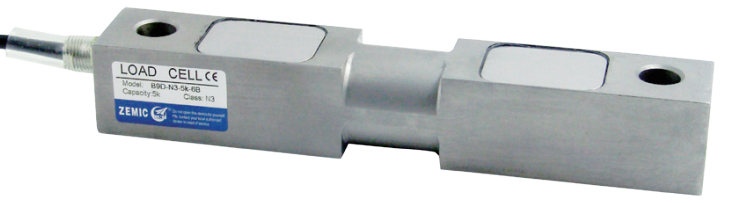

H9D Dual Shear Beam Load Cell Zemic Load Cell

Product Description


Short Description:

◎Nickel plated alloy steel IP67 dual shear beam load cell；

◎High accuracy；

◎Suitable for truck and track scales and other heavy weighing devices；

◎Sealed construction；

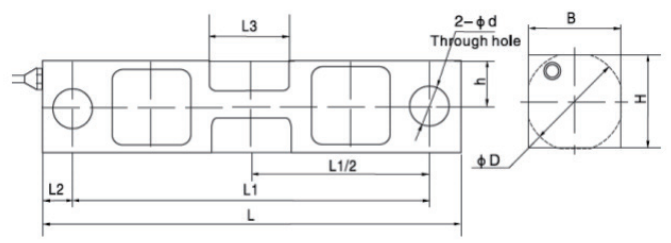

Dimensions in mm：


Dimension Capacity L L1 L2 H h B ΦD Φd
1Klb-5Klb 190.5 158.75 15.9 30.99 16.76 30.99 31.5 12.7
(7.50) (6.25) (0.63) (1.22) (0.66) (1.22) (1.24) (0.50)
10Klb-35Klb 222.25 190.5 15.9 49.15 24.58 36.45 50.8 20.57
(8.75) (7.50) (0.63) (1.94) (12.67) (1.44) (2.00) (0.81)
50Klb-75Klb 342.9 292.1 25.4 74.68 37.37 61.98 75.95 33.32
(13.50) (11.50) (1.00) (2.94) (1.47) (2.44) (2.99) (1.31)

Available models：

Capacity Accuracy Full article description Capacity Accuracy Full article description
1Klb N3 H9D-N3-1K-6B 15 Klb N3 H9D-N3-15K-6B
1.5Klb N3 H9D-N3-1.5K-6B 20 Klb C3/C4/C5 H9D-C3/C4/C5-20K-6B
2Klb N3 H9D-N3-2K-6B 25 Klb C3/C4/C5 H9D-C3/C4/C5-25K-6B
2.5Klb N3 H9D-N3-2.5K-6B 35 Klb C3/C4/C5 H9D-C3/C4/C5-35K-6B
4Klb N3 H9D-N3-4K-6B 50 Klb C3/C4/C5 H9D-C3/C4/C5-50K-6B
5Klb N3 H9D-N3-5K-6B 75 Klb C3/C4/C5 H9D-C3/C4/C5-75K-6B
10Klb N3 H9D-N3-10K-6B

Specification：

Accuracy class N3 OIML R60 C3 OIML R60 C4 OIML R60 C5
Output sensitivity ( = FS ) mV/V 3.0 ± 0.008
Maximum capacity ( Emax ) klb 1,1.5,2,2.5,4,5,10,15 20,25,35,50,75
Maximum number of load cell intervals ( nLC ) 3000 4000 5000
Ratio of minimum LC verification interval Y = Emax / vmin 10000 15000 20000
Combined error %FS ± 0.023 ± 0.0175 ± 0.0140
Minimum dead load of Emax 0 %
Safe overload of Emax 150 %
Ultimate overload of Emax 300 %
Zero balance %FS ± 1.0
Excitation, recommended voltage V 5 ~ 12( DC )
Excitation maximum V 18( DC )
Input resistance Ω 700 ± 7
Output resistance Ω 703 ± 4
Insulation resistance MΩ ≥ 5000 ( 50VDC )
Compensated temperature ℃ -10 ~+40
Operating temperature ℃ -35 ~ +65
Storage temperature ℃ -40 ~ +70
Element material Nickel plated alloy steel
Ingress protection (according to EN 60529) IP67
ATEX classification (optional) II1G Ex ia IIC T4 II1D Ex iaD 20 T73℃ C II3G Ex nL IIC T4



Wiring：

◎Shielded, 4 conductor cable；

◎Cable diameter: Φ5mm；

◎Standard cable length: 6m；

◎Shield not connected to element；
