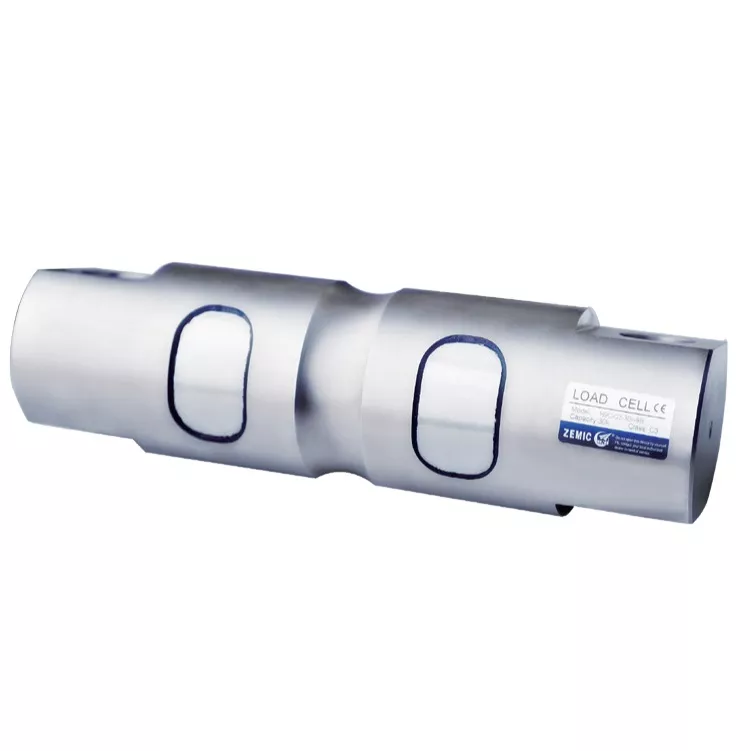

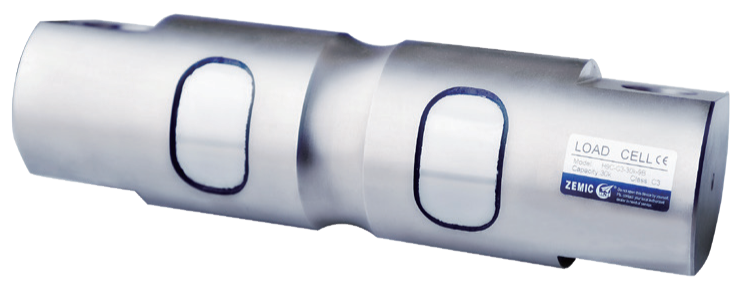

H9C Load Cell Zemic Shear Beam Load Cell

Product Description


Short Description:

◎Nickel plated alloy steel IP67 dual shear beam load cell；

◎High accuracy；

◎Suitable for truck and track scales and other heavy weighing devices；

◎Sealed construction；

Available models：

Capacity Accuracy Full article description Capacity Accuracy Full article description
5Klb C3/C4 H9C-C3/C4-5K-9B 50 Klb C3 H9C-C3-50K-9B
10Klb C3/C4 H9C-C3/C4-10K-9B 60 Klb C3 H9C-C3-60K-9B
15Klb C3/C4 H9C-C3/C4-15K-9B 75 Klb C3 H9C-C3-75K-9B
20Klb C3 H9C-C3-20K-9B 100 Klb C3 H9C-C3-100K-9B
30Klb C3 H9C-C3-30K-9B 150 Klb C3 H9C-C3-150K-9B
40Klb C3 H9C-C3-40K-9B 200 Klb C3 H9C-C3-200K-9B
250 Klb C3 H9C-C3-250K-9B

Specification：

Accuracy class OIML R60 C3 OIML R60 C4
Output sensitivity ( = FS ) mV/V 3.0 ± 0.003
Maximum capacity ( Emax ) klb 5, 10, 20, 30, 40, 50, 60,75, 100, 150, 200, 250 5, 10, 20
Maximum number of load cell intervals ( nLC ) 3000 4000
Ratio of minimum LC verification interval Y = Emax / vmin 10000 12000
Combined error %FS ± 0.0230 ± 0.0175
Minimum dead load of Emax 0 %
Safe overload of Emax 150 %
Ultimate overload of Emax 300 %
Zero balance %FS ± 1.0
Excitation, recommended voltage V 5 ~ 12( DC )
Excitation maximum V 18( DC )
Input resistance Ω 700 ± 7
Output resistance Ω 703 ± 4
Insulation resistance MΩ ≥ 5000 ( 50VDC )
Compensated temperature ℃ -10 ~+40
Operating temperature ℃ -35 ~ +65
Storage temperature ℃ -40 ~ +70
Element material Nickel plated alloy steel
Ingress protection (according to EN 60529) IP67
ATEX classification (optional) II1G Ex ia IIC T4 II1D Ex iaD 20 T73℃ C II3G Ex nL IIC T4

Dimensions in mm：


Dimension
Capacity		 A C H G ΦD J Φd R E
5Klb, 10Klb 206.2 174.6 133.1 15.7 43.2 28.4 16.7 R12.7
(0.5)		 15.7
(8.12) (6.88) (5.24) (0.62) (1.70) (1.12) (0.66) (0.62)
15Klb, 20Klb 206.2 174.6 133.1 21.3 49.5 28.4 16.7 R12.7
(0.5)		 15.7
(8.12) (6.88) (5.24) (0.84) (1.95) (1.12) (0.66) (0.62)
30Klb, 75Klb 260.4 215.9 165.1 25.4 76.2 60.2 26.9 R25.4
(1.0)		 22.4
(10.25) (8.50) (6.50) (1.00) (3.00) (2.37) (1.06) (0.88)
90Klb, 100Klb 285.8 241.3 190.2 31 88.9 63.5 26.9 R38.1
(1.5)		 22.4
(11.25) (9.50) (7.49) (1.22) (3.50) (2.50) (1.06) (0.88)
150Klb 285.8 241.3 190.2 31 99.1 71.1 26.9 R38.1
(1.5)		 22.4
(11.25) (9.50) (7.49) (1.22) (3.90) (2.80 (1.06) (0.88)
200Klb,250Klb 408.9 330.2 254 31.7 136.6 116.8 39.6 R50.8
(2.0)		 39.4
(16.10) (13.00) (10.00) (1.25) (5.38) (4.60) (1.56) (1.55)



Wiring：

◎Shielded, 4 conductor cable；

◎Cable diameter for 5k – 20k:Φ5mm and for 30k – 250k: Φ8mm；

◎Standard cable length: 9m；

◎Shield not connected to element；
