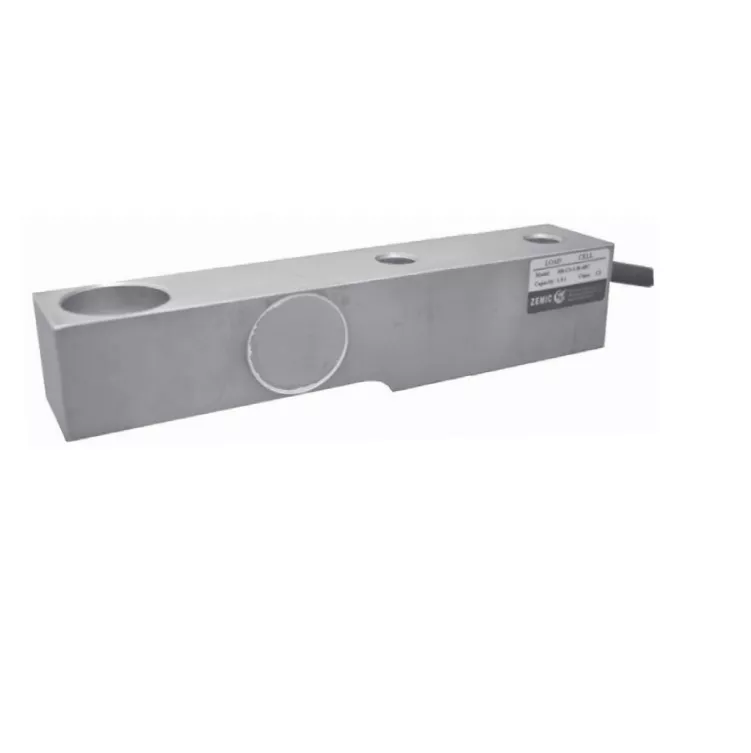

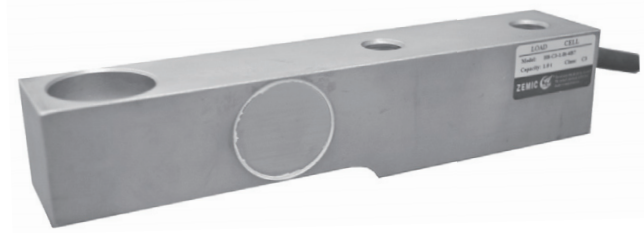

H8 Nickel Plated Alloy Steel ZEMIC Shear Beam Load Cell

Product Description


Short Description:

◎Nickel plated alloy steel IP67 shear beam load cell；

◎Suitable for truck-, track and hopper scales；

◎Suitable for hazardous locations；

Available models：

Capacity Accuracy Full article description Capacity Accuracy Full article description
500kg C3 Excluded from OIML H8-C3-500kg-4B6 10t C3 H8-C3-10t-4B6
1t C3 Excluded from OIML H8-C3-1t-4B6 15t C3 H8-C3-15t-4B6
2t C3 Excluded from OIML H8-C3-2t-4B6 20t C3 H8-C3-20t-4B6
2.5t C3 Excluded from OIML H8-C3-2.5t-4B6 25t C3 H8-C3-25t-4B6
3t C3 Excluded from OIML H8-C3-3t-4B6 30t C3 H8-C3-30t-4B6
5t C3 H8-C3-5t-4B6 50t C3 H8-C3-50t-4B6

Specification：

Accuracy class C3 OIML R60 C3
Output sensitivity ( = FS ) mV/V 2.0 ± 0.002
Maximum capacity ( Emax ) t 0.5, 1, 2, 2.5, 3 5, 10, 15, 20 25, 30, 50
Maximum number of load cell intervals ( nLC ) 3000
Ratio of minimum LC verification interval Y = Emax / vmin 10000
Combined error %FS ± 0.023
Minimum dead load of Emax 0%
Safe overload of Emax X150 %
Ultimate overload of Emax 300 %
Zero balance %FS ± 1.5
Excitation, recommended voltage V 5 ~ 12( DC )
Excitation maximum V 18( DC )
Input resistance Ω 350 ± 3.5
Output resistance Ω 351 ± 2
Insulation resistance MΩ ≥ 5000 ( 50VDC )
Compensated temperature ℃ -10 ~+40
Operating temperature ℃ -35 ~ +65
Storage temperature ℃ -40 ~ +70
Element material Nickel plated alloy steel
Recommended torque on fixation N.m M12: 75  M14:120  M20:450  M27:1075  M33:1975
Ingress protection (according to EN 60529) IP67
ATEX classification (optional) II1G Ex ia IIC T4 II1D Ex iaD 20 T73℃ II3G Ex nL IIC T4

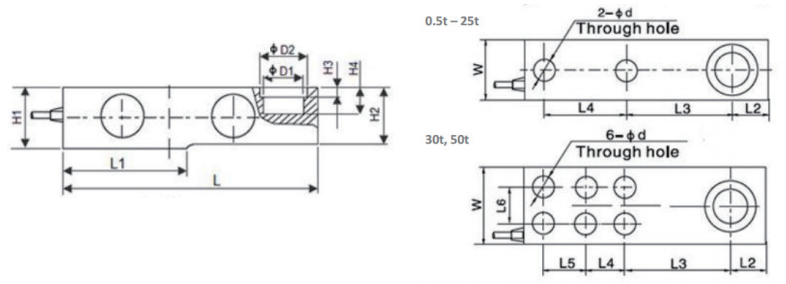

Dimensions in mm：


Capacity
Dimension		 0.5t-2t 2.5t 3t 5t 10t 15t 20t,25t 30t 50t
H1 43

(1.69)

 43

(1.69)

 43

(1.69)

 52

(2.05)

 67

(2.64)

 67

(2.64)

 82.5

(3.25)

 115

(4.53)

 143

(5.63)
H2 37

(1.46)

 37

(1.46)

 37

(1.46)

 48

(1.89)

 60

(2.36)

 60

(2.36)

 70

(2.76)

 90

(3.54)

 100

(3.94)
H3 12.5

(0.49)

 12.5

(0.49)

 12.5

(0.49)

 12.5

(0.49)

 8.5

(0.33)

 8.5

(0.33)

 10

(0.39)

 14

(0.55)

 14

(0.55)
ΦD1 16 (0.63) 16 (0.63) 16 (0.63) 22 (0.87) 32 (1.26) 32

(1.26)

 38

(1.50)

 38

(1.50)

 44

(1.73)
ΦD2 32 (1.26) 32 (1.26) 32 (1.26) 38 (1.50) 48 (1.89) 54

(2.13)

 54

(2.13)

 54

(2.13)

 60

(2.36)
Φd 13 (0.51) 15 (0.59) 15 (0.59) 21 (0.83) 28 (1.10) 28

(1.10)

 34

(1.34)

 26

(1.02)

 29

(1.14)
W 37 (1.46) 37 (1.46) 37 (1.46) 48 (1.89) 60

(2.36)

 60

(2.36)

 70

(2.76)

 96

(3.78)

 105 (4.13)
L 203

(7.99)

 203

(7.99)

 203

(7.99)

 235

(9.25)

 279

(10.98)

 279

(10.98)

 318

(12.51)

 374

(14.72)

 416 (16.38)
L1 95

(3.74)

 95 (3.74) 95 (3.74) 110 (4.33) 133 (5.24) 133

(5.24)

 153

(6.02)

 189 (7.44) 210 (8.27)
L2 22 (0.87) 22 (0.87) 22 (0.87) 22 (0.87) 32 (1.26) 32

(1.26)

 38

(1.50)

 44.5 (1.75) 48

(1.89)
L3 98 (3.86) 98 (3.86) 98 (3.86) 124 (4.88) 140 (5.51) 140

(5.51)

 159

(6.26)

 181 (7.13) 196 (7.72)
L4 64 (2.52) 64 (2.52) 64 (2.52) 66 (2.60) 82 (3.23) 82

(3.23)

 89

(3.50)

 76

(2.99)

 92

(3.62)
L5 – – – – – – – 51(2.01) 56(2.20)
L6 – – – – – – – 46(1.81) 52(2.05)

Wiring：

◎Shielded, 6 conductor cable；

◎Cable diameter: Φ6.2mm；

◎Standard cable length for 0.5t – 2t: 4m, for 5t: 6.5m and for 10t – 50t:12m；

◎Shield in not connected to the element；
