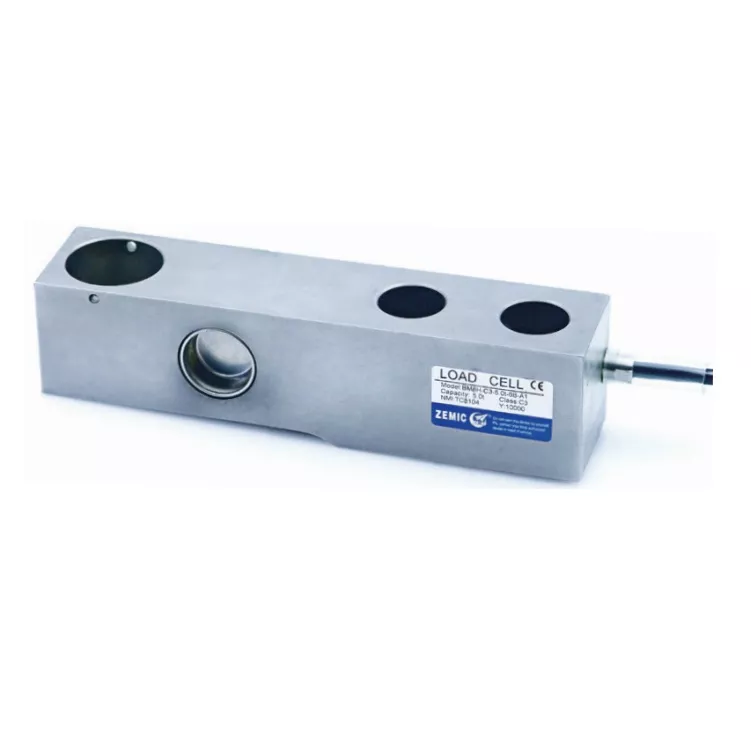

BM8H Shear Beam Load Cell Stainless Steel Load Cell

Product Description


Short Description:

◎Stainless steel IP68 shear beam load cell；

◎Hermetically sealed；

◎Suitable for hopper, platform and pallet scales；

◎High accuracy；

◎Current calibrated (sc-option)；

Available models：

Capacity Accuracy Full article description
500kg C3 BM8H-C3-500kg-3B-A1
1t C3 BM8H-C3-1t-3B-A1
1.5t C3 BM8H-C3-1.5t-3B-A1
2t C3 BM8H-C3-2t-3B-A1
3t C3 BM8H-C3-3t-3B-A1
5t C3 BM8H-C3-5t-3B-A1

Specification：

Accuracy class OIML R60 C3
Output sensitivity(=FS) mV/V 2.0±0.002
Maximum capacity ( Emax) t 0.5,1,1.5,2,3,5
Maximum number of load cell intervals (nLC) 3000
Ratio of minimum LC verification interval Y = Emax / Vmin 10000
Combined error %FS ±0.023
Minimum dead load of Emax 0
Safe overload of Emax 1.5
Ultimate overload of Emax 3
Zero balance %FS ±1.0
Excitation, recommended voltage V 0)5~12(DC)
Excitation maximum V 18(DC)
Input resistance Ω 350±3/1000±10
Output resistance Ω 350 ±3/1000 ±10
Insulation resistance MΩ ≥ 5000(50VDC)
Compensated temperature ℃ -10~+40
Operating temperature ℃ -35~+65
Storage temperature ℃ -40~+70
Element material Stainless steel
Recommended torque on fixation N.m M12:100    M20:500
lngress protection (according to EN 60529) IP68
ATEX classification (optional) Ⅱ1G Ex ia ⅡC T4 Ⅱ1D Ex iaD 20 T73℃ Ⅱ3G Ex nL ⅡC T4

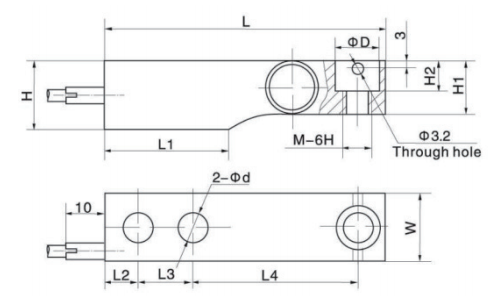

Dimensions in mm：


Capacity
Dimension		 500kg 1.0t 1.5t,2.0t 2.5t,3.0t 5.0t
L 130.0(5.12) 130.0 (5.12) 130.0(5.12) 172.0 (6.77) 172.0(6.77)
L1 57.1(2.25) 57.1(2.25) 57.1(2.25) 76.2 (3.0) 76.2(3.0)
L2 15.5(0.62) 15.5(0.62) 15.5(0.62) 19.1(0.75) 19.1(0.75)
L3 25.4(1.0) 25.4 (1.0) 25.4 (1.0) 38.1(1.5) 38.1(1.5)
L4 76.2(3.0) 76.2 (3.0) 76.2(3.0) 95.3(3.75) 95.3(3.75)
H 31.8(1.25) 31.8(1.24) 35.9(1.41) 44 (1.72) 44(1.72)
H1 26.0(1.02) 27.95 (1.10) 31.95(1.26) 36 (1.42) 40(1.57)
H2 14.2(0.55) 14.2 (0.55) 14.2(0.55) 20(0.78) 20 (0.78)
W 31.8(1.24) 31.8(1.24) 31.8(1.24) 38 (1.48) 38 (1.48)
D 20.5(0.81) 20.5 (0.81) 20.5(0.81) 30.2 (1.19) 30.2(1.19)
d 13(0.51) 13 (0.51) 13 (0.51) 20.5(0.81) 20.5(0.81)
M M12 M12 M12 M20 M20

Wiring：

◎Shielded, 6 conductor cable and 4 conductor cable for all capacities；

◎Cable diameter: Φ5mm；

◎Standard cable length for 500kg – 1t: 3m and for 2t – 5t: 6m；

◎Shield not connected to element；
